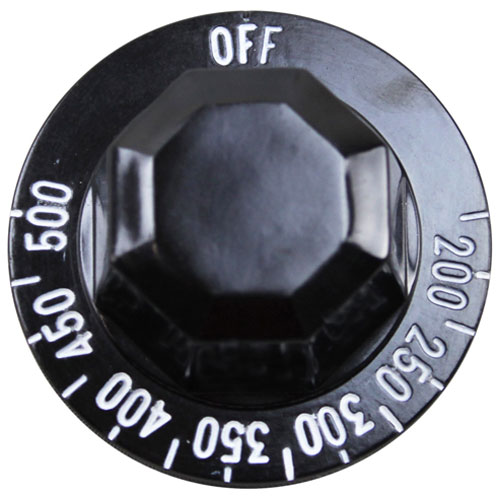

American Range A32005 Dial 2 D OFF-200-500°F

SKU: A32005 1-A32005 Brand:
American Range
Availability:
In Stock
(2)
$16.30 Price reduced from $21.17
Save $4.87
Have a Question? +1 (866) 863-0907

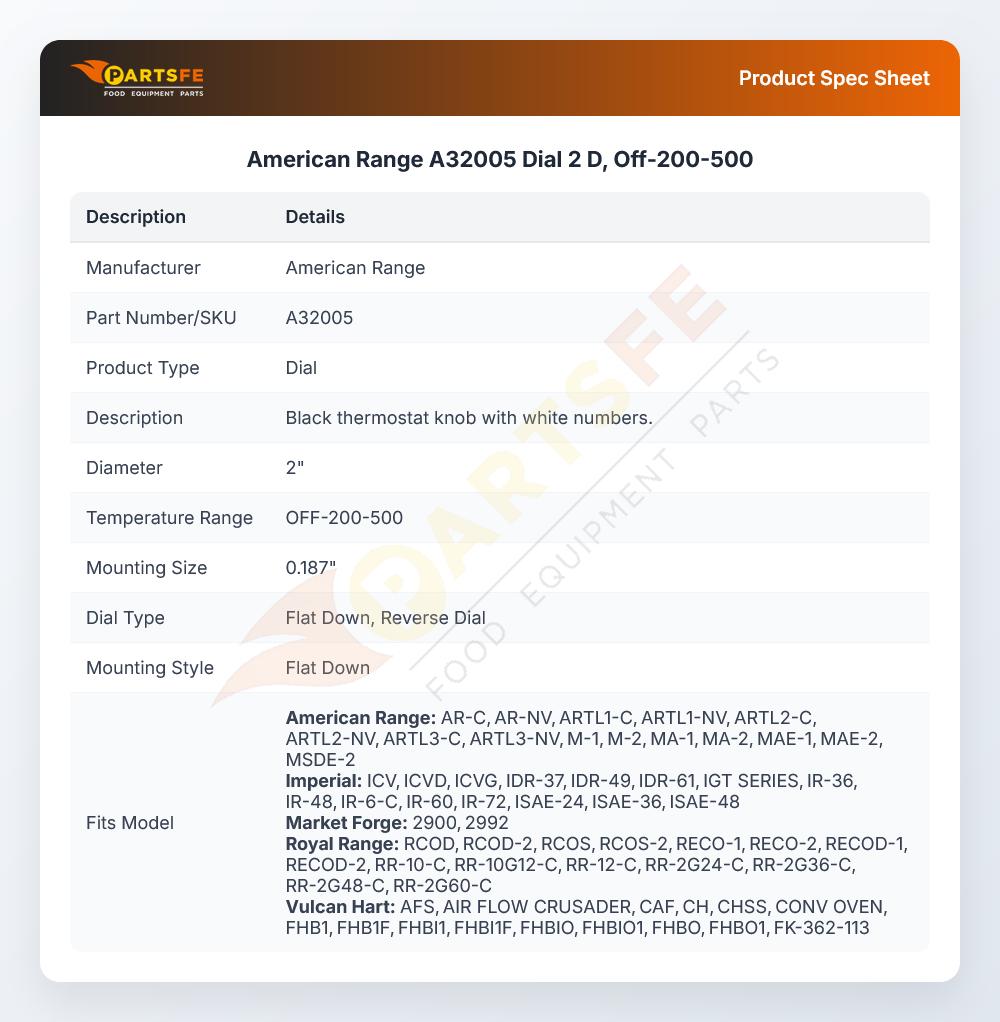

Specifications:

  • Black T'Stat Knob W/ White Numbers
  • [ 2" Dia ] [ Off-200-500] [Mount .187] [Flat Down]
  • Reverse Dial
  • American Range Ar-C, M1
  • Imperial Oven Series: Icv, Icvd, Ir W/Convection Oven.
  • Jade Oven Jco
  • Tri-Star Tscv
  • Wolf Oven Afs, Caf, Ch & Chss W/Elec Ignition,
  • H, Kafs, Kcaf, Kch, Kchr, Kchss, Kf, Kfs, Kh, Xch, Xfs.
  • *Models H & Kh - T'Stat For Cook Only

Description

The American Range A32005 Dial 2" DIA OFF-200-500°F is a thermostat part that regulates the amount of energy that flows to heating components of the appliance. It works on a rotary system where it can be selected to be on or off. This dial is mounted on the front control panel. The positioning is such that it is in direct contact with the user interface and the heating elements can react to the position of the dial chosen without interfering with the normal operation of the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 4.5 in
  • Height: 1 in
  • Width: 3.25 in

This Part Fits the Following Models

100 models
American Range AR-C American Range AR-NV American Range ARTL1-C American Range ARTL1-NV American Range ARTL2-C American Range ARTL2-NV American Range ARTL3-C American Range ARTL3-NV American Range M-1 American Range M-2 American Range MA-1 American Range MA-2 American Range MAE-1 American Range MAE-2 American Range MASDE-1 American Range MASDE-2 American Range ME-1 American Range ME-2 American Range MSD-1 American Range MSD-2 American Range MSDE-1 American Range MSDE-2 American Range SAG Imperial ICV Imperial ICVD Imperial ICVG Imperial IDR-37 Imperial IDR-49 Imperial IDR-61 Imperial IGT SERIES Imperial IR-36 Imperial IR-48 Imperial IR-60 Imperial IR-6-C Imperial IR-72 Imperial ISAE-24 Imperial ISAE-36 Imperial ISAE-48 Imperial ISAE-60 Imperial ISAE-72 Imperial ISCE-24 Imperial ISCE-36 Imperial ISCE-48 Imperial ISCE-60 Imperial ISCE-72 Market Forge 2900 Market Forge 2992 Royal Range RCOD Royal Range RCOD-2 Royal Range RCOS Royal Range RCOS-2 Royal Range RECO-1 Royal Range RECO-2 Royal Range RECOD-1 Royal Range RECOD-2 Royal Range RR-10-C Royal Range RR-10G12-C Royal Range RR-12-C Royal Range RR-2G24-C Royal Range RR-2G36-C Royal Range RR-2G48-C Royal Range RR-2G60-C Royal Range RR-4-36-C Royal Range RR-4G12-C Royal Range RR-4G24-C Royal Range RR-4G36-C Royal Range RR-4G48-C Royal Range RR4RG12-C Royal Range RR-6-C Royal Range RR-6G12-C Royal Range RR-6G24-C Royal Range RR-6G36-C Royal Range RR-6RG24-C Royal Range RR-6SU-C Royal Range RR-8-C Royal Range RR-8G12-C Royal Range RR-8G24-C Royal Range RR-8SU-C Royal Range RR-G36-C Royal Range RR-G48-C Royal Range RR-G60-C Royal Range RR-G72-C Vulcan Hart AFS Vulcan Hart AIR FLOW CRUSADER Vulcan Hart CAF Vulcan Hart CH Vulcan Hart CHSS Vulcan Hart CONV OVEN Vulcan Hart FHB1 Vulcan Hart FHB1F Vulcan Hart FHBI1 Vulcan Hart FHBI1F Vulcan Hart FHBIO Vulcan Hart FHBIO1 Vulcan Hart FHBO Vulcan Hart FHBO1 Vulcan Hart FK361 Vulcan Hart FK362 Vulcan Hart FK-362-113 Vulcan Hart FK-362-23
Showing of 100.0

AMERICAN RANGE:

-10411 -A32005 10411

GARLAND:

224065

HOBART:

00-718224 18224 718224

IMPERIAL:

-1161 1161 IMP1161

JADE RANGE:

-300-186-000 -300186000 -3029800000 300-186-000 300186000 3029800000

MARKET FORGE:

-93-0024 93-0024

ROYAL RANGE:

2523

U-LINE:

40-388

VULCAN HART:

-00-718224 -18224 -718224 00-718224 18224 718224

Step1: Ensure the appliance is powered off.

Step2: Pull the old dial straight off the control shaft.

Step3: Align the new dial with the shaft fitting.

Step4: Push it firmly into place until snug.

Step5: Rotate to confirm smooth movement.

Step6: Restore power and verify the correct settings response.

  • What maintenance is required for the American Range A32005 Dial?

    Keep the dial clean and free from grease or debris to ensure clear visibility of markings. Inspect for cracks or fading. Ensure it is securely attached to the control shaft. Avoid using abrasive cleaners that may damage the surface.

  • What are common issues with the American Range A32005 Dial?

    • Faded or worn temperature markings.
    • Dial becoming loose on the control shaft.
    • Cracking or damage to the dial surface.
    • Inaccurate alignment with temperature settings.
