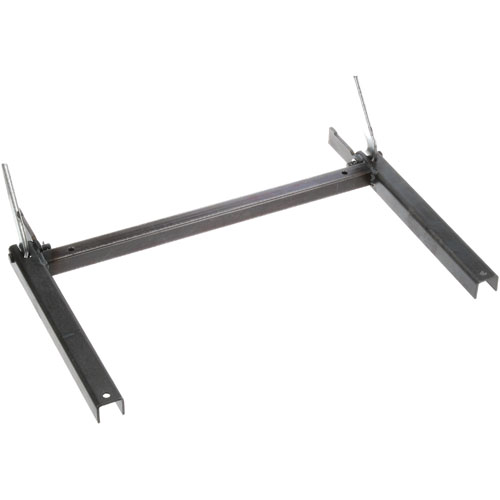

Imperial 20160 20" Oven Door Closing Mechanism

Door Closing Operation:
Provides controlled mechanical movement as the oven door transitions toward the closed position. The mechanism works with the connected door hardware to regulate movement and reduce uncontrolled motion during operation. Consistent mechanical action helps maintain predictable door travel and supports proper engagement with the oven frame when the door reaches the closed position.

Closing Force Control:
Helps regulate the mechanical force transferred through the door hardware during closing, controlling door movement to reduce abrupt motion and support smoother operation. Consistent force control helps the door move predictably as it approaches the oven frame while reducing unnecessary stress on connected mechanical components. Wear, loose hardware, bent components, or mechanical obstruction can change the required closing force and may result in uneven or excessive door movement.

Replacement Guidelines:
Replacement of the Convection Oven Door Closing Mechanism if it is damaged, bent, deformed, worn, loose, or no longer provides proper door closing and positioning. The part number 20160, 20" size, and convection oven door closing mechanism configuration should be verified before replacement to ensure the correct mechanism is selected. Replace the mechanism if deterioration affects door movement, closing, alignment, positioning, or normal oven operation.

Common Failure Symptoms:

• Door movement becomes uneven.
• Closing action becomes inconsistent.
• Excessive movement or play in the mechanism.
• Visible bending or physical damage.
• Loose mechanical connections.
• Door does not return smoothly to the closed position.

Equipment Compatibility:
The Imperial 20160 Door Closing Mechanism is designed for compatible Imperial convection oven applications requiring this 20-inch configuration. Verify the equipment model, part number, mechanism size, and door hardware specifications before purchase.

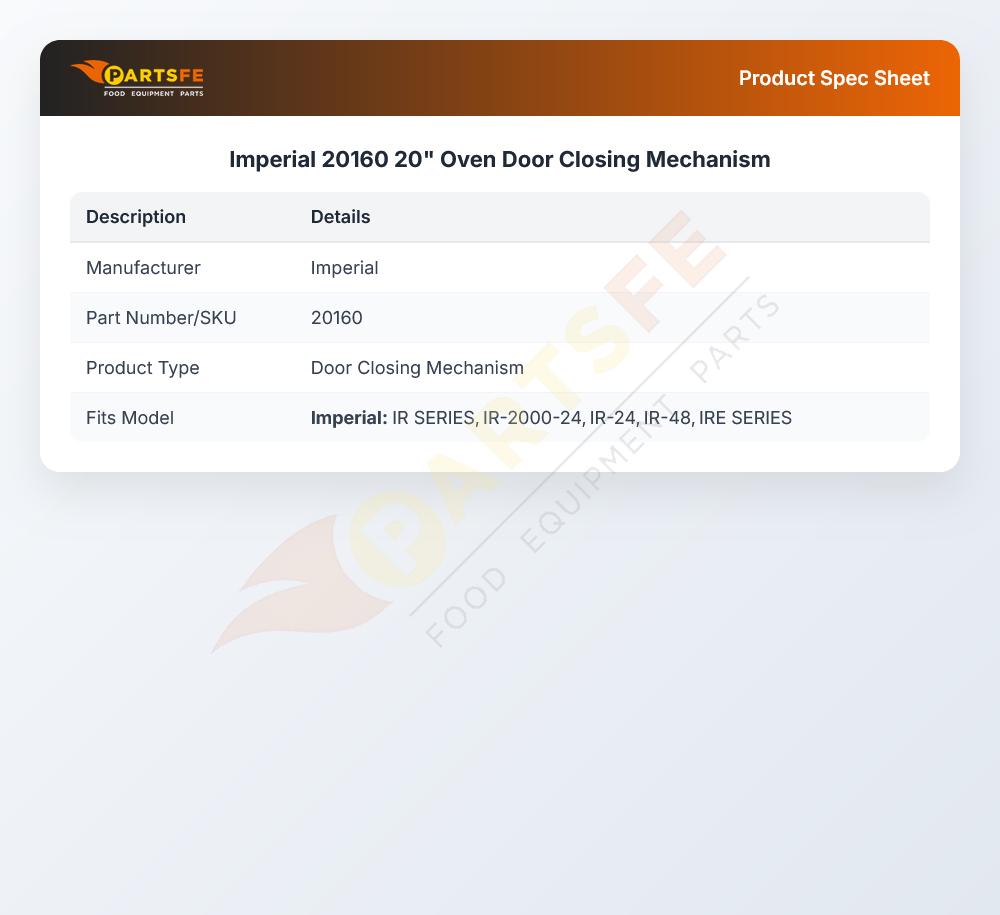

Technical Specifications:
Brand: Imperial
Part Number: 20160
Component Name: Door Closing Mechanism
Appliance Type: Commercial Convection Oven

Step1: Turn off the oven and unplug it for safety.

Step2: Open the oven door and support it to prevent sudden movement.

Step3: Remove the old closing mechanism by unscrewing the mounting points.

Step4: Align the new mechanism in place, matching screw holes.

Step5: Secure the mechanism with screws, ensuring it moves smoothly.

Step6: Test door closing to confirm proper tension and alignment.

• What maintenance is required for the Imperial 20160 Door Closing Mechanism?

  Regularly clean the mechanism to prevent grease and debris buildup, which can hinder smooth operation. Lubricate moving parts with a high-temperature grease to reduce wear. Check for loose screws and ensure proper alignment to avoid uneven closing.

• What are common issues with the Imperial 20160 Door Closing Mechanism?

  • Door not closing fully or evenly
  • Squeaking or noisy operation
  • Springs or hinges becoming loose or worn
  • Difficulty in latching securely.

• What does the Imperial 20160 door closing mechanism do?

  It controls the mechanical movement of the convection oven door as it moves toward the closed position, helping provide smooth and consistent door operation.

• What are signs of a worn door closing mechanism?

  Common signs include uneven door movement, excessive play, binding, unusual closing resistance, loose connections, or visible physical damage.

• Can a damaged door closing mechanism affect oven door alignment?

  Yes. Wear or deformation in the mechanism can change the door's movement path and affect how the door sits when closed.

• Why can an oven door become difficult to close?

  Worn mechanical components, bent hardware, loose mounting points, or obstruction within the door movement path can increase closing resistance.

• When should the Imperial 20160 Convection Oven Door Closing Mechanism be replaced?

  The door closing mechanism should be replaced when it is worn, damaged, loose, or no longer allows the oven door to close and remain securely positioned.
