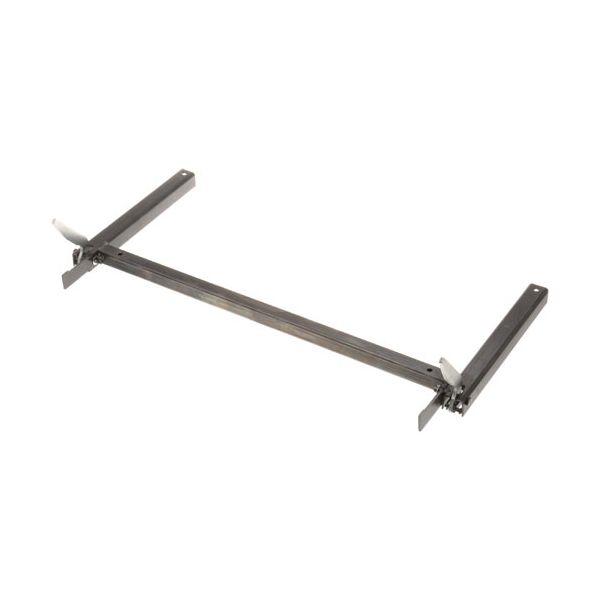

Imperial 20161 26-1/2" Oven Door Closing Mechanism 27-3/8" X 14-1/2"

Door Movement Control:
Regulates the mechanical movement of the oven door throughout its opening and closing range. The mechanism guides door travel and helps control the force and movement required to return the door toward its intended closed position. Smooth mechanical operation supports easier door handling and consistent movement during routine equipment use.

Repeated-Cycle Performance:
Designed to support repeated opening and closing cycles during routine commercial oven operation. Consistent mechanical movement helps maintain predictable door handling and reduces interruptions caused by restricted or irregular door travel.

Replacement Guidelines:
Replace the Range Door Closing Mechanism if it is damaged, bent, deformed, worn, loose, or no longer provides proper door closing and positioning. The part number 20161, IR Series configuration, and dimensions 26-1/2" × 27-3/8" × 14-1/2" should be verified before replacement to ensure the correct door closing mechanism is selected. Replace the mechanism if deterioration affects door movement, closing, alignment, positioning, or normal range of operation.

Common Failure Symptoms:

• Range door does not move toward the closed position normally.
• Closing movement becomes uneven or inconsistent.
• Door does not remain in its intended closed position.
• Mechanical components show visible damage or deformation.
• Closing action becomes noticeably weaker than expected.

Equipment Compatibility:
The Imperial 20161 Range Door Closing Mechanism is intended for equipment requiring the specified IR Series door mechanism configuration. It supports controlled oven-door movement and proper positioning within the door assembly. Verify the equipment model, series, part number, and dimensions to ensure the mechanism matches the intended application.

Technical Specifications:
Brand: Imperial
Part Number: 20161
Product Name: Door Closing Mechanism
Equipment Type: Commercial Range
Series: IR Series

Step1: Ensure the oven is powered off and fully cooled.

Step2: Open the oven door and remove the old closing mechanism.

Step3: Carefully detach the mechanism from its mounting brackets.

Step4: Position the new mechanism in place and align with screw holes.

Step5: Test the door multiple times to confirm proper closing action.

• Is the Imperial 20161 Door Closing Mechanism durable and long-lasting?

  The Imperial 20161 Door Closing Mechanism is designed to be durable and withstand the demands of commercial kitchen environments. Regular maintenance and inspections can help ensure its longevity.

• Is maintenance required for the Imperial 20161 Door Closing Mechanism?

  While routine cleaning and lubrication can help maintain its functionality, refer to the product manual or Imperial's guidelines for specific maintenance instructions.

• Can I use the oven without a functioning door closing mechanism?

  A proper door-closing mechanism is important for safety and efficient cooking. Operating without it may affect oven performance and safety.

• What maintenance is required for the Imperial 20161 Door Closing Mechanism?

  Inspect the door springs and hinges for proper tension and smooth movement. Lubricate pivot points lightly if necessary. Check that the door aligns correctly with the frame to ensure full closure and consistent oven operation during use.

• What are common issues with the Imperial 20161 Door Closing Mechanism?

  • Door fails to close completely.
  • Uneven door movement.
  • Spring tension weakening over time.
  • Hinge sticking during operation.

• What does the Imperial 20161 door closing mechanism do?

  It guides and controls oven-door movement, helping the door open and close smoothly while supporting proper positioning.

• What can affect the operation of a door closing mechanism?

  Mechanical wear, damaged components, loose hardware, misalignment, or restricted movement can affect normal operation.

• Can door alignment affect the closing mechanism?

  Yes. Incorrect alignment can increase resistance during door movement and prevent the mechanism from operating through its intended travel range.

• What may indicate excessive wear in the door mechanism?

  Uneven movement, increased resistance, difficulty closing, unusual mechanical movement, or visible component damage may indicate wear.

• How does the Imperial 20161 Range Door Closing Mechanism keep the range door closed?

  It controls the door-closing movement and maintains the door in its intended closed position during normal range operation.
