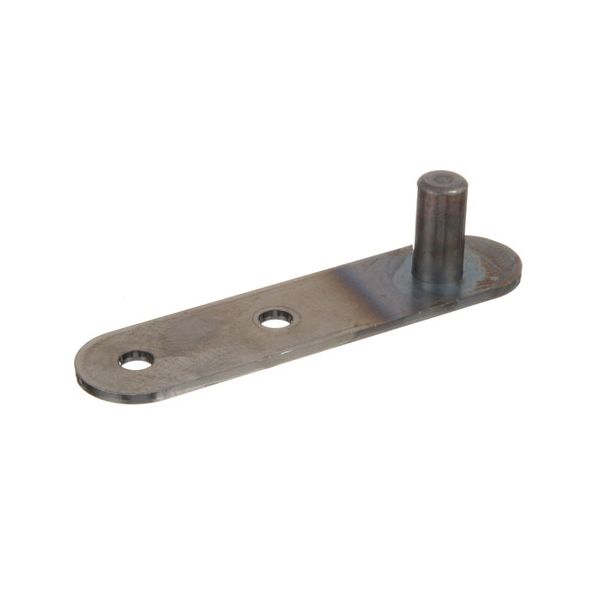

main product photo

Southbend 1180861 Range Door Hinge W/Pin 1" X 4-1/8" X 0.120"

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $49.81 Regular Price $83.23
In stock
SKU
1180861
Add to Wish List
Electrical & Hardware, Hinge Parts,
Manufacturer:
The Southbend 1180861 Range Door Hinge with Pin enables the door of the oven to swing easily and open and close under control. The hinge is inserted into the special slots on the door and frame, which hold the pin in place so that it does not move out of position. This hinge is designed to be installed on commercial ranges to support the door of the oven directly and give it the support to move and position itself correctly. The 1" x 4-1/8" X 0.120" size enables it to fit in the standard range set-ups.

Dimensions

  • Length: 4.25 In
  • Width: 1 In
  • Height: 1 In
  • Weight: 0.4 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1180861-door-hinge-w-pin-1-x-4-1-8-x-0-120-24130-2.jpg

Product Notes

  • Door Hinge, 1"W X 4-1/8"L X 0.120" Thick, W/Pin.
  • Southbend Oven Series 400,500
SOUTHBEND:
Reviews 3
Write Your Own Review
You're reviewing:Southbend 1180861 Range Door Hinge W/Pin 1" X 4-1/8" X 0.120"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Southbend 1180861 Door Hinge?

Regularly check the hinge for loose screws and tighten as needed. Apply lubricant to the pivot points to ensure smooth movement and prevent squeaking. Cleaning any accumulated debris assists maintain proper door alignment and efficient operation.

What are the common issues with the Southbend 1180861 Door Hinge?

  • Door sagging or misalignment.
  • Squeaking or noisy operation.
  • Loose or stripped hinge screws.
  • Rust or corrosion affecting movement.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off and disconnect power or gas to the appliance.

Step2: Support the door and remove screws from the old hinge.

Step3: Detach the door and remove the worn hinge from the frame.

Step4: Align the new hinge with mounting holes on the door and unit.

Step5: Secure tightly with screws, ensuring proper alignment.

Step6: Reattach the door and test for smooth operation.
