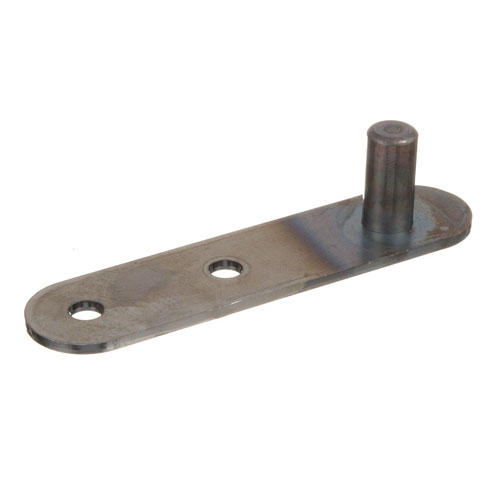

Southbend 1180861 Range Door Hinge W/Pin 1" X 4-1/8" X 0.120"

SKU: 1180861 1-1180861 Brand:
Southbend
Availability:
In Stock
(3)
$55.06 Price reduced from $87.40
Save $32.34
Have a Question? +1 (866) 863-0907

Specifications:

  • Door Hinge, 1"W X 4-1/8"L X 0.120" Thick, W/Pin.
  • Southbend Oven Series 400,500

Description

The Southbend 1180861 Range Door Hinge with Pin enables the door of the oven to swing easily and open and close under control. The hinge is inserted into the special slots on the door and frame, which hold the pin in place so that it does not move out of position. This hinge is designed to be installed on commercial ranges to support the door of the oven directly and give it the support to move and position itself correctly. The 1" x 4-1/8" X 0.120" size enables it to fit in the standard range set-ups.

Dimensions:

  • Weight: 0.4 lbs
  • Length: 4.25 in
  • Height: 1 in
  • Width: 1 in

SOUTHBEND:

SOU1180861

Step1: Turn off and disconnect power or gas to the appliance.

Step2: Support the door and remove screws from the old hinge.

Step3: Detach the door and remove the worn hinge from the frame.

Step4: Align the new hinge with mounting holes on the door and unit.

Step5: Secure tightly with screws, ensuring proper alignment.

Step6: Reattach the door and test for smooth operation.

  • What maintenance is required for the Southbend 1180861 Door Hinge?

    Regularly check the hinge for loose screws and tighten as needed. Apply lubricant to the pivot points to ensure smooth movement and prevent squeaking. Cleaning any accumulated debris assists maintain proper door alignment and efficient operation.

  • What are the common issues with the Southbend 1180861 Door Hinge?

    • Door sagging or misalignment.
    • Squeaking or noisy operation.
    • Loose or stripped hinge screws.
    • Rust or corrosion affecting movement.
