Genuine OEM Part

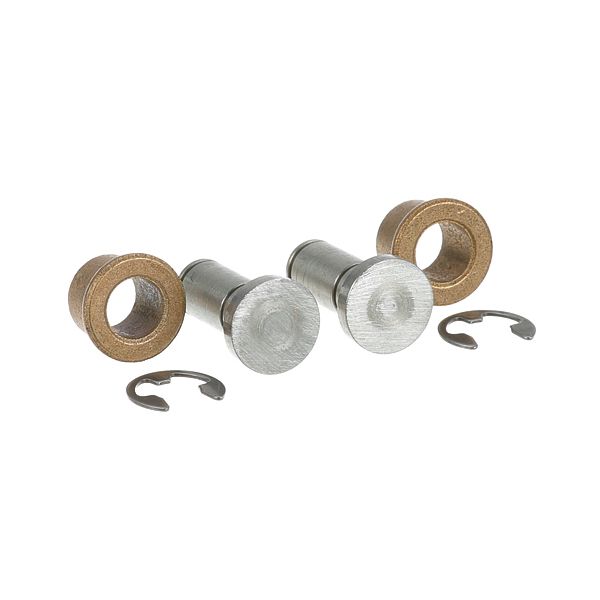

main product photo

Cleveland FK104077 Door Pin & Bushing Kit

Be the first to review this product
Special Price $39.34 Regular Price $42.95
In stock
SKU
FK104077
Add to Wish List
Plumbing Parts, Bearings & Bushings,
Manufacturer:
The Cleveland FK104077 Door Pin & Bushing Kit is a hardware part that is used in compatible commercial appliances. The pins and bushings included in this kit are pivot and wear points of oven doors, which allow the doors to move when opening and closing. These components are installed at the door hinge assembly, and they replace damaged parts to provide the proper alignment and movement. They are used as part of the door mechanism, which ensures safe access and stable work of professional kitchen equipment.

Dimensions

  • Length: 2 In
  • Width: 3.25 In
  • Height: 0.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/c/l/cleveland-fk104077-boilers-door-pin-bushing-kit-include-2-pins-2-bushings-2-e-clips-80710-2.jpg

Product Notes

  • Door Bushing Kit
  • Consists Of 2 Ea ( Door Pins, Bronze Bushings, E-Clips )
  • Cleveland Steamers / Boilers
  • Ultra 3, 5, 24Cgs10, 24Cgp10, 24Cea10
CLEVELAND:
Reviews
Write Your Own Review
You're reviewing:Cleveland FK104077 Door Pin & Bushing Kit
Your Rating
FAQS
Customer Questions
What maintenance is required for the Cleveland FK104077 Door Pin & Bushing Kit?

Inspect boilers door pin and bushing alignment regularly to ensure smooth boiler door operation. Apply high-temperature lubricant to reduce friction and prevent wear on moving parts. Tighten or replace e-clips if loosening is detected during routine safety checks.

What are common issues with the Cleveland FK104077 Door Pin & Bushing Kit?

  • Pin wear causing door misalignment.
  • Bushing degradation leading to increased friction.
  • E-clip loosening resulting in component displacement.
  • Door sticking or uneven movement during operation.
  • Noise from worn pins or bushings.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power supply and allow unit to cool completely.

Step2: Remove old door pin, bushings, and clips carefully using proper tools.

Step3: Align new bushings and insert pins into door assembly securely.

Step4: Fit clips to lock pins in place and ensure smooth door movement.

Step5: Restore power and test door operation.
