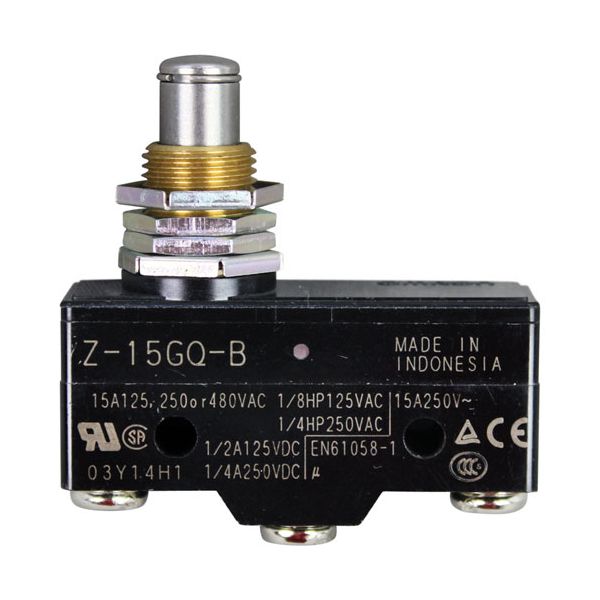

American Range A10003 Door Switch 15 AMP

Be the first to review this product
Special Price $45.49 Regular Price $76.00
In stock
SKU
A10003
Add to Wish List
Electrical & Hardware, Switches & Relays, Shop by manufacturers
Manufacturer:
The American Range A10003 Push Button Plunger Microswitch Door Switch is designed for use in fryers, particularly compatible with Majestic models. This high-quality switch handles 15 amps and comes with options of 125VAC, 250VAC, and 480VAC. It provides safe and efficient operation since it turns on when the fryer door is pushed, and provides a smooth operation and more safety measures. Due to its construction, it eliminates possible failures and damages, ensuring high reliability in the conditions of the kitchen. The provided switch is vital for the regulation of functions and protection of fryer systems.

Dimensions

  • Length: 2 In
  • Width: 0.75 In
  • Height: 0.75 In
  • Weight: 0.25 lbs
https://partsfe.com/media/catalog/product/a/m/american-range-a10003-door-switch-15-amp-30059-2.jpg

Product Notes

  • Push Button Plunger Microswitch Door Switch
  • 15A/125,250,480Vac
  • American Range Ar-C, Majestic
AMERICAN RANGE:
FRI-JADO INC:
ROYAL RANGE:
Reviews
Write Your Own Review
You're reviewing:American Range A10003 Door Switch 15 AMP
Your Rating
FAQS
Customer Questions
What maintenance is required for the American Range A10003 Door Switch?

Inspect the door switch regularly to ensure proper engagement and electrical contact. Clean any dirt or grease around the switch. Avoid excessive force when closing the door to prevent damage. Safe operation prevents heating issues and electrical faults.

What are common issues with the American Range A10003 Door Switch?

  • Appliance not activating when the door is closed.
  • Intermittent or unresponsive switch operation.
  • Electrical arcing or sparks.
  • Misalignment causing false door-open signals.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off power at breaker and unplug appliance to prevent electrical shock.

Step2: Remove access panel to reach the door switch assembly.

Step3: Disconnect wiring from the old switch, noting terminal positions for reference.

Step4: Install switch in the original mounting position and secure firmly.

Step5: Reconnect wires to correct terminals and tighten all connections securely.

Step6: Reassemble panel, restore power, and test door interlock operation carefully.
