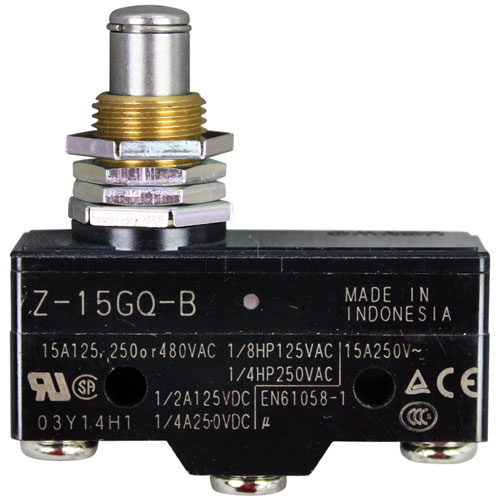

American Range A10003 Door Switch 15 AMP

SKU: A10003 1-A10003 Brand:
American Range
Availability:
In Stock
(0)
$47.88 Price reduced from $76.00
Save $28.12
Have a Question? +1 (866) 863-0907

Specifications:

  • Push Button Plunger Microswitch Door Switch
  • 15A/125,250,480Vac
  • American Range Ar-C, Majestic

Description

The American Range A10003 Push Button Plunger Microswitch Door Switch is designed for use in fryers, particularly compatible with Majestic models. This high-quality switch handles 15 amps and comes with options of 125VAC, 250VAC, and 480VAC. It provides safe and efficient operation since it turns on when the fryer door is pushed, and provides a smooth operation and more safety measures. Due to its construction, it eliminates possible failures and damages, ensuring high reliability in the conditions of the kitchen. The provided switch is vital for the regulation of functions and protection of fryer systems.

Dimensions:

  • Weight: 0.25 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 0.75 in

FRI-JADO INC:

3701233

ROYAL RANGE:

2519

Step1: Turn off power at breaker and unplug appliance to prevent electrical shock.

Step2: Remove access panel to reach the door switch assembly.

Step3: Disconnect wiring from the old switch, noting terminal positions for reference.

Step4: Install switch in the original mounting position and secure firmly.

Step5: Reconnect wires to correct terminals and tighten all connections securely.

Step6: Reassemble panel, restore power, and test door interlock operation carefully.

  • What maintenance is required for the American Range A10003 Door Switch?

    Inspect the door switch regularly to ensure proper engagement and electrical contact. Clean any dirt or grease around the switch. Avoid excessive force when closing the door to prevent damage. Safe operation prevents heating issues and electrical faults.

  • What are common issues with the American Range A10003 Door Switch?

    • Appliance not activating when the door is closed.
    • Intermittent or unresponsive switch operation.
    • Electrical arcing or sparks.
    • Misalignment causing false door-open signals.
