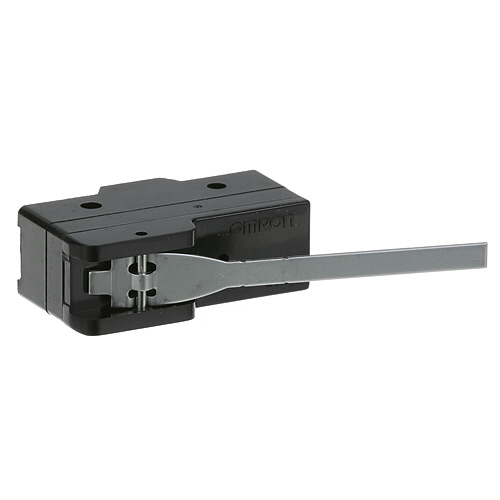

ROYAL RANGE 2539 Oven Door Switch

SKU: 2539 1-2539 Brand:
ROYAL RANGE
Availability:
In Stock
(0)
$63.60 Price reduced from $98.00
Save $34.40
Have a Question? +1 (866) 863-0907

Description

The ROYAL RANGE 2539 Oven Door Switch controls electrical processes within the system by detecting, whether it is in an open, or closed position during operation. It works through an internal contact mechanism, that activates or interrupts connected circuits, based on movement in compatible commercial cooking equipment. It is typically installed near the frame, or latch assembly where direct movement, with the door occurs during use. Designed for commercial kitchen applications it works alongside connected electrical, and safety systems to support monitored operation throughout routine cooking, and baking processes.

Dimensions:

  • Weight: 0.08 lbs
  • Length: 5 in
  • Height: 1 in
  • Width: 3 in

Detects the open and closed position of the oven door and provides a corresponding electrical switching signal to the control circuit. The ROYAL RANGE 2539 Oven Door Switch changes its electrical state as the door moves between the open and closed positions, allowing connected control functions to respond to door movement. The switch functions as part of the oven door sensing circuit for operations that depend on door position.

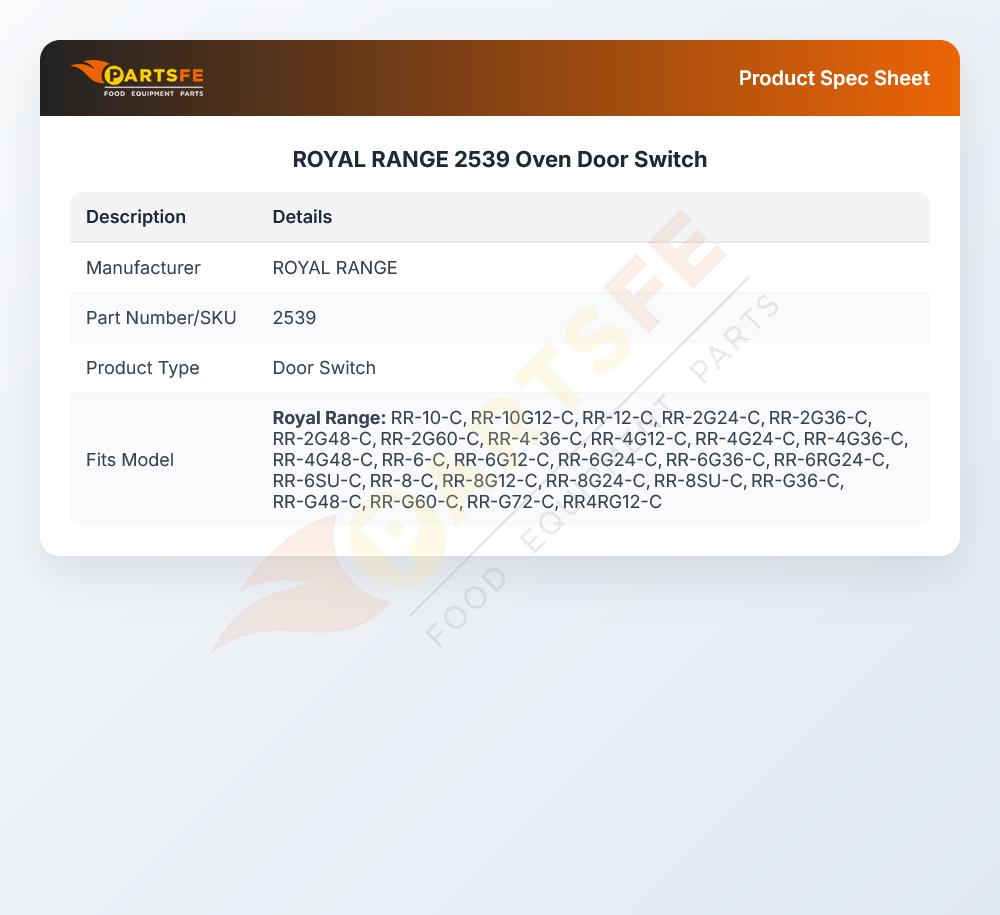

Equipment Compatibility:
Designed for use with compatible Royal Range commercial ovens requiring door position sensing, including RR-10-C, RR-10G12-C, RR-12-C, RR-2G24-C, RR-2G36-C, RR-2G48-C, RR-2G60-C, RR-4-36-C, and RR4RG12-C.

Product Specifications:
Manufacturer: ROYAL RANGE
SKU: 2539
Product Type: Door Switch
Application Type: Oven

Key Features:

  • Detects oven door position through electrical switching.
  • Changes circuit state as the door opens and closes.
  • Provides door-position input to connected oven control functions.
  • Supports equipment operations that depend on door status.

The door switch was affecting door position detection, and replacing it helped restore consistent switching response and door-dependent oven control functions.

LBC BAKERY EQUIPMENT:

30301-02

MARKET FORGE:

09-6431

Step1: Turn off power to the oven at the circuit breaker to prevent electrical shock.

Step2: Open the oven door and locate the existing door switch.

Step3: Disconnect the wiring harness from the old switch.

Step4: Remove the mounting screws and take out the old switch.

Step5: Position the new switch and secure it with screws.

Step6: Reconnect the wiring harness and ensure connections are secure.

Step7: Restore power and test the door switch operation.

  • What maintenance is required for the ROYAL RANGE 2539 Door Switch?

    Regularly inspect the switch for wear or damage and ensure it clicks properly when the door closes. Keep it free of grease or debris to prevent malfunction. Use a soft cloth for cleaning and avoid harsh chemicals to ensure secure oven operation.

  • What are common issues with the ROYAL RANGE 2539 Door Switch?

    • Oven not heating when the door is closed.
    • Intermittent or unresponsive switch activation.
    • Sparks or electrical arcing inside the switch.
    • Difficulty in latching or false door-open signals.
