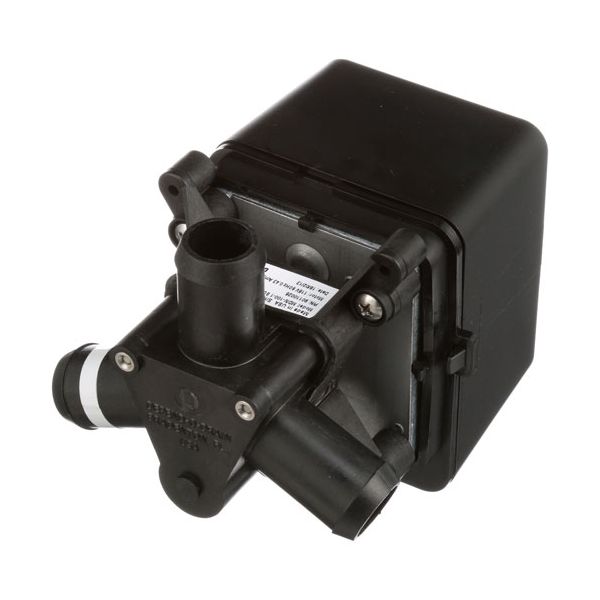

Controls wastewater drainage from the wash chamber during designated stages of the dishwashing cycle. The CMA Dishmachines 04113.00 Drain Valve regulates the drain passage by opening and closing according to the machine's operating sequence. Its 120V electrical configuration allows the valve to respond to the dishwasher's control signals during draining operation. By controlling when used water exits the machine, the valve supports proper drainage and helps maintain the intended sequence of washing, rinsing, and draining.
Water Flow Control:
Regulates the movement of used water through the dishwasher's drain pathway. When the drain cycle is activated, the valve opens to allow wastewater to leave the wash chamber or tank. When drainage is not required, the valve closes to retain water for the appropriate operating stage.
Drain Cycle Operation:
Operates according to the dishwasher's programmed cycle and control signals. During the designated drainage stage, the valve permits wastewater to exit the machine. Once the drain stage is completed, the valve closes so the equipment can continue with the next stage of operation.
Replacement Guidelines:
Replace the Drain Valve if it is damaged, cracked, corroded, leaking, or no longer controls drain flow properly. The part number 04113.00 and 120V electrical specification should be verified before replacement to ensure the correct drain valve is selected. Replace the valve if deterioration affects drainage, valve operation, connection integrity, or normal dish machine operation.
Common Failure Symptoms:
- Water does not drain properly from the dish machine.
- Drain valve remains open or closed when it should change state.
- Water leakage occurs around the valve.
- Drain operation becomes intermittent.
- Valve shows visible physical damage or deterioration.
Equipment Compatibility:
The CMA Dishmachines 04113.00 Drain Valve is designed for compatible CMA commercial dishwashing equipment requiring this valve configuration. Verify the applicable equipment model and manufacturer documentation before installation.
Technical Specifications:
Brand: CMA Dishmachines
Part Number: 04113.00
Component Name: Drain Valve
Voltage: 120V
