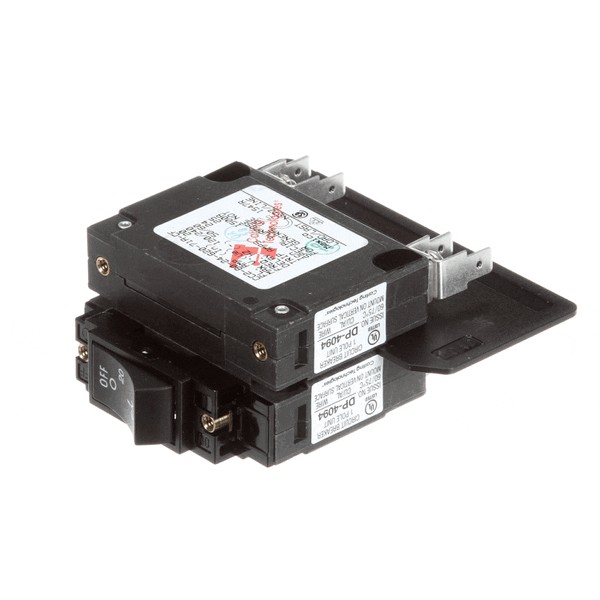

Duke 502812 Circuit Breaker/Switch 2-Pole 20A 120-240V

SKU: 502812 1-502812 Brand:
Duke
Availability:
In Stock
(0)
$274.73 Price reduced from $356.95
Save $82.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Type: Circuit Breaker Switch
  • Poles: 2-Pole
  • Voltage: 120/240V
  • Current Rating: 20A

Description

The Duke 502812 Circuit Breaker/Switch is an electrical switch that is used to control the flow of power in an appliance by automatically disconnecting the power once the current surpasses 20 amps to prevent overloading of components and wiring. Its 2-pole design can disconnect both lines of 120/240V circuits at the same time in case of faults. The breaker is mounted in the electrical panel/junction box of the oven and directly linked to the power supply of the unit and internal wiring. It works automatically to close and open the circuit when necessary to keep safe in normal cooking cycles.

This Part Fits the Following Models

2 models

Step1: Turn off main electrical supply and confirm no voltage.

Step2: Remove panel cover and identify an available compatible mounting slot for the breaker.

Step3: Mount the breaker firmly onto the bus bar until it locks in place.

Step4: Connect load and supply wires to terminals and tighten screws securely.

Step5: Ensure proper grounding and insulation of all connections before closing panel.

Step6: Replace cover, restore power, and test breaker operation carefully for safety.

  • What maintenance is required for the Duke 502812 Circuit Breaker/Switch?

    Inspect the circuit breaker regularly for signs of overheating, discoloration, or loose terminal connections to ensure safe electrical protection. Keep the breaker panel clean and dry to prevent dust or moisture-related faults. Test switching operation during routine maintenance to confirm proper trip and reset function.

  • What are common issues with the Duke 502812 Circuit Breaker/Switch?

    • Frequent tripping due to electrical overload conditions.
    • Breaker failing to reset after tripping.
    • Overheating caused by loose or corroded terminals.
    • Internal contact wear leading to inconsistent switching.
    • Physical damage or burn marks affecting safe operation.
