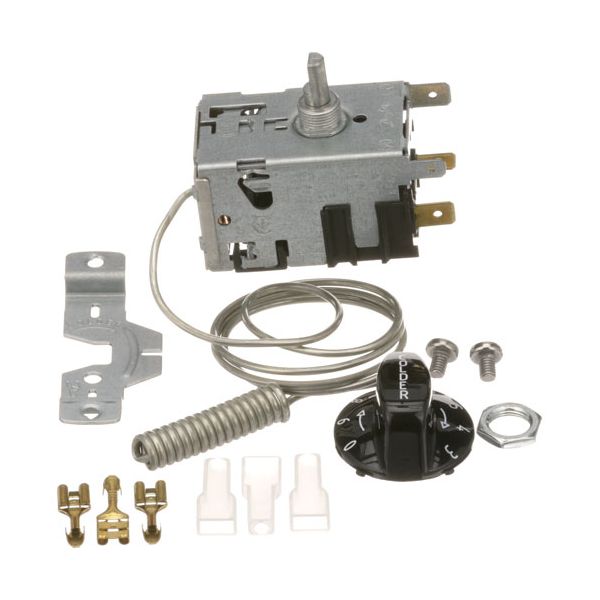

TRUE E800345 Freezer Control Temperature W/Dial Coiled Bulb 25" CAP
Special Price $232.29 Regular Price $357.93
In stock
SKU
E800345
Manufacturer:
The TRUE E800345 Freezer Control Temperature senses changes inside the system compartment and cycles the refrigeration system to maintain the selected temperature setting during operation. It regulates the cooling process through its thermostat mechanism and features a dial adjustment, a coiled sensing bulb, and a 25-inch capillary that respond to temperature fluctuations within the cabinet. Installed in the control housing, the sensing bulb extends into the freezer section while the control assembly connects to the refrigeration and electrical circuits. This temperature control is commonly used during regular maintenance to maintain system performance.
Dimensions
- Length: 3.5 In
- Width: 1.5 In
- Height: 4.5 In
- Weight: 0.2 lbs
Product Notes
- Freezer T'Stat, W/ Dial, Temp -25 To +8 F,
- Cut In -8 F, Cut Out -14 F
- Cap 25", W/ Coiled Bulb
- True Freezer T-24-Gc, T-36-Gc
