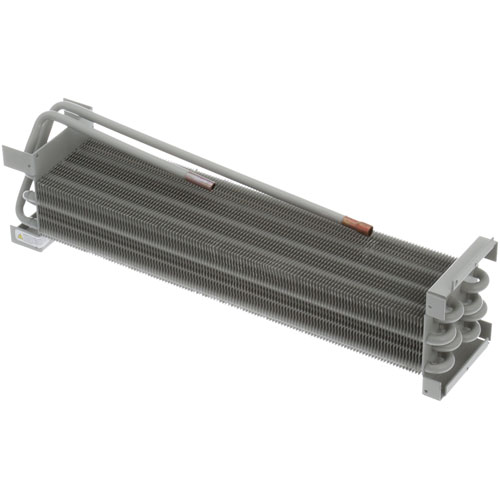

Delfield 3516095 Refrigerator Evaporator Coil 19" X 5" X 4"

SKU: 3516095 1-3516095 Brand:
Delfield
Availability:
In Stock
(0)
$355.66 Price reduced from $438.00
Save $82.34
Have a Question? +1 (866) 863-0907

Specifications:

  • Evaporator Coil, 19"L X 5"W X 4"H Od.
  • Delfield 186114 Ptb, 18648-Pdl, 18648-Ptb, 18648-Ptl,
  • 18648Ptb, 18672-Pdl, 18672-Ptl, 18691-Ptb, 18699-Ptb,
  • 18699-Ptl, 18699Buc, 18699Ptb, 18Sc39R, 6151, Dch-Bs-27L,
  • Dch-Bs-27R, Dch-Bs-58L, Dch-Ec-68R, Dch-Fs-48L,
  • Dch-Rb-45-38, Dch-Rb-45-40, Dch-Res-48 L, Dch-Res-48R,
  • Dch-Sc-55R, Dch-Scs-33L, Dch-Scs-33R, Dch-Sn-55R,
  • Dch-Tf-55L, Dch-Tf-55R, Dch-Ucr-75L, Dch-Ucr-75R, F15Mc48D,
  • F15Mc48N, F15Mc72D, F15Mc72N, F15Mr48D, F15Mr48N, F15Mr72D,
  • F15Mr72N, F15Pc48D, F15Pc48N, F15Pc72D, F15Pc72N, F15Pr48D,
  • F15Pr48N, F15Pr72D, F15Pr72N, F15Sc48D, F15Sc48N, F15Sc72D,
  • F15Sc72N, F15Sr48D, F15Sr48N, F15Sr72D, F15Sr72N, F17C110,
  • F17C52, F17C60, F17C68, F17C78, F17C87, F17C95, F17R102,
  • F17R44, F17R52, F17R60, F17R70, F17R79, F17R87, F18Dc60,
  • F18Dc68, F18Dc82, F18Dc91, F18Dc99, F18Dr44, F18Dr52,

Description

The Delfield 3516095 Refrigerator Evaporator Coil 19" x 5" x 4" operates by taking the heat from the inside of the appliance, which allows the refrigeration system to have a low temperature at all times. The coil is installed in the refrigeration compartment, which operates together with the compressor and condenser to circulate refrigerant and provide the cooling process. It is essential in the operation of maintaining the perishable items, maintaining the temperature and helping the overall efficiency.

Dimensions:

  • Weight: 3.22 lbs
  • Length: 21 in
  • Height: 5.5 in
  • Width: 6.5 in

Step1: Disconnect the power and empty the refrigerator for safety.

Step2: Remove the old evaporator coil carefully from its mounting.

Step3: Clean surrounding areas and inspect for damage or debris.

Step4: Position the new evaporator coil into the mounting bracket.

Step5: Connect the refrigerant lines and secure fittings properly.

Step6: Restore power and test the cooling function for proper operation.

  • What maintenance is required for the Delfield 3516095 Evaporator Coil?

    Regularly clean the coil to remove dust, debris, and frost buildup. Inspect for bent fins or corrosion that can reduce cooling efficiency. Ensure proper airflow around the coil to maintain consistent refrigerator temperature. Always disconnect power before performing maintenance.

  • What are common issues with the Delfield 3516095 Evaporator Coil?

    • Reduced cooling performance.
    • Frost or ice buildup on the coil.
    • Bent or damaged fins restricting airflow.
    • Leaks or corrosion in the coil tubing.
