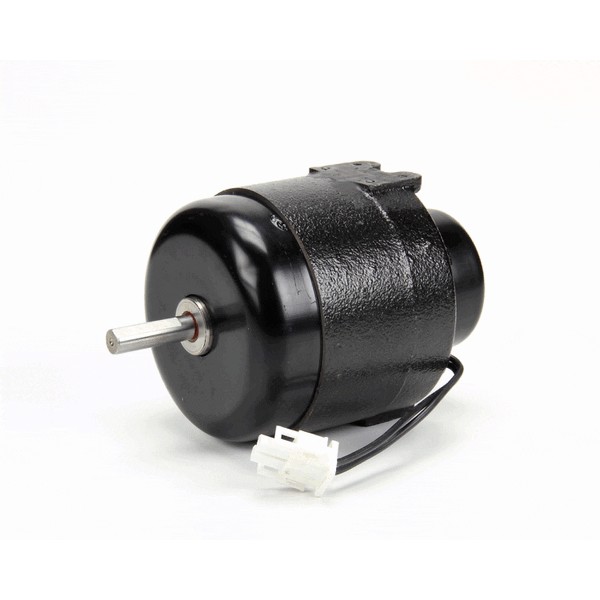

Scotsman 18-8926-01 Ice Machine Fan Motor 50W 115V 60Hz
Specifications:
- Fan Motor, 115V, 1.7Amp, 60Hz, 50W, 1500Rpm, Ccw
- Scotsman C0530Mr-1A, Co530Ma
Description
Dimensions:
- Weight: 5.62 lbs
- Length: 6.5 in
- Height: 4 in
- Width: 4 in
This commercial ice machine fan motor helps provide proper air circulation inside the machine to assist in controlling temperature during normal ice-making operations. The fan motor operates on 115 volts electrical power, using 1.7 amps at 60 hertz with a 50-watt output. The motor runs at 1500 revolutions per minute with CCW rotation. This fan motor helps circulate air through different sections of the machine to help control overheating while the unit is operating. Proper ventilation is important for normal ice machine performance.
Equipment Compatibility:
Key applications for Scotsman Ice Machine Fan Motor include commercial ice machines used in restaurants, hotels, cafés, and foodservice kitchens where internal airflow is needed during normal operation. This Ice Machine Fan Motor 18-8926-01 is compatible with commercial ice machine equipment from leading brands such as Scotsman, and other related systems, where 115V cooling fan motor operation is required for basic internal air circulation and temperature control.
Brand Compatibility
Replaces multiple part numbers across various commercial ice machine equipment brands, including Scotsman and other manufacturers that use compatible 115V condenser fan motor systems. Refer to the “Replaces Parts” section for complete cross-reference details.
Product Specifications:
Product Type: Ice Machine Fan Motor
Manufacturer: Scotsman
SKU: 18-8926-01
Voltage: 115V
Amperage: 1.7 AMP
Frequency: 60 Hz
Power: 50W
Speed: 1500 RPM
Rotation: CCW
Application: Ice machines
Function: Cooling fan motor
Key Features:
- Moves air inside the ice machine to help basic internal cooling during operation
- 115V motor design used in standard commercial ice machine systems
- 1500 RPM speed supports simple airflow circulation inside the unit
- CCW rotation for compatible machine airflow direction
- Replacement part for worn or non-working fan motors
- Users commonly report improved airflow and more stable ice production after replacing the fan motor.
SCOTSMAN:
Step1: Disconnect power to the ice machine to prevent electrical shock.
Step2: Remove the service panel to access the fan motor assembly.
Step3: Note wiring connections and carefully disconnect them.
Step4: Unscrew and remove the faulty fan motor from its bracket.
Step5: Install the new motor, aligning mounts and securing it tightly.
Step6: Reconnect wiring, reattach the panel, restore power, and test operation.
-
What maintenance is required for the Scotsman 18-8926-01 Fan Motor?
Check the ice machine fan motor for consistent rotation and airflow. Remove dust buildup from blades and housing. Inspect wiring connections. Routine servicing assists in maintaining efficient cooling and steady ice production.
-
What are the common issues with the Scotsman 18-8926-01 Fan Motor?
- Motor is failing to run consistently.
- Noise indicating internal wear.
- Reduced airflow impacting ice output.
- Electrical faults are causing a malfunction.
