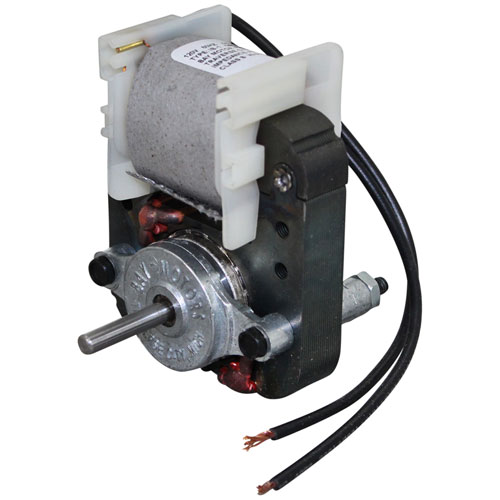

Alto-Shaam FA-3485 Oven 1-Pole Fan Motor 120V 3000 RPM

SKU: FA-3485 1-FA-3485 Brand:
Alto-Shaam
Availability:
In Stock
(0)
$58.59 Price reduced from $93.00
Save $34.41
Have a Question? +1 (866) 863-0907

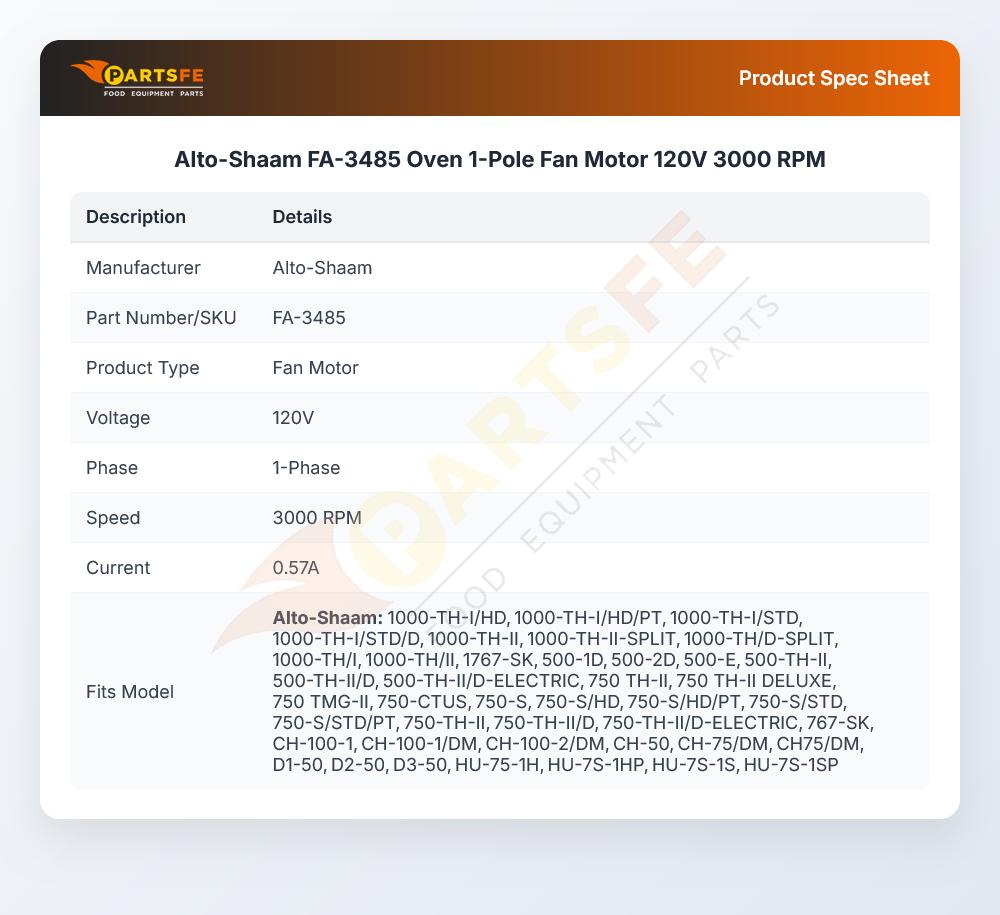

Specifications:

  • Fan Motor
  • [ 120V, ] [ 1P ] [3000Sp ] [.57A ]
  • For Fan Blade Use A1695, W-917, # 261835
  • Alto-Shaam
  • Oven 500-(1D,2D,3D,E), 767-Sk &
  • All 120V Cook & Hold Ovens.

Description

The Alto-Shaam FA-3485 Oven 1-Pole Fan Motor 120V operates at 3000 RPM and is designed for use in various Alto-Shaam cooking equipment. The system produces equal airflow inside the oven which creates better heat spread for consistent cooking. The 1-pole design of this motor maintains high efficiency by operating at 3000 RPM while delivering reliable performance. This 120V motor operates with standard electrical systems and features an installation process that reduces downtime. When used in Alto-Shaam ovens this fan motor improves cooking quality and decreases power usage while extending the appliance's operational life.

Dimensions:

  • Weight: 1.5 lbs
  • Length: 5 in
  • Height: 2.7 in
  • Width: 3.5 in

ALTO-SHAAM:

ALTFA3485 FA3485

Step1: Disconnect oven power and verify voltage is off before servicing and lockout/tagout system

Step2: Remove oven panel and locate existing fan motor assembly ensure correct access

Step3: Disconnect wiring harness and label connections for reference to avoid miswiring

Step4: Unbolt and remove the faulty motor carefully if needed

Step5: Install new motor, secure mounting, reconnect wiring according to wiring diagram

Step6: Restore power and test fan rotation for smooth operation and monitor performance

  • What maintenance is required for the Alto-Shaam FA-3485 Fan Motor?

    Keep the oven motor and fan assembly clean to prevent grease and dust buildup that can restrict airflow. Inspect electrical connections regularly for tightness and signs of overheating. Ensure bearings remain properly lubricated if applicable and verify secure mounting.

  • What are common issues with the Alto-Shaam FA-3485 Fan Motor?

    • Motor overheating due to restricted airflow or heavy grease buildup.
    • Fan imbalance causing excessive vibration and noise during operation.
    • Electrical failure or intermittent operation from worn wiring or connections.
    • Reduced speed or weak airflow from worn bearings or internal motor wear.
