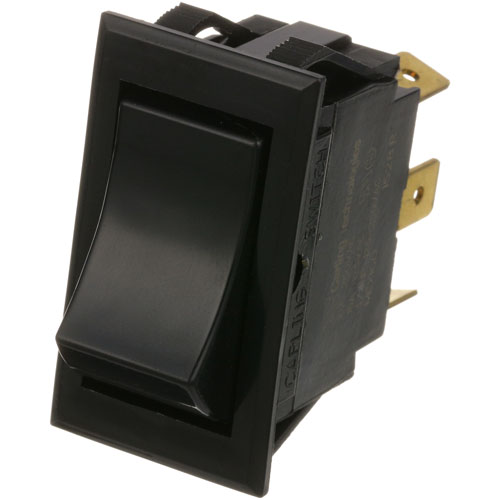

Southbend 1177540 Range Fan Switch 7/8 X 1-1/2 SPDT

SKU: 1177540 1-1177540 Brand:
Southbend
Availability:
Out of Stock
(0)
$42.76 Price reduced from $87.27
Save $44.51
Have a Question? +1 (866) 863-0907

Specifications:

  • Rocker Switch, Spdt (On-On), 3 Tabs 1/4", Black,
  • 10A-250V, 15A-125V Rocker, 7/8" X 1-1/2",
  • Cleveland Steamer Convection Steamer: 21-Cet-8, 21-Cet-16.
  • Imperial Oven Series: Icv, Icvd.
  • Dcs Oven Fsco.
  • Southbend Oven Eb/Eh, Sleb/Eh

Description

The Southbend 1177540 Range Fan Switch is an electrical switch with dimensions of 7/8” x 1-1/2” SPDT that is specially made to control operations in different appliances. This enables one input to switch between two output circuits and is hence suitable for use in HVAC and kitchen appliances. The small dimensions and easy mount make it more versatile and easy to use. Advantages are high voltage and current performance, and the ability to control multiple Parts of equipment with less wiring, which is advantageous for residential applications in terms of design and implementation.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.88 in
  • Height: 1 in
  • Width: 1.75 in

DYNAMIC COOKING SYSTEMS:

16087-3 DCS16087-3

IMPERIAL:

1127

ROYAL RANGE:

2525

SOUTHBEND:

SOU1177540

Step1: Disconnect power and ensure gasrange /electrical supply is off before starting.

Step2: Remove access panel on range to locate faulty fan switch.

Step3: Label and disconnect wiring from old SPDT switch.

Step4: Unscrew and remove existing switch from mounting bracket.

Step5: Install new switch and secure firmly.

Step6: Reconnect wiring per diagram and restore power to test operation.

Step7: Verify all connections are tight and replace access panel before use.

  • What maintenance is required for the Southbend 1177540 Fan Switch?

    Inspect electrical contacts regularly and ensure terminals are tight and free from corrosion. Clean any grease or debris buildup around the switch housing. Verify smooth actuation during operation. Proper maintenance ensures accurate fan control and prevents overheating issues.

  • What are common issues with the Southbend 1177540 Fan Switch?

    • Worn or pitted electrical contacts causing intermittent fan operation.
    • Loose or damaged wiring connections leading to inconsistent switching.
    • Complete switch failure preventing fan activation.
    • Overheating due to poor electrical contact resistance.
