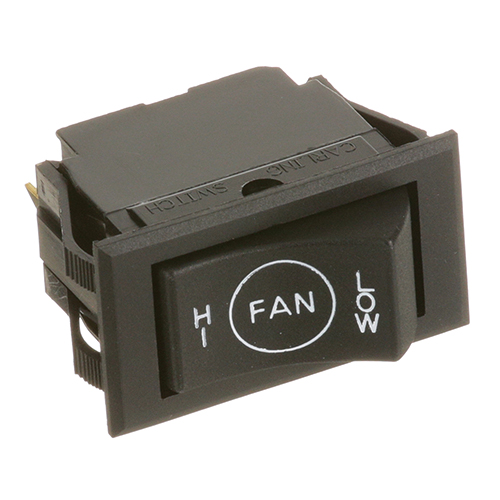

Duke 153144 Convection Oven Fan Switch SPDT On-On

SKU: 153144 1-153144 Brand:
Duke
Availability:
In Stock
(0)
$24.79 Price reduced from $41.18
Save $16.39
Have a Question? +1 (866) 863-0907

Specifications:

  • Rocker Switch
  • Spdt(On-On), 3Ea 1/4" Tabs, Black Rocker, 15A 125-277V,
  • Large Rocker, Fan Hi-Low
  • Duke 6/13 Oven E Series

Description

The Duke 153144 Convection Oven Fan Switch SPDT On-On that varies between two electrical circuits by its single-pole and double-throw contact to one of two possible positions marked on. It works by passing current on the input to one of the two outputs. This is mounted in the control panel or the wiring compartment, in the control circuits. It is mounted on the panel opening and can be used select between the modes by completing the correct circuit in the electrical system.

Dimensions:

  • Weight: 1 lbs
  • Length: 1.6 in
  • Height: 1.5 in
  • Width: 1 in

Step1: Turn off power at mains to avoid electric shock before starting installation

Step2: Remove fan cover/panel and old switch noting wiring connections and label them

Step3: Disconnect wires from old SPDT switch carefully

Step4: Connect wires to new switch terminals as per wiring diagram for On-On configuration

Step5: Secure switch in housing and reassemble fan properly

Step6: Restore power and test both switch positions briefly

  • What maintenance is required for the Duke 153144 Fan Switch ?

    Inspect wiring and terminals for looseness or corrosion to ensure accurate operation. Keep switch clean and dry to prevent moisture or dust issues. Test periodically under safe conditions to ensure consistent switching performance.

  • What are common issues with the Duke 153144 Fan Switch ?

    • Contact wear leading to intermittent switching.
    • Loose terminals causing power interruptions.
    • Internal contact failure resulting in no response.
    • Overheating due to electrical overload or poor connections.
    • Erratic operation due to worn internal components.
