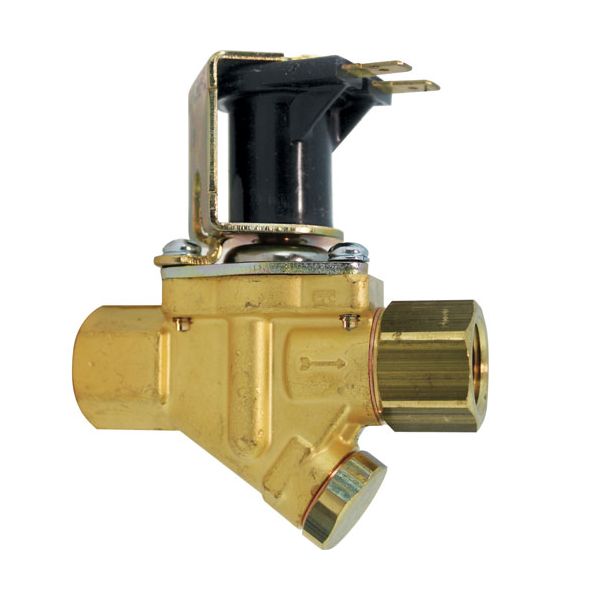

main product photo

Champion 504952 Dishwasher Fill Valve 3/8" FPT 120V

Be the first to review this product
Special Price $236.66 Regular Price $323.84
In stock
SKU
504952
Add to Wish List
Other Categories, Additional Parts, Valves
Manufacturer:
The Champion 504952 Dishwasher Fill Valve is a 3/8" FPT, 120-volt replacement part that is used to regulate the amount of water during the fill cycle. It controls the amount of incoming water to facilitate a steady cleaning optimal level in kitchen operations like restaurants, cafeterias, and institutional foodservice operations. The valve is installed in the water supply system of the dishwasher and opens and closes to keep the water level in the unit at the right level to ensure the dishwasher runs efficiently. This component is applied to maintain the wash cycle of the machine.

Dimensions

  • Length: 4 In
  • Width: 4 In
  • Height: 2 In
  • Weight: 0.75 lbs
https://partsfe.com/media/catalog/product/c/h/champion-504952-fill-solenoid-valve-3-8-fpt-in-out-91128-2.jpg

Product Notes

  • Fill Solenoid Valve,
  • 3/8" Fpt In/Out, 120V, 50/60Hz, 10W
  • Champion Tuw, U-Bw, Uh-100, Uh-100B, Uh-150, Uh-150B,
  • Uh-170, Uh-170B, Ul-100, Ul-150, Utl
CHAMPION:
Reviews
Write Your Own Review
You're reviewing:Champion 504952 Dishwasher Fill Valve 3/8" FPT 120V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Champion 504952 Fill Solenoid Valve?

Inspect and clean valve seat and passages to prevent mineral buildup and clogging. Check solenoid coil and electrical connections for wear, looseness, or overheating. Flush system regularly, ensure tight fittings, and shut off water during service.

What are common issues with the Champion 504952 Fill Solenoid Valve?

  • Solenoid coil failure causing no water flow.
  • Mineral scaling leading to sticking or delayed actuation.
  • Leakage from worn seals or valve seat damage.
  • Intermittent operation due to electrical connection faults.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off water supply and disconnect power to equipment.

Step2: Remove old solenoid valve and clean inlet/outlet fittings.

Step3: Wrap threads with PTFE tape and install new valve securely.

Step4: Connect FPT inlet and outlet lines, ensuring correct flow direction

Step5: Reconnect electrical connector to solenoid coil.

Step6: Restore water and power, then check for leaks and proper filling operation.

Step7: Avoid electrical shock and pressurized water during service.
