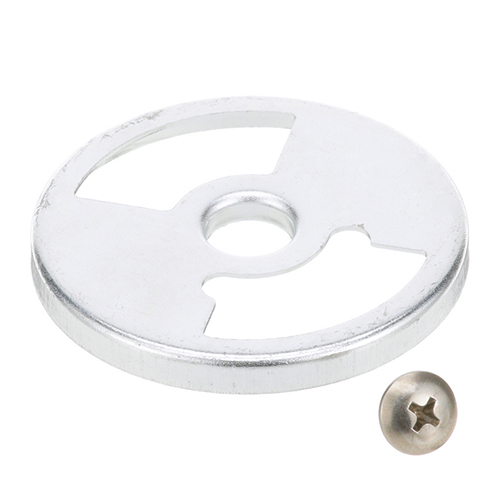

Imperial 1007 Char-Rock Broiler Burner Air Shutter
Specifications:
- Air Mixer Plate Single
- Includes: Mounting Screws
- Inside Diameter: 7/16In Center Hole
- Type: Fits 2 1/8In Diameter Air Mixing Chamber
- Single
- Weight: 0.045 Lb
- Models Used In:
- Imperial Eba Series, Gd Series, Icb-4827, Icb-4836, Icb-6027,
- Icb-6036, Ihpa-12, Ihpa-2-12, Ihpa-24, Ihpa-3-36, Ihpa-36,
- Ihpa-4-24, Ihpa-4-48, Ihpa-4_24, Ihpa-48, Ihpa-6-36, Ihr,
- Ihr-G24-2-C, Ihr-6, Ihr-6-C, Ir Series, Ir-2000-24, Ir-2000-36,
- Ir-2000-48, Ir-2000-60, Ir-2000-72, Ir-4-G12, Ir-6, Ir-6-C
- Bakers Pride Gg Series, Sgbr Series, Sgbr-2, Sgbr-3, Sgbr-4,
- Sgbr-5, Sgbr-6, Sgbr-7, 50 Series
Description
Dimensions:
- Weight: 0.05 lbs
- Length: 2.25 in
- Height: 0.25 in
- Width: 2.25 in
This Part Fits the Following Models
100 modelsAn adjustable burner air mixer plate regulates the atmospheric oxygen intake required to achieve clean gas combustion inside commercial cooking appliances. This single-style metal disc controls the primary airflow directly at the venturi entrance before fuel passes down into the main burner tube. Designed to fit standard 2 1/8-inch diameter air mixing chambers, the plate utilizes a 7/16-inch center hole to anchor onto the valve orifice or burner neck, allowing operators to rotate the shutter until the correct balance of gas and air is reached. Corrosion from high-heat exposure, carbon accumulation, or grease blockages can seize the shutter position or rust out the metal plate entirely. When the component becomes warped or damaged, the burner can produce lazy yellow flames, soot buildup, or unstable lifting flames. That severely lowers cooking efficiency. Replacing the worn hardware with this screw-mounted single shutter helps restore the tight blue flame pattern. This is necessary for heating consistency, lowering fuel waste while protecting volcanic char-rocks, briquettes, and lower burner compartments from structural carbon fouling. This primary regulation hardware is widely standard inside heavy-duty commercial char-rock broilers, counter-top radiant grills, high-capacity hotplates, and commercial restaurant ranges.
Equipment Compatibility:
Combustion tuning and flame regulation layouts for Imperial Burner Air Shutters include commercial char-rock broilers, heavy-duty radiant broilers, counter-top hotplates, and industrial restaurant ranges. This Broiler Burner Air Shutter 1007 is compatible with commercial equipment from leading brands such as Imperial, American Range, Bakers Pride, Garland, and US Range, where precise oxygen flow management is required for reliable operation.
Brand Compatibility:
This primary gas mixing disc replaces a variety of alternative component listings across major commercial line networks, including American Range, Bakers Pride, Dynamic Cooking Systems, Garland, Imperial, US Range, and more. Verify separate technical manuals to view full cross-reference data.
Product Specifications:
Product Type: Burner Air Shutter
Manufacturer: Imperial
SKU: 1007
Chamber Fit: 2-1/8" air mixing chamber
Center Hole: 7/16"
Design: Single metal air mixer plate
Mounting: Includes screws
Key Features:
- Tailored for a standard 2 1/8-inch diameter mixing chamber.
- This plate manages primary air intake to generate clean, highly efficient fuel combustion.
- Featuring an integrated 7/16-inch inside diameter center hole, the shutter slides smoothly onto the burner assembly for exact adjustment indexing.
- Included factory mounting screws fix the plate firmly in place to prevent vibrational shifting under heavy kitchen use.
- The lightweight 0.045 lb stamping delivers low thermal mass, ensuring quick heat dissipation across intense char-broiler cooking zones.
Installation Feedback:
"Often mentions improved flame stability and cleaner combustion after shutter replacement."
