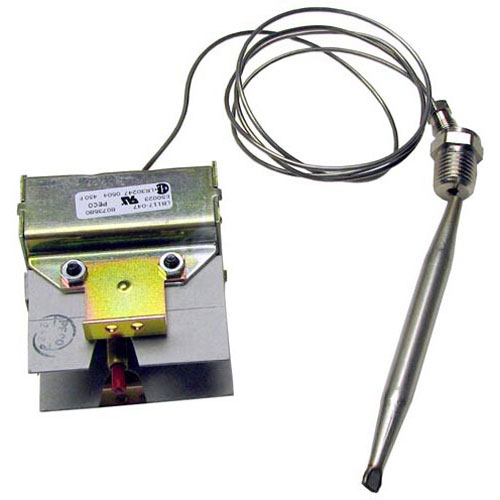

Frymaster FM8073680 High-Limit Thermostat W/Manual Reset

SKU: FM8073680 1-FM8073680 Brand:
Frymaster
Availability:
In Stock
(0)
$108.80 Price reduced from $230.51
Save $121.71
Have a Question? +1 (866) 863-0907

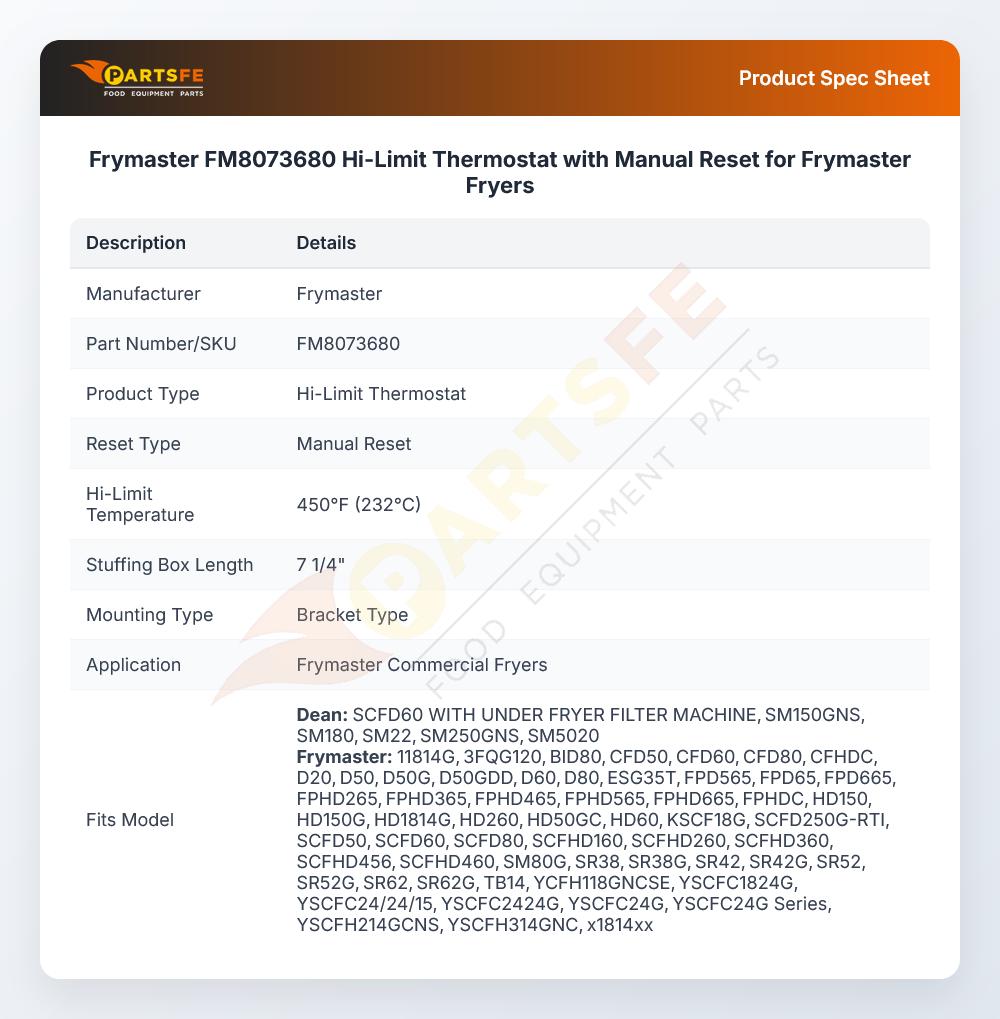

Specifications:

  • Hi-Limit W/ Stuffing Box, Manual Reset
  • 450F, Bracket Type 7
  • 1/4" Stuff Box
  • Frymaster Bid80, Cfd50, Cfd60, Cfd80, D20, D50, D50G,
  • D50Gdd, D60, D80, Fpd565, Fpd65, Fpd665, Fphd265, Fphd365,
  • Fphd465, Fphd565, Fphd665, Hd150, Hd260, Hd60, Kscf18G,
  • Scfd250G-Rti, Scfd50, Scfd60, Scfd80, Scfhd160, Scfhd260,
  • Scfhd360, Scfhd456, Scfhd460, Scfhd60, Sm20, Sm220, Sm35,
  • Sm40, Sm50, Sm60, Sm80, Sr38, Sr42, Sr52, Sr62, Tb14

Description

The Frymaster FM8073680 High-Limit Thermostat W/Manual Reset is used to check the temperature of oil or chamber and to disconnect power when the preset limit is surpassed. The manual reset must be operated before being brought back to operation following an over-temperature condition. This thermostat is close to the heating component or the oil reservoir of compatible commercial fryers. It should be used as a replacement in case the high-limit is not working properly to ensure safe operation during cooking periods.

Dimensions:

  • Weight: 0.39 lbs
  • Length: 6.5 in
  • Height: 1.5 in
  • Width: 5.5 in

DEAN:

807-3680 8073680

FRYMASTER:

807-3680 8073680 FM807-3680

Step1: Disconnect electrical power supply and allow fryer to cool completely before servicing; ensure gas supply is off if applicable.

Step2: Remove access panel and locate the existing hi-limit thermostat assembly inside the control housing area.

Step3: Carefully disconnect wiring terminals noting positions to avoid errors, then remove faulty thermostat from mounting bracket.

Step4: Install new thermostat securely into bracket, reconnect wires exactly as labeled or previously noted.

Step5: Reassemble panel, restore power, and test reset operation and high-temperature cutoff to ensure proper operation.

  • What maintenance is required for the Frymaster FM8073680 Hi-Limit Thermostat?

    Regularly inspect thermostat for proper calibration and secure wiring connections. Clean surrounding grease buildup to ensure accurate temperature sensing. Preventive checks reduce overheating risks and maintain consistent fryer performance. Always disconnect power before servicing to ensure technician safety.

  • What are common issues with the Frymaster FM8073680 Hi-Limit Thermostat?

    • Thermostat may fail to trigger heating shutdown leading to overheating.
    • Inaccurate temperature readings causing inconsistent frying results.
    • Electrical connection faults or intermittent continuity in sensor circuit.
    • Manual reset button may stick or become unresponsive.
