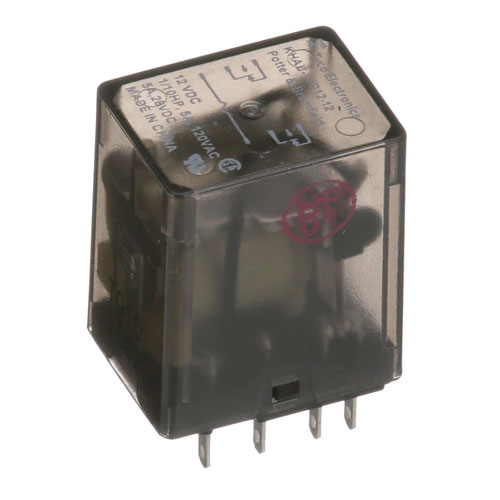

Frymaster FM8076084 Latch-Valve Relay DPDT 120V

SKU: FM8076084 1-FM8076084 Brand:
Frymaster
Availability:
In Stock
(0)
$36.15 Price reduced from $51.58
Save $15.43
Have a Question? +1 (866) 863-0907

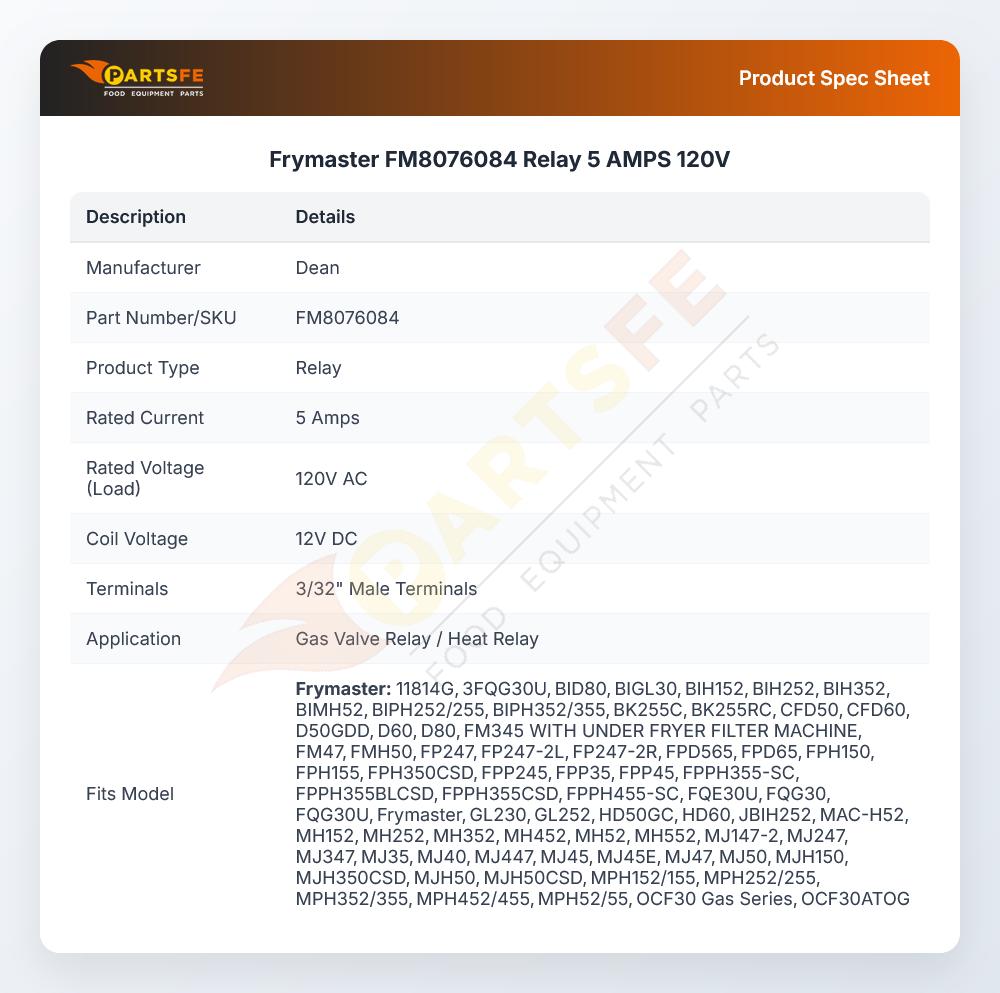

Specifications:

  • Relay, [5 Amps] [120V ] [ 3/32" Male
  • Terminals], 12Vdc, Gas Valve Or Heat.
  • Frymaster
  • Computer Magic Ii & Iii, Latch Valve Relay Or Heat Relay
  • Fryer Bimh-(14,52), Fph250Sd, Fph450Csd, G18Fb,
  • G24Fb, Gl(18Fb,24Fb), H(14,17, 22,214), Mach52,
  • Mj45E, Mjcfe W/Computer Magic, Mjh50.

Description

The Frymaster FM8076084 Relay Latch/Valve is an electrical switch that operates under 120V and switches between two contacts on its double-pole, double-throw contacts by its coil. When this is activated, the contacts are held together until it is reactivated, and current is passed to the circuit of choice. This is fitted within the electrical compartment of any of the compatible equipment and attached to the chassis or control panel. It connects to the wiring harness and control signals to control loads and other components on the control logic of the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.75 in
  • Height: 1.75 in
  • Width: 1.13 in

DEAN:

807-0833 807-6084 8070833

FRYMASTER:

807-0833 807-6084 8070833 8076084 FM807-0833 FM807-6084 FM8070833

Step1: Ensure the fryer is powered off and unplugged to prevent electrical shock.

Step2: Locate the relay mounting area near the control board.

Step3: Secure the relay in place using the appropriate screws or clips.

Step4: Connect the input and output wires to the relay terminals following the wiring diagram.

Step5: Double-check all connections for tightness and correct placement.

Step6: Restore power and test the relay operation before full use.

  • What maintenance is required for the Frymaster FM8076084 Relay?

    Inspect the relay terminals for looseness and discoloration. Keep the unit free from grease and moisture inside control panels. Periodically test switching performance to ensure proper operation and replace if contact wear is detected.

  • What are common issues with the Frymaster FM8076084 Relay?

    • Burnt or pitted contacts causing intermittent switching.
    • Coil failure leading to no actuation.
    • Overheating from excessive current or poor ventilation.
    • Loose terminals causing erratic electrical behavior.
    • Contact chatter due to voltage fluctuations.
