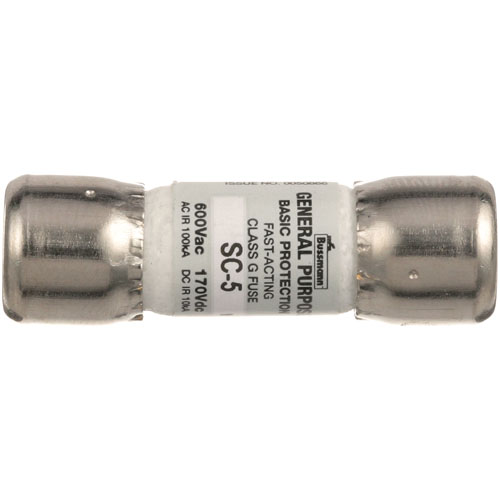

Star Mfg 2E-Z5680 SC-5 Oven Fuse 5A SC-5 Class G

SKU: 2E-Z5680 1-2E-Z5680 Brand:
Star Mfg
Availability:
In Stock
(0)
$20.02 Price reduced from $26.00
Save $5.98
Have a Question? +1 (866) 863-0907

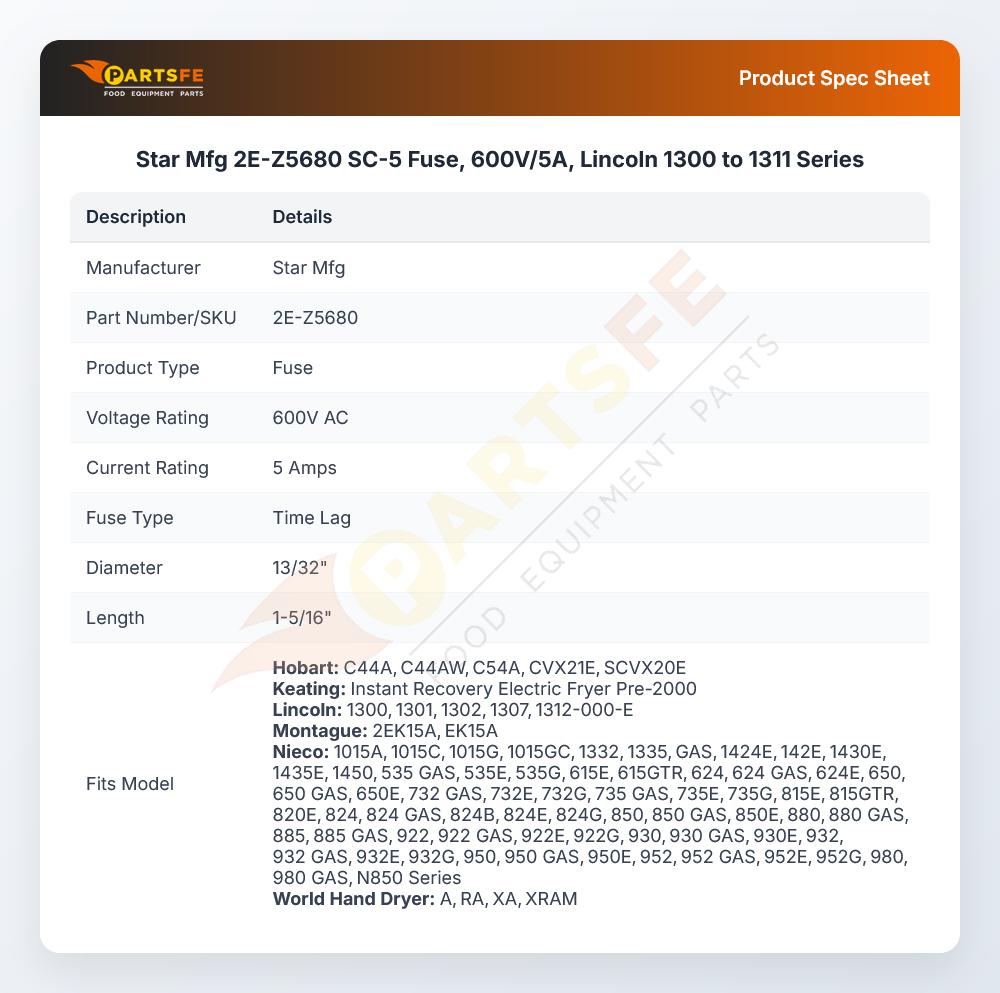

Specifications:

  • Sc-5, Fuse, 600V, 5 Amp, Time Lag,
  • 13/32" X 1-5/16"
  • Lincoln 1300, 1301, 1302, 1303, 1304, 1305, 1306, 1307,
  • 1308, 1309, 1310, 1311

Description

The Star Mfg 2E-Z5680 SC-5 Oven Fuse 5A SC-5 Class G is an electrical protection system that is used to cut power when it is detected that the current is excessive. It is placed in the electric circuit of the oven to prevent overload or short circuit of heating elements, wiring and control parts. It is widely applied in commercial cooking ovens where standard electrical operation is needed to be safe. It allows the equipment to be damaged and it minimizes the chances of electrical by opening the circuit when abnormal current flows.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.2 in
  • Height: 1.2 in
  • Width: 0.2 in

BLODGETT:

M4988

GENERAL ELECTRIC:

XNC7X118

HOBART:

00-FE22-45 100E2 7100E2 FE-022-45 FE22-45 XNC7X118/FE-022-45

KEATING:

008360 8360 KEA8360

LINCOLN:

369421

MIDDLEBY MARSHALL:

M4988

MONTAGUE:

1417-6 EV2-1

NIECO:

4602 NC4602

STAR MFG:

2342 2E-Y2342 Y2342

VULCAN HART:

100E2 7100E2

WORLD DRYER:

100E2 WDR100E2

Step1: Turn off and unplug the appliance and allow components to cool before servicing.

Step2: Locate the fuse holder in the control panel of the compatible unit.

Step3: Remove the blown fuse carefully using an insulated fuse puller.

Step4: Verify the replacement fuse matches specifications.

Step5: Insert the new fuse securely into the holder without forcing it.

Step6: Close the panel, restore power, and test the equipment for proper operation.

  • What maintenance is required for the Star Mfg 2E-Z5680 Fuse?

    Regularly inspect the fuse for signs of discoloration, corrosion, or damage that could affect electrical flow. Ensure it is properly seated in the holder and connections are secure. Replace the fuse immediately if blown or weakened. Always disconnect power before handling to prevent electrical hazards.

  • What are common issues with the Star Mfg 2E-Z5680 Fuse?

    • Fuse blowing due to electrical overload.
    • Loose seating causing intermittent power flow.
    • Corrosion on terminals leading to poor conductivity.
    • Incorrect fuse rating causing repeated failures.
