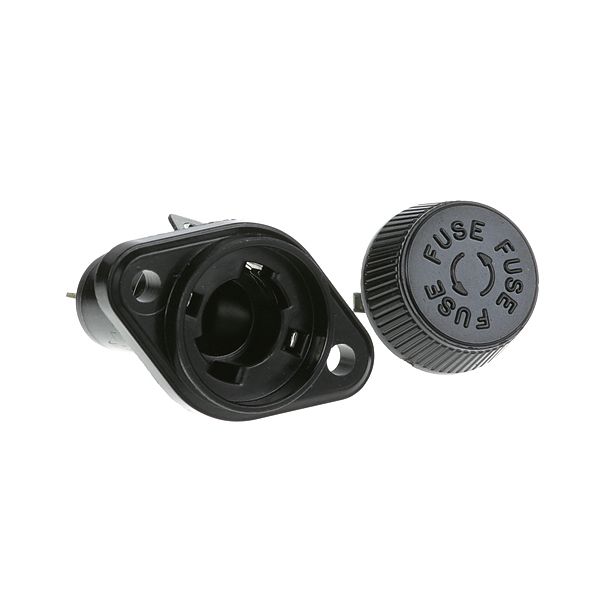

main product photo

Bakers Pride P1117X Fuse Holder 30A 600V, Push-Turn TP

Be the first to review this product
Special Price $25.31 Regular Price $32.88
Out of stock
SKU
P1117X
Add to Wish List
Electrical & Hardware, Fuses,
Manufacturer:
The Bakers Pride P1117X Fuse Holder Push-Turn TP 30 A 600V is a panel-mounted safety, which accommodates a push-turn fuse and provides a safe connection point to the interrupting high-current circuits. It takes a twist-to-release fuse with a 30 amp and 600 volt rating so that the fuse can be fitted or changed by pushing in and turning to fit. This fuse holder is mounted in the electrical compartment or control panel of compatible equipment, and has terminals that can be accessed in the back of the fuse holder.

Dimensions

  • Length: 3.125 In
  • Width: 1.75 In
  • Height: 1.125 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/b/a/bakers-pride-p1117x-fuse-holder-30a-600v-push-turn-tp-60066.jpg

Product Notes

  • Fuse Holder, 30 Amp, 600V, 13/32" X 1-1/2"
  • Accepts Ktk-R, Fnq-R, Fuse
  • 1/4' Tab Terminals
  • Push-Turn Bayonet Cap Panel Mount,
  • Flange Mount 1-5/16" Centers
  • Garland Cpo-Ed-(22,22H,24H), Mco-Es-(10-S, 10A, -Ed-10)
BAKERS PRIDE:
CLEVELAND:
GARLAND:
MIDDLEBY MARSHALL:
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Bakers Pride P1117X Fuse Holder 30A 600V, Push-Turn TP
Your Rating
FAQS
Customer Questions
What maintenance is required for the Bakers Pride P1117X Fuse Holder?

Inspect the fuse holder regularly for loose terminals, discoloration, or heat damage around the mounting area. Keep the contacts clean and ensure the fuse fits securely to maintain stable electrical flow. Check for corrosion or cracked components during equipment servicing.

What are common issues with the Bakers Pride P1117X Fuse Holder?

  • Loose connections causing intermittent power loss.
  • Fuse not seating properly leading to poor contact.
  • Overheating due to overload or incorrect fuse rating.
  • Physical damage or cracked housing affecting accuracy issues.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect the appliance from the electrical power source before replacing the fuse holder.

Step2: Remove the control panel or access cover to locate the existing fuse holder assembly.

Step3: Disconnect the wire terminals and remove the damaged fuse holder from its mounting position.

Step4: Install the new push-turn fuse holder and reconnect the electrical terminals securely.

Step5: Insert the correct fuse, reinstall the access panel, restore power, and test the equipment for proper operation.
