Garland G01919-01 Oven TS Safety Valve W/ Magnet Head, 1/4" CCT

SKU: G01919-01 1-G01919-01 Brand:
Garland
Availability:
In Stock
(0)
$146.53 Price reduced from $310.44
Save $163.91
Have a Question? +1 (866) 863-0907

Specifications:

  • Ts Safety, Magnet Head And Gas Carrier, J Type
  • Gas In/Out 1/2" Fpt, Pilot In/Out 1/4" Cct
  • For Head Only Use H207, G-115, # 51+1106
  • Franklin Chef Oven Series: Gh.
  • Garland Oven Mco-G-5.
  • Series: Bco, Eco, G48P, G2000, Ico, Tg3/4, Ttg3/4.
  • Southbend Oven 1364D-40, 1364C, 1364D.
  • Series: Old 300 Standard Oven With F Suffix~
  • New 300 & 400 Standard & Convection Ovens With Or Without
  • "X" Prefix
  • Vulcan Hart Model?

Description

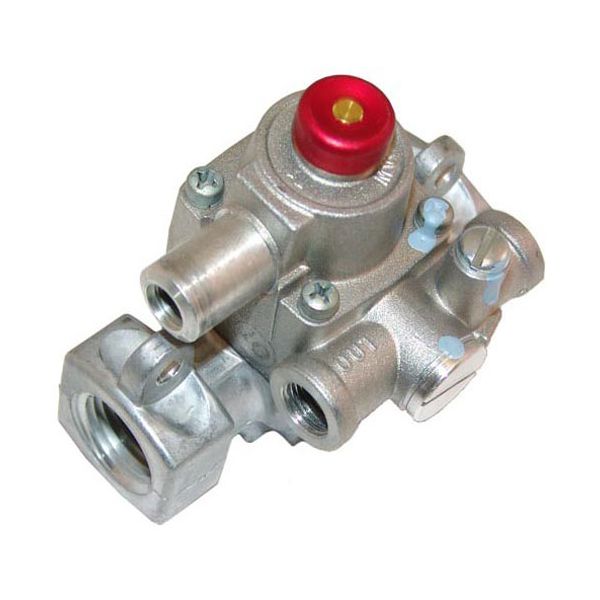

The Garland G01919-01 1/4” TS Safety Valve with Magnet Head is an essential safety device used in commercial gas cooking appliances. Thereby, this valve controls the release of the gas constantly to enhance safe utilization by preventing leakage when the appliance is turned off. It uses a J-type magnet head to open the valve so that gas can only circulate when there is need, unlike its fixed counterpart, making this type of burner safer and more efficient than its fixed burner counterpart. The advantages are enhanced operating dependability and decreased probability of danger from gas in the kitchen.

Dimensions:

  • Weight: 0.5 lbs
  • Length: 3 in
  • Height: 3.5 in
  • Width: 1.5 in

This Part Fits the Following Models

152 models
Garland BCO SERIES Garland ECO SERIES Garland ECO-G-10 Garland G2000 SERIES Garland G2071 Garland G2121 Garland G2161 Garland G2771 Garland G48P Garland G48P SERIES Garland G48PA Garland G48PD Garland G48PS Garland G48PSA Garland G48PSD Garland ICO SERIES Garland MCO-G-5 Garland TG3 Garland TG3 SERIES Garland TG3CH Garland TG4 Garland TG4 SERIES Garland TG4CH Garland TTG3 SERIES Garland TTG4 SERIES Southbend 1364D Southbend 171-40D-4 Southbend 320F Southbend 321F Southbend 324E Southbend 336A Southbend 336A-1GL Southbend 336A-2GL Southbend 336A-2GR Southbend 336A-2TL Southbend 336A-2TR Southbend 336A-3G Southbend 336A-3T Southbend 336D Southbend 336D-1GL Southbend 336D-2GL Southbend 336D-2GR Southbend 336D-2TL Southbend 336D-2TR Southbend 336D-3G Southbend 336D-3T Southbend 348EE Southbend 348EE-2GL Southbend 348EE-2GR Southbend 348EE-2TL Southbend 348EE-2TR Southbend 360AA Southbend 360AA-2GL Southbend 360AA-2GR Southbend 360AA-2RR Southbend 360AA-2TL Southbend 360AA-2TR Southbend 360AA-3GL Southbend 360AA-3GR Southbend 360AA-3TL Southbend 360AA-3TR Southbend 360AD Southbend 360AD-2GL Southbend 360AD-2GR Southbend 360AD-2RR Southbend 360AD-2TL Southbend 360AD-2TR Southbend 360AD-3GL Southbend 360AD-3GR Southbend 360AD-3TL Southbend 360AD-3TR Southbend 360DD Southbend 360DD-2GL Southbend 360DD-2GR Southbend 360DD-2RR Southbend 360DD-2TL Southbend 360DD-2TR Southbend 360DD-3GL Southbend 360DD-3GR Southbend 360DD-3TL Southbend 360DD-3TR Southbend 400 SERIES Southbend 424E Southbend 436A Southbend 436A-1GL Southbend 436A-2GL Southbend 436A-2GR Southbend 436A-2TL Southbend 436A-2TR Southbend 436A-3G Southbend 436A-3T Southbend 436D Southbend 436D-1GL Southbend 436D-2GL Southbend 436D-2GR Southbend 436D-2TL Southbend 436D-2TR Southbend 436D-3G Southbend 436D-3T Southbend 448-EE Southbend 448EE-2GL Southbend 448EE-2GR Southbend 448EE-2TL Southbend 448EE-2TR Southbend 448EE-3GL Southbend 448EE-3GR Southbend 448EE-3TL Southbend 448EE-3TR Southbend 448EE-4G/T Southbend 448EE-HH Southbend 460AA Southbend 460AA-2GL Southbend 460AA-2GR Southbend 460AA-2RR Southbend 460AA-2TL Southbend 460AA-2TR Southbend 460AA-3GL Southbend 460AA-3GR Southbend 460AA-3TL Southbend 460AA-3TR Southbend 460AA-4GL Southbend 460AA-4GR Southbend 460AA-4TL Southbend 460AA-4TR Southbend 460AD Southbend 460AD-2GL Southbend 460AD-2GR Southbend 460AD-2TL Southbend 460AD-2TR Southbend 460AD-3GL Southbend 460AD-3GR Southbend 460AD-3TL Southbend 460AD-3TR Southbend 460AD-4GL Southbend 460AD-4GR Southbend 460AD-4TL Southbend 460AD-4TR Southbend 460DD Southbend 460DD-2GL Southbend 460DD-2GR Southbend 460DD-2TL Southbend 460DD-2TR Southbend 460DD-3GL Southbend 460DD-3GR Southbend 460DD-3TL Southbend 460DD-4GL Southbend 460DD-4GR Southbend 460DD-4TL Southbend 460DD-4TR Southbend T301F Southbend T302F Southbend X436A
Showing of 152.0

GARLAND:

1027001 227120 CK1027001 GL1027001

HOBART:

005924 15924 805924

JADE RANGE:

460-130-000

SOUTHBEND:

10184 1164037 SOU1164037

U-LINE:

1720-007 1720-00G

VULCAN HART:

005924 15924 805924

Step1: Turn off gas supply and disconnect power to the oven.

Step2: Allow the unit to cool completely before starting.

Step3: Remove access panel and locate the existing safety valve.

Step4: Disconnect gas line and wiring carefully.

Step5: Install new valve, securing fittings tightly.

Step6: Reconnect wiring and gas line.

Step7: Restore gas and power, then test for leaks and proper operation.

  • What maintenance is required for the Garland G01919-01 Safety Valve With Magnet Head?

    Inspect the safety valve regularly for gas leaks, corrosion, and proper magnet connection. Ensure clean electrical and thermocouple connections to maintain stable millivolt operation. Remove grease buildup around the valve body and verify smooth opening and closing response during routine oven service checks.

  • What are common issues with the Garland G01919-01 Safety Valve With Magnet Head?

    • Magnet head failure causing intermittent gas cutoff.
    • Valve sticking or delayed response during ignition.
    • Gas flow inconsistency due to debris or wear.
    • Seal leakage leading to poor oven heating efficiency.
