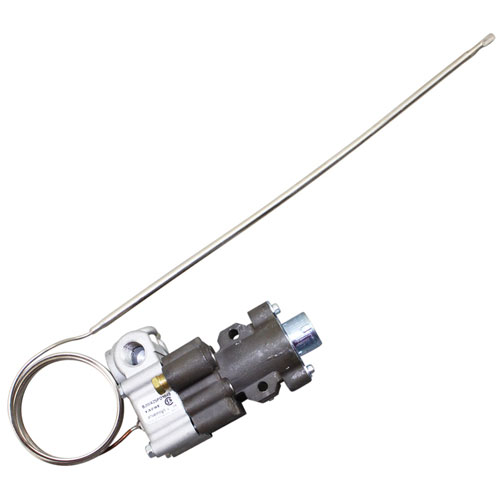

Hobart G503 Thermostat 3/16" X 11" Bulb 48" Capillary BJWA
Specifications:
- Viewed From Rear:See "Bj Outlet Positions" Image
- Type - Bjwa Temp Low-550 Bulb 3/16 X 11
- Cap 48 Rotation 90 Cw, 1/4"Npt Out "D"
- 3/16" Cct Pilot,
- Black Oven Dial # 22-1028, Off-Low-250-550-Broil
- Red Oven Dial # 22-1213, Off-Low-250-500
- Black Bj T'Stat Knob, 2" Dia Off-Low-250-500
- Mount 11/16" Notch Down , 5/8" Protrusion On Back Of
- Knob # 22-1210
- Vulcan Oven Series 59, 64, 70, Eg60
- Standard Oven 24, 36, 48, 60, 148, 160, 260, (L,)
- Eg, Vg
Description
Dimensions:
- Weight: 5.74 lbs
- Length: 11 in
- Height: 11 in
- Width: 4.5 in
This Part Fits the Following Models
53 modelsDesigned to regulate oven temperature in commercial cooking equipment, this BJWA thermostat monitors heat through a 3/16 in. × 11 in. sensing bulb connected to a 48 in. capillary tube, allowing the control to respond to changes in oven temperature. It features a temperature range from Low to 550°F, 90° clockwise rotation, a 1/4 in. NPT outlet in the "D" position, and a 3/16 in. CCT pilot configuration for compatible installations. Commonly used in commercial ovens, the thermostat cycles the heating system on and off to maintain the selected cooking temperature, supporting consistent heat control during baking, roasting, and other cooking processes. Replacing a worn or malfunctioning thermostat can help restore accurate temperature regulation and proper oven performance.
Equipment Compatibility:
This Thermostat G503 is designed for Hobart commercial oven applications where accurate temperature regulation is required for proper operation.
Product Specifications:
SKU: G503
Manufacturer: Hobart
Product Title: Hobart G503 Thermostat BJWA W/ 3/16 x 11" Bulb, 48" Cap
Product Type: Thermostat
Thermostat Type: BJWA
Temperature Range: Low–550°F
Bulb Size: 3/16 in. × 11 in.
Capillary Length: 48 in.
Rotation: 90° Clockwise
Outlet Connection: 1/4 in. NPT, "D" Position
Pilot: 3/16 in. CCT
Mount Size: 11/16 in.
Key Features:
- Regulates oven temperature by cycling the heating system to maintain the selected setting.
- Features a 3/16 in. × 11 in. sensing bulb for accurate temperature monitoring.
- Includes a 48 in. capillary tube to accommodate compatible thermostat installations.
- Provides a Low–550°F operating range for commercial cooking applications.
- Configured with 90° clockwise rotation and a 1/4 in. NPT outlet in the "D" position.
- Replacing a faulty thermostat can help restore proper temperature control and cooking consistency.
Technician Feedback:
Replacing the thermostat restored accurate oven temperature control and resolved inconsistent heating during operation.
