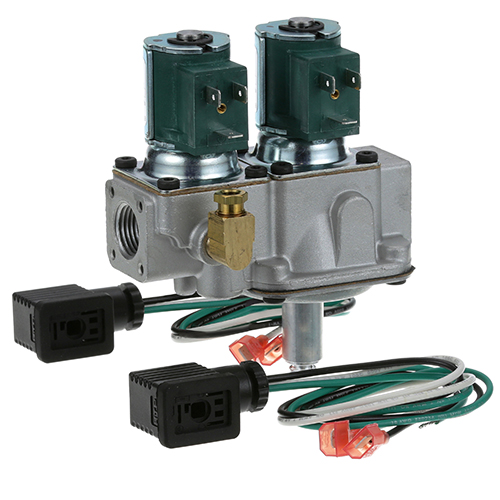

Johnson Controls G96HGH-5 Dual Gas Solenoid Valve 1/2" 25V

SKU: G96HGH-5 1-G96HGH-5 Brand:
Johnson Controls
Availability:
In Stock
(0)
$240.73 Price reduced from $512.46
Save $271.73
Have a Question? +1 (866) 863-0907

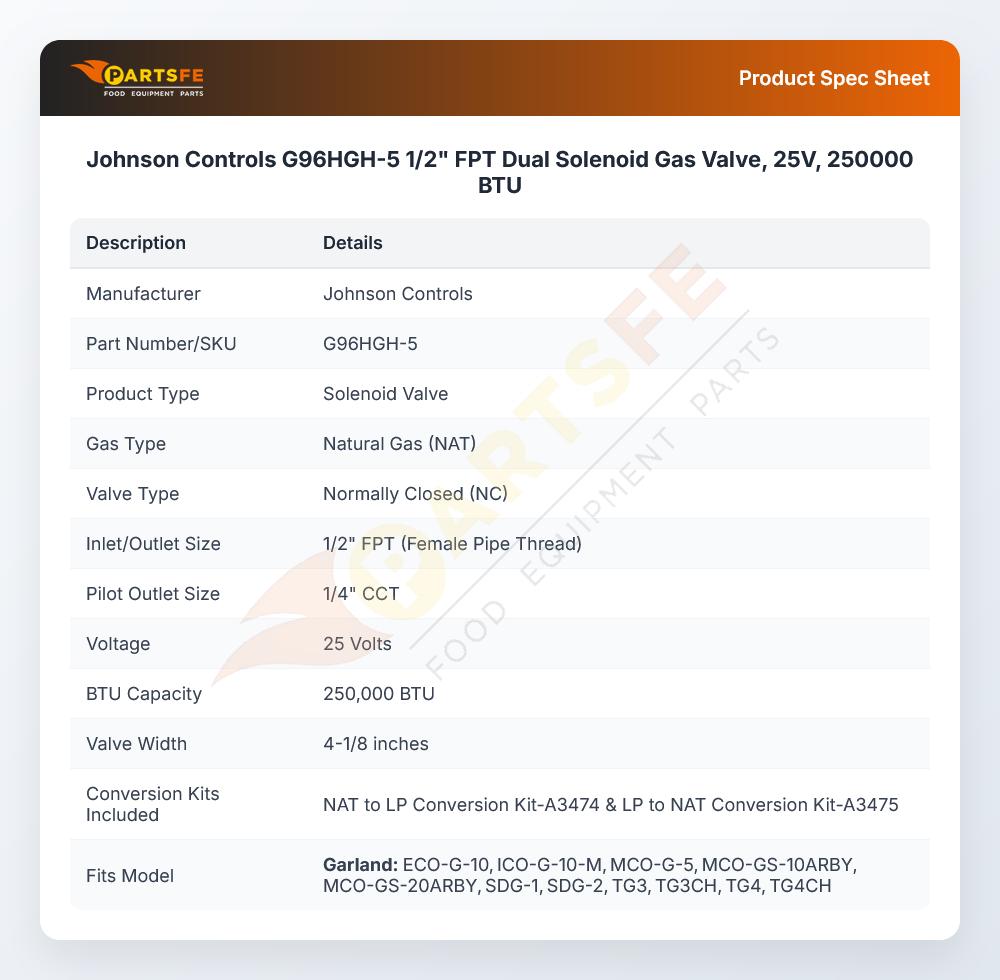

Specifications:

  • Dual Solenoid Valve
  • [ Nat Gas ] [ 1/2" Fpt Gas In/Out ] [ Nc ] [ 25 V ]
  • [ Width 4-1/8" ] [ 250,000 Btu ] [ 1/4" Cct Pilot Out ]
  • [ Brand Baso ] [ Mfg# G96Hgh-5 ] ,
  • Nat To Lp Conversion Kit A3474, C-441, # 51-1059
  • Lp To Nat Conversion Kit A3475, C-440, # 51-1060
  • Cleveland ?
  • Garland Oven Mco-G-5. Series: Bco, Eco, Ico, Tg, Ttg.
  • Us Range Oven Sdg (1,2)

Description

The Johnson Controls G96HGH-5 Dual Gas Solenoid Valve 1/2" 25V is designed to control the movement of gas in the controlled heating systems. It works based on dual solenoid systems that open or close the inner ports of the valves when a 25-volt signal is applied to it, and then the fuel supply is controlled accurately. This is a valve fitted in the gas line where precise control of flow is required to allow proper operation of the burner. It is an essential component of the fuel control system.

Dimensions:

  • Weight: 1.49 lbs
  • Length: 6 in
  • Height: 5 in
  • Width: 4.5 in

GARLAND:

1754901 GL1754901

Step1: Shut off electrical power and close the gas supply valve before servicing the equipment.

Step2: Label and disconnect all wiring, then remove the old gas valve from the gas line.

Step3: Apply approved gas-rated thread sealant to the pipe threads and install the new valve in the correct flow direction.

Step4: Reconnect the wiring terminals according to the equipment diagram.

Step5: Restore the gas supply and check all fittings for leaks using a soap-and-water solution.

Step6: Turn power back on and test ignition and gas valve operation to ensure safe performance.

  • What maintenance is required for the Johnson Controls G96HGH-5 Dual Solenoid Gas Valve?

    Regularly inspect the valve for gas leaks, secure electrical connections, and proper coil operation. Keep the unit clean and free from grease, dust, or debris that may affect solenoid movement. Check inlet screens for blockage and ensure stable voltage supply. Replace seals or coils if irregular operation or sticking is observed.

  • What are common issues with the Johnson Controls G96HGH-5 Dual Solenoid Gas Valve?

    • Solenoid coil failure preventing valve opening.
    • Gas leakage from worn seals or fittings.
    • Valve sticking or delayed response.
    • Blocked inlet screen reducing gas flow.
    • Electrical connection faults or voltage drop.
    • Overheating during continuous operation.
