Gas Control Valve1/2" X 3/4" For Cleveland - Part# 22182
Special Price $295.47 Regular Price $574.00
Out of stock
SKU
22182

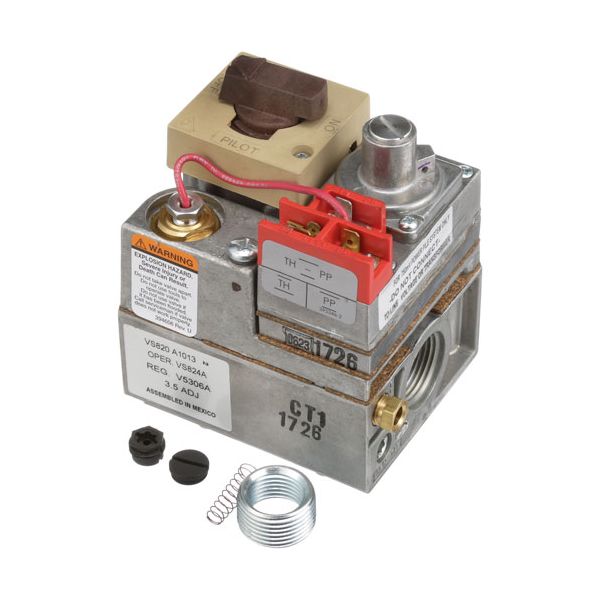

The Cleveland 22182 Range Gas Control Valve 1/2" X 3/4" regulates the amount of gas flow to the burner system by adjusting the supply pressure to the burner system. It operates by an internal control system that opens or closes the passage of gas based on the desired level of heat to maintain the burner with the appropriate level of fuel. This valve is located in the gas station of the unit and is placed between the gas supply line and the burner manifold to control the flow of fuel during cooking operation.
Manufacturer:
Dimensions
- Length: 3 In
- Width: 4.5 In
- Height: 6 In
- Weight: 2.63 lbs
Product Notes
- [ Nat/Lp ] [ Size 1/2" X 3/4" ] [ Safety ]
- [ Width 4" ] [ Mfg# Vs820A1047 ]
- 1/2" X 3/4" Npt Gas Control Valve, Uses 2 Lead Hermopile,
- Function - ( Safety )This Valve Has Plastic Knob,
- (1 Ea 1/2" X 3/4" Bushing & 1 Ea 3/8" X 1/2" Bushing)
- Cleveland Model 3 Probe Boilers W/ 2, 3 Or 4 Burners.
- Groen Model Bpm-30G, Bpm-30Gs, Bpm-40G, Bpm-40Gs,
- Bpp-30G, Bpp-40G, Hfp/2, Hfp/2E, Hfp/2E-2, Hfp/2E-3,
- Hfp/2E-4, Nhfp/2E
