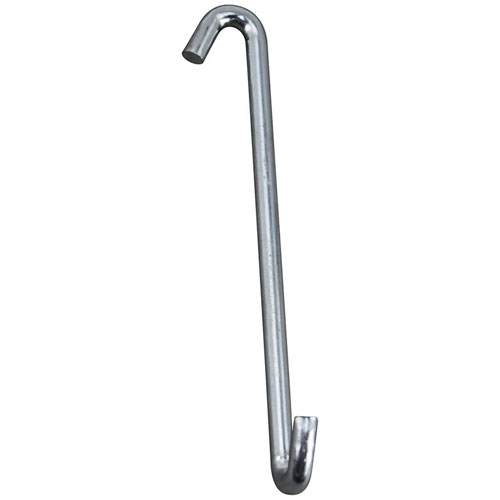

Garland GL1082802 Bell Crank Hook 4-3/8"

SKU: GL1082802 1-GL1082802 Brand:
Garland
Availability:
In Stock
(0)
$13.72 Price reduced from $17.14
Save $3.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Bell Crank Hook, Right
  • With Hook Up At Bottom The Top Hook Turns Left, 4-3/8"
  • Long,
  • Garland
  • Oven 680-2, 684, 686, Stw28, Stw286.
  • Series: 40/50, G30A, G280, R280-Ir, S.
  • Us Range Oven Px-36G-2-20

Description

The Garland GL1082802 Bell Crank Hook 4-3/8" is a mechanical linkage that is part of commercial cooking equipment to transmit motion between parts of the equipment. It is fitted to the internal lever or linkage mechanism of appliances like ranges, broilers and ovens where it is used to alter the direction of force to activate controls or mechanisms. This bell crank hook is the one that is usually placed in kitchen settings where mechanical movement needs to be done accurately to operate.

Dimensions:

  • Weight: 0.05 lbs
  • Length: 4.5 in
  • Height: 0.2 in
  • Width: 0.5 in

GARLAND:

1082800 1082802 GL1082800

Step1: Ensure the appliance is turned off and completely cool before starting.

Step2: Remove the access panel to reach the door hinge or bell crank assembly.

Step3: Disconnect and remove the existing bell crank hook from the linkage.

Step4: Position the new bell crank hook in the correct orientation.

Step5: Secure the hook to the bell crank and hinge linkage, ensuring smooth movement.

Step6: Reassemble the access panel and test the door for proper opening and closing.
