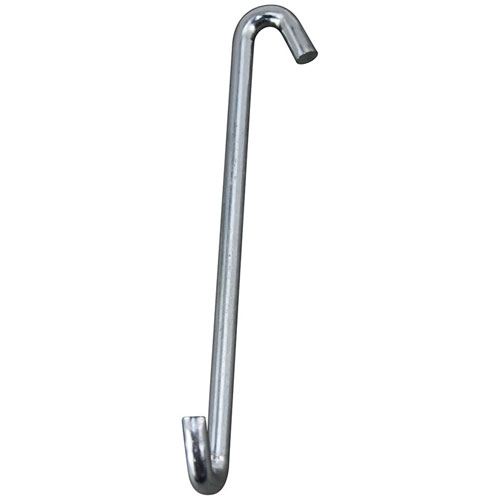

Garland GL1082803 Oven Crank Hook W/Bottom Hook Up 4-3/8" Bell

SKU: GL1082803 1-GL1082803 Brand:
Garland
Availability:
In Stock
(0)
$13.72 Price reduced from $17.14
Save $3.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Bell Crank Hook, Left
  • With Hook Up At Bottom The Top Hook Turns Right, 4-3/8"
  • Long,
  • Garland
  • Oven 680-2, 684, 686, Stw28, Stw286.
  • Series: 40/50, G30A, G280, R280-Ir, S.
  • Us Range Oven Px-36G-2-20

Description

The Garland GL1082803 Crank Hook W/Bottom Hook Up 4-3/8" Bell is used to control the movement of the oven door by attaching to the internal mechanism. The dual hook design of the same enables the bottom hook to be attached to the frame of the oven and the top crank hook to be connected to the moving components so that it can be used smoothly when opening and closing. This part will be installed at the specified hook-up points in the oven assembly and will fit into the existing structure without any alteration.

Dimensions:

  • Weight: 0.05 lbs
  • Length: 4 in
  • Height: 4 in
  • Width: 0.5 in

GARLAND:

1082801 1082803

Step1: Ensure the appliance is turned off and completely cool before starting.

Step2: Remove the access panel to reach the door hinge or bell crank assembly.

Step3: Disconnect and remove the existing bell crank hook from the linkage.

Step4: Position the new bell crank hook in the correct orientation.

Step5: Secure the hook to the bell crank and hinge linkage, ensuring smooth movement.

Step6: Reassemble the access panel and test the door for proper opening and closing.
