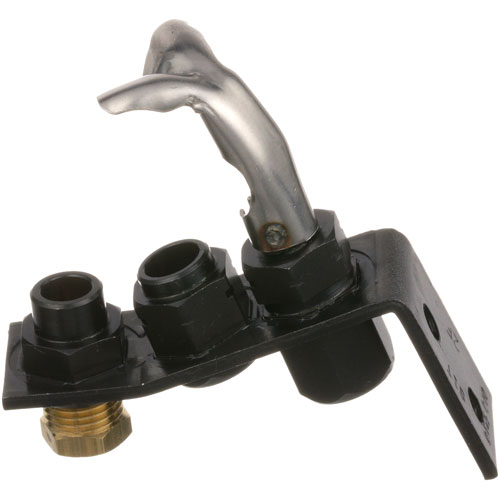

Garland GL2200700 Natural Gas Pilot Burner Assembly

SKU: GL2200700 1-GL2200700 Brand:
Garland
Availability:
In Stock
(0)
$30.34 Price reduced from $34.78
Save $4.44
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Burner Only, No Orifice,
  • Nat/Lp Pilot, Factory # , Tube Size 3/16",
  • All Threads Are 3/16" Cct
  • Flame Pattern Standard,
  • No Longer Includes Olive Sleeve, If Needed, Can Use Pilot
  • Assembly # 51-1286
  • Garland
  • Range Hot Top: Stw286.
  • Series: Master Series Ovens, Griddles With Suffix
  • Re/Rce~
  • Mst4Se
  • Griddle Series: Gd

Description

The Garland GL2200700 Natural Gas Pilot-Burner Assembly is a replacement part, intended to be used with commercial cooking equipment. It operates through the generation of a stable pilot flame, which lights the main burner under normal startup and operation. This assembly is fitted to ranges, griddles, or other appliances that need gas ignition in the kitchens of restaurants and institutions. It is generally changed during service, when the efficiency of pilots is not constant, or when ignition stops. The pilot burner assembly is a part of the system that operates with gas valves and safety controls.

Dimensions:

  • Weight: 0.35 lbs
  • Length: 2 in
  • Height: 1 in
  • Width: 2.5 in

This Part Fits the Following Models

100 models
Garland G SERIES Garland G24 Garland G24-15H Garland G24-15HFSD Garland G24-24G Garland G24-24GFSD Garland G24-24GTH Garland G24-24GTHX Garland G24-36G Garland G24-36GFSD Garland G24-36GTH Garland G24-36GTHX Garland G24-48G Garland G24-48GFSD Garland G24-48GTH Garland G24-48GTHX Garland G24-4L Garland G24-4S Garland G24-4T Garland G24-60G Garland G24-60GFSD Garland G24-60GTH Garland G24-60GTHX Garland G24-72G Garland G24-72GFSD Garland G24-72GTH Garland G24-72GTHX Garland G24-T Garland G36 Garland G36-6C Garland G36-6R Garland G36-6S Garland G36-6T Garland G36-G36R Garland G36T Garland G48 Garland G48-8CS Garland G48-8LL Garland G48-8RS Garland G48-8SS Garland G48P Garland G48PA Garland G48PD Garland G48PS Garland G48PSA Garland G48PSD Garland G60 Garland G60-10CC Garland G60-10CR Garland G60-10CS Garland G60-10RR Garland G60-10RS Garland G60-10SS Garland G60-6R24CC Garland G60-6R24CR Garland G60-6R24CS Garland G60-6R24RR Garland G60-6R24RS Garland G60-6R24SS Garland GD SERIES Garland GD-152H Garland GD-152HFF Garland GD-152HSTD Garland GD-15GFF Garland GD-24GFF Garland GD-302HSTD Garland GD-303HFF Garland GD-304-HFF Garland GD-304HSTD Garland GD-36GFF Garland GF SERIES Garland GF24 Garland GF24-4L Garland GF36 Garland GF36-6R Garland GF36-TTR Garland GF48 Garland GF48-LL Garland GF60 Garland GF60-10RR Garland GF60-6R24RR Garland GF60-6R24RS Garland GFE24-4L Garland GFE36-6C Garland GFE36-6R Garland GFE36-TTC Garland GFE36-TTR Garland GFE48-LL Garland GFE60-10CC Garland GFE60-10RC Garland GFE60-10RR Garland GFE60-6R24CC Garland GFE60-6R24CS Garland GFE60-6R24RC Garland GFE60-6R24RR Garland GFE60-6R24RS Garland GT SERIES Garland GTBG24-AB24 Garland GTBG24-AR24 Garland GTBG24-NR24
Showing of 100.0

GARLAND:

2200700

Step1: Turn off gas supply and disconnect power to appliance for safety.

Step2: Remove old pilot assembly and clean mounting area.

Step3: Position new pilot assembly and secure tubing fitting tightly.

Step4: Connect white wire to ignition system as per schematic.

Step5: Restore gas slowly and check for leaks using soapy water.

Step6: Light pilot and verify stable blue flame operation.

Step7: Ensure all connections are secure before full system restart.
