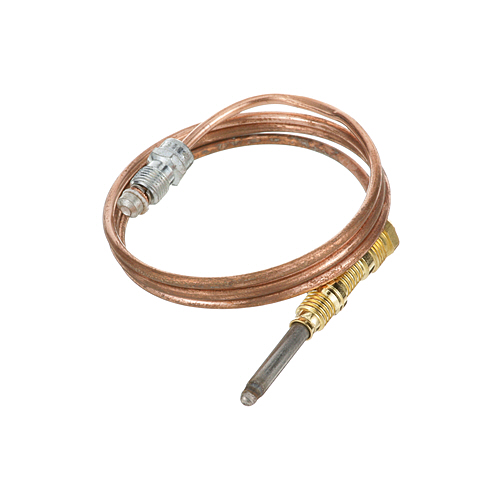

Southbend 1196078 Range Thermocouple 30"

SKU: 1196078 1-1196078 Brand:
Southbend
Availability:
In Stock
(1)
$55.64 Price reduced from $72.25
Save $16.61
Have a Question? +1 (866) 863-0907

Description

The Southbend 1196078 Range Thermocouple is a 30-inch temperature sensor developed for measuring heat in different cooking and industrial processes. Unlike a thermocouple that works on Seebeck effect, by having exposed junctions of two dissimilar metals that generate a voltage proportional with temperature difference, it can also be used to measure temperature with high accuracy. The operational range of this thermocouple is broad, it can be used for both high and low temperatures and is durable due to the construction materials used. Advantages are fast response time, efficiency as compared to other sensors, and low maintenance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 6.45 in
  • Height: 1.95 in
  • Width: 5.55 in

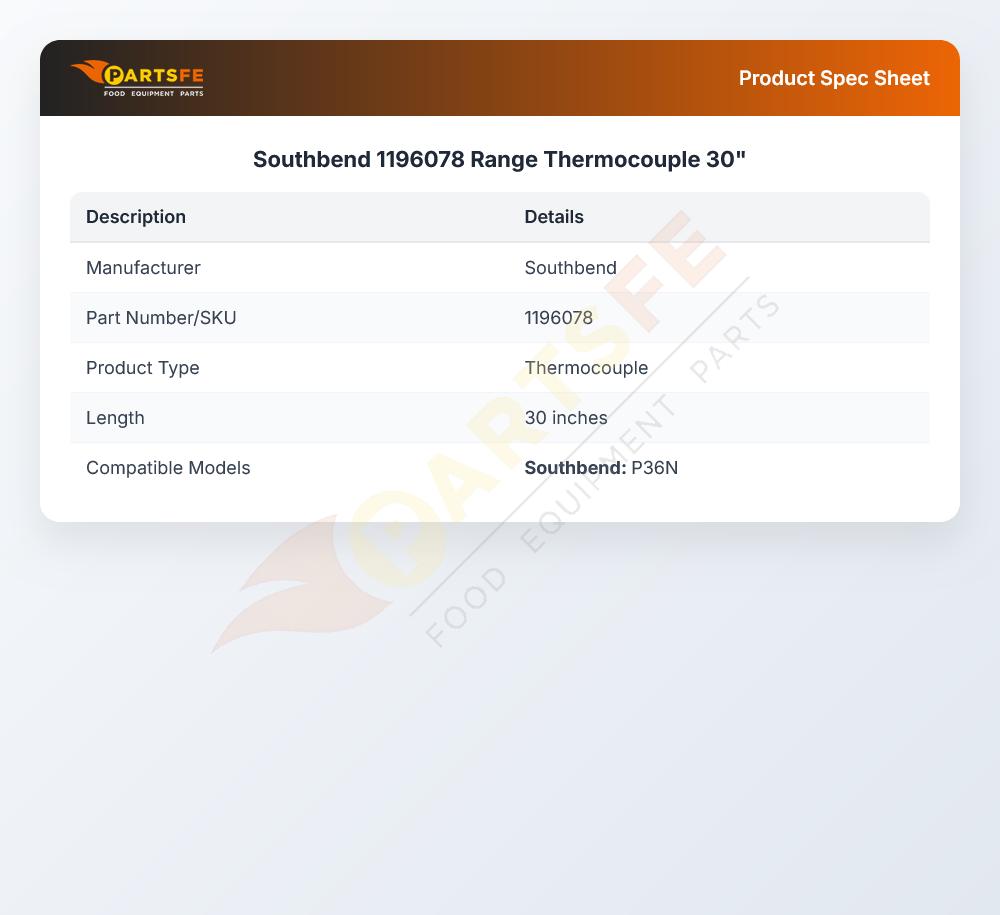

Manufacturer Name: Southbend
Product Number: 1196078
OEM Part Number: 1196078
Product Description: 1900 Series Heavy Duty Thermocouple 36" Long.20-30 Mv;Coaxial Thermocouple Threads = 11/32"-32;Anets Fryer 14Gs(U);Garland Bake/Roast Deck Oven G2071, G2121, G2161, G2771 ;Market Forge;Steamer Where Applicable;Southbend Nodel?;Vulcan Hart Model?;Wolf Model F4-27
Similar Models:P8903-48 - Anets, 41163 - Blodgett, 1019436 - Garland, 00-715005 - Hobart, 00-880828 - Hobart, 15005 - Hobart, 18328 - Hobart, 715005 - Hobart, 718328 - Hobart, 880828 - Hobart
Dimensions:
Length:4.25in/10.8cm
Width:1in/2.54cm
Height:1in/2.54cm
Weight:0.1lbs/45.36g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

SOUTHBEND:

1161521 SOU1196078

Step1: Turn off Range electrical supply and allow unit to cool completely.

Step2: Remove front panel and locate the existing thermocouple assembly.

Step3: Disconnect thermocouple from gas valve and burner mounting bracket carefully.

Step4: Install new thermocouple in same position and secure firmly.

Step5: Route lead away from heat sources and sharp edges.

Step6: Reconnect to valve tighten fittings restore panel and test ignition safely.

  • What maintenance is required for the Southbend 1196078 Thermocouple?

    Regularly inspect the range thermocouple for soot, grease, or carbon buildup that may affect flame sensing accuracy. Gently clean the probe with a soft cloth and ensure proper alignment with the pilot flame. Check wiring connections for tightness and corrosion. Always turn off gas supply before servicing.

  • What are common issues with the Southbend 1196078 Thermocouple?

    • Damage or inconsistent gas valve response.
    • Intermittent burner ignition problems.
    • Loose or corroded thermocouple connections.
    • Faulty flame sensing causing shutdown.
