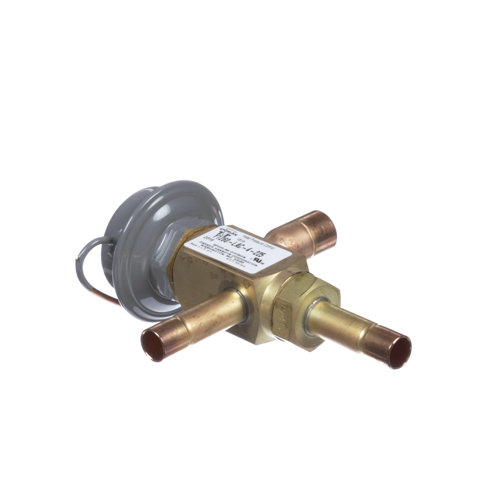

Manitowoc 000004070 Ice Machine Head Pressure Control Valve

SKU: 000004070 1-000004070 Brand: Availability:
In Stock
(0)

$234.52 Price reduced from $353.95
Save $119.43


Have a Question? +1 (866) 863-0907

Specifications:

  • Head Pressure Control Valve
  • Manitowoc Bd1003W, Bd1092N, Bd1302A, Bd1303W, Bd1392N,
  • Bd1802A, Bd1803W, Bd1892N, Br0450A, Br0451W, Br0490N,
  • Br0601W, Br0690N, Br0800A, Br0801W, Br0890N, Br1000A,
  • Br1090N, Br1300A, Br1301W, Br1390N, Br1800A, Br1801W,
  • Br1890N, By0604A, By0605W, By0694N, By0805W, By0894N,
  • By1004A, By1005W, By1094N, By1304A, By1305W, By1394N,
  • By1804A, By1805W, Cvd0675, Cvd0685, Cvd675, Cvd685,
  • Ib0622Dc, Ib0624Yc, Ib0682Dc, Ib0684Yc, Ib0694Yc, Ib0696Yc,
  • Id0502A, Id0503W, Id1402A, Id1403W, Iy0504A, Iy0505W,
  • Iy1404A, Iy1405W, Iyp0504A, Jc0495, Jc0895, Jc1395, Jd0452A,
  • Jd0453W, Jd0492N, Jd0802A, Jd1802A, Jd1803W, Jd1892N,
  • Jr0451W, Jr0490N, Jr0600A, Jr0601W, Jr0690N, Jr0800A,
  • Jr0801W, Jr0890N, Jr1000A, Jr1001W, Jr1090N, Jr1300A,
  • Jr1301W, Jr1390N, Jr1800A, Jr1801W, Jr1890N, Jy0454A,

Description

The Manitowoc 000004070 Ice Machine Head Pressure Control Valve regulates coolant flow by adjusting head levels during the ice production cycle. It responds to changes in the system, and assists in maintaining proper operating conditions for the circuit. Installed within the assembly of compatible equipment it is positioned near the condenser and compressor section to control pressure balance throughout operation. It plays a role in directing movement during standard conditions and supports consistent performance. The component is designed for use in commercial appliances where control is necessary for system use and temperature management.

Dimensions:

  • Weight: 0.85 lbs
  • Length: 4.5 in
  • Height: 3 in
  • Width: 3.5 in

Product Overview:
Refrigeration pressure regulation is essential to maintaining the intended operating conditions within an ice machine's refrigeration system. The Manitowoc 000004070 Ice Machine Head Pressure Control Valve is a refrigeration control component designed to regulate head pressure within the equipment's operating system.

Pressure Regulation:
The head pressure control valve supports the regulation of refrigerant pressure within the refrigeration circuit. Its role helps maintain the intended pressure conditions required for the ice machine's refrigeration system to operate.

Compressor Operating Support:
By helping control head pressure, the valve contributes to the proper operating environment for the compressor and related refrigeration components. A properly functioning control valve can help maintain consistent refrigeration performance and reduce unnecessary stress on the system.

Replacement Guidelines:
Replace the Manitowoc 000004070 when the existing valve is damaged, worn, or no longer maintains the required refrigeration pressure. Verify the part number and equipment configuration before ordering, particularly when replacing an older valve with one of its listed replacement references.

Common Failure Symptoms:

  • Unstable refrigeration system pressure
  • Inconsistent ice-making performance
  • Compressor operating irregularities
  • Excessive pressure-related cycling
  • Visible damage or deterioration around the valve

Equipment Compatibility:
The Manitowoc 000004070 Head Pressure Control Valve is listed for a broad range of Manitowoc commercial ice machines. Representative compatible models include BD1003W, BR1801W, and ID0502A; the approved product listings contain additional BD, BR, ID, IY, J, Q, SD, and SF series models.

Technical Specifications:
Brand: Manitowoc
SKU: 000004070
Product Type: Head Pressure Control Valve
Application: Commercial Ice Machine

MANITOWOC:

4070 83-6809-3 8368093 MAN8368093

SPORLAN:

Y1260-LAC-4-225

Step1: Disconnect power and ensure refrigerant system is safely isolated, damaged protective gear and only proceed if to handle refrigeration components.

Step2: Recover refrigerant charge using proper equipment before removing the existing head pressure control valve from the line.

Step3: Braze or connect the new valve in correct orientation and tighten all fittings securely.

Step4: Evacuate system, check for leaks, recharge refrigerant, then test pressure regulation during operation before restoring service.
