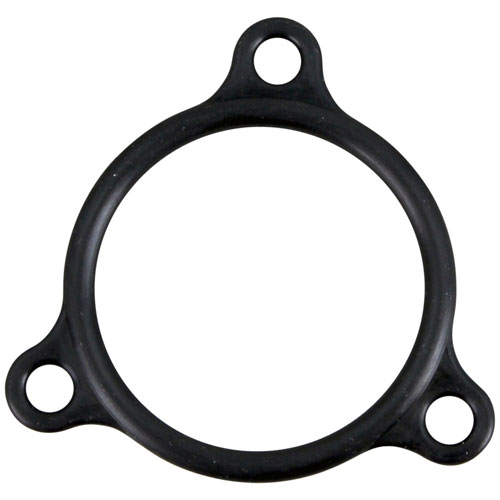

Champion 109985 Dishwasher Heater O-Ring Seal

SKU: 109985 1-109985 Brand:
Champion
Availability:
In Stock
(1)
$17.68
Have a Question? +1 (866) 863-0907

Specifications:

  • Electric Heater Flange Seal Gasket
  • Champion 1000 Series Ht, 1000 Series Lt, 100Hdpw, 106Pw,
  • 108Hdpw, 110Ffpw, 120Hdpw, 44, 44Dr, 44Drws,
  • 44Lt, 44Ws, 54,
  • 64, 66Drpw, 66Drwspw, 66Lt, 66Pw, 66Pwws, 70Ffpw, 72, 76Pw,
  • 80Drwshdpw, 80Ffpw, 80Hdpw, 84, 86Pw, 90Ffpw, 90Hdpw,
  • 94Ffpw, 94Pw, D-H1Tcm5, D-H1Tm5, D-Hb, D-Hbm3, D-Hbm4,
  • D-Hbm5, D-Hbt, D-Hbtcm4, D-Hbtcm5, D-Hbtm4, D-Hbtm5,
  • Dh-1000, Idh-200, Tuw, U-Bw, U-H1, U-Hb, Uc-C, Uc-Cw,
  • Uh-100B, Uh-150B, Uh-170, Uh-170B, Uh-200B, Usn-10, Utl

Description

The Champion 109985 Heater O-Ring Seal is a circular elastomer sealing component for a commercial dishwasher. To seal the water leakage around the heating element assembly. It does this by clamping between the mating metal or housing surfaces to create a tight seal, and prevent water from leaking out of the heater connection during wash cycles under pressure and heat. The flexible ring stays in contact throughout the joint interface, allowing for thermal expansion and vibration, and keeping the internal water path within the heater enclosure.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 3.25 in
  • Height: 0.38 in
  • Width: 4 in

CHAMPION:

CHA109985

Step1: Turn off the power and allow the appliance to cool completely.

Step2: Drain any remaining water and open the access area to the heater flange.

Step3: Remove the old gasket and clean the sealing surfaces thoroughly.

Step4: Place the new gasket evenly onto the flange and reassemble components.

Step5: Restore power, refill the unit, and check carefully for leaks.

  • What maintenance is required for the Champion 109985 Flange Seal Gasket?

    Regularly inspect the gasket for cracks, wear, or deformation that could cause leaks. Clean any debris or residue around the flange to ensure a proper seal. Replace the gasket immediately if damage is found to maintain safety and heating efficiency. Avoid overtightening bolts during installation.

  • What are common issues with the Champion 109985 Flange Seal Gasket?

    • Leaks around the flange.
    • Gasket cracking or breaking under heat.
    • Improper sealing due to misalignment.
    • Deformation from overtightening or repeated use.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Prevents Leaks
    Toby —

    Provides a tight seal for heater flanges.
