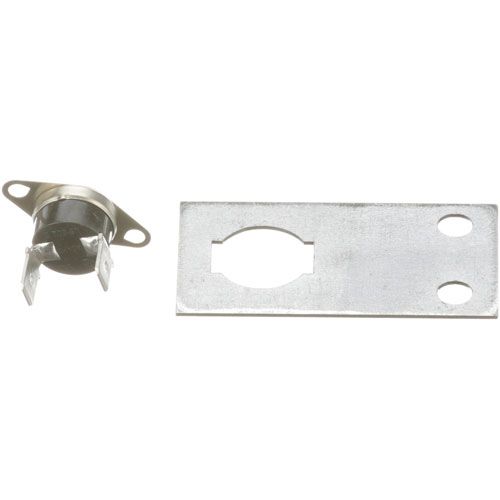

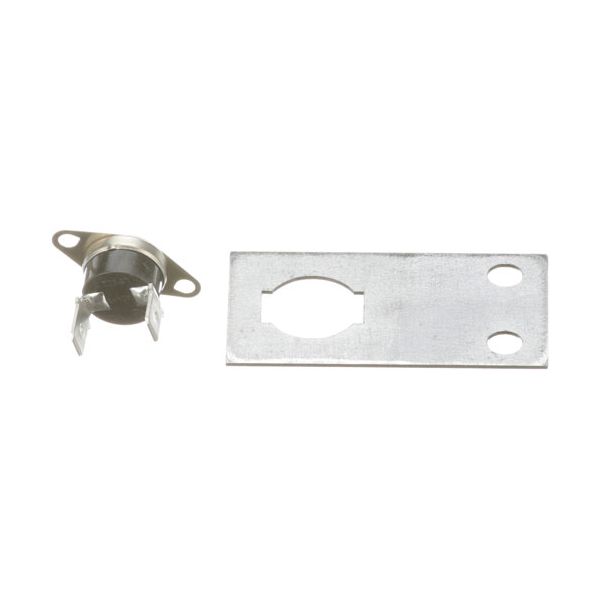

Monitoring excessive temperature conditions in commercial foodservice equipment, the Advance Tabco SU-P-208 High Limit Switch Assembly is a temperature-control component designed to interrupt the heating circuit when the sensed temperature reaches its specified limit. The 250°F rating defines the temperature point associated with the high-limit control. As part of the equipment's temperature-control system, the switch provides a temperature-responsive electrical control function.
Temperature Monitoring:
Senses the temperature of the monitored area through its temperature-responsive switching mechanism. Under normal conditions, the switch maintains the electrical circuit in its operating state while the temperature remains within the specified range. When the temperature reaches the set point, the switch changes state and interrupts the heating circuit.
Circuit Interruption:
Opens the electrical circuit when the monitored temperature reaches the rated limit. Interrupting the circuit removes electrical power from the connected heating load, providing a controlled response to excessive temperature conditions. The switch therefore functions as an electrical cutoff point within the temperature protection circuit.
Replacement Guidelines:
Replace the Advance High Limit Switch if it is damaged, deformed, corroded, or no longer provides the intended thermal limit response. The part number SU-P-208 and 250°F temperature rating should be verified before replacement to ensure the correct High Limit switch is selected. Replace the switch if deterioration affects temperature response, circuit continuity, physical integrity, or normal equipment operation.
Common Failure Symptoms:
- Heating does not respond normally to the high-temperature limit.
- Equipment continues heating beyond the expected limit condition.
- Heating operation becomes inconsistent.
- Switch shows visible physical damage.
- Temperature-limit control becomes unresponsive.
Equipment Compatibility:
The Advance Tabco SU-P-208 High Limit Switch Assembly 250°F is specified for equipment requiring this particular temperature safety switch configuration. Verify the equipment model, original part number, temperature rating, and applicable replacement or superseded part number before purchase.
Technical Specifications:
Brand: Advance Tabco
Part Number: SU-P-208
Product Name: High Limit Switch
Temperature Rating: 250°F
