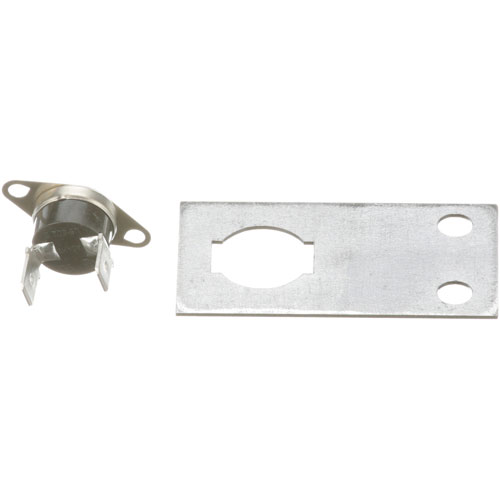

ADVANCE TABCO SU-P-208 Hi-Limit Switch 250°F
Description
Dimensions:
- Weight: 0 lbs
Temperature Monitoring:
Senses the temperature of the monitored area through its temperature-responsive switching mechanism. Under normal conditions, the switch maintains the electrical circuit in its operating state while the temperature remains within the specified range. When the temperature reaches the set point, the switch changes state and interrupts the heating circuit.
Circuit Interruption:
Opens the electrical circuit when the monitored temperature reaches the rated limit. Interrupting the circuit removes electrical power from the connected heating load, providing a controlled response to excessive temperature conditions. The switch therefore functions as an electrical cutoff point within the temperature protection circuit.
Replacement Guidelines:
Replace the Advance High Limit Switch if it is damaged, deformed, corroded, or no longer provides the intended thermal limit response. The part number SU-P-208 and 250°F temperature rating should be verified before replacement to ensure the correct High Limit switch is selected. Replace the switch if deterioration affects temperature response, circuit continuity, physical integrity, or normal equipment operation.
Common Failure Symptoms:
- Heating does not respond normally to the high-temperature limit.
- Equipment continues heating beyond the expected limit condition.
- Heating operation becomes inconsistent.
- Switch shows visible physical damage.
- Temperature-limit control becomes unresponsive.
Equipment Compatibility:
The Advance Tabco SU-P-208 High Limit Switch Assembly 250°F is specified for equipment requiring this particular temperature safety switch configuration. Verify the equipment model, original part number, temperature rating, and applicable replacement or superseded part number before purchase.
Technical Specifications:
Brand: Advance Tabco
Part Number: SU-P-208
Product Name: High Limit Switch
Temperature Rating: 250°F
Step1: Disconnect electrical power at the breaker.
Step2: Access the control compartment and locate the hi-limit switch.
Step3: Label and disconnect wires from the old switch.
Step4: Remove mounting screws and replace with the new switch.
Step5: Reconnect wiring firmly and secure the switch.
Step6: Restore power and test the temperature cut-off operations.
-
Why is the high limit switch important?
The high limit switch ensures safety by preventing the oven from reaching dangerously high temperatures, safeguarding against fires and damage to the appliance.
-
What causes the high limit switch to trip frequently?
Frequent tripping may result from issues like blocked airflow, faulty thermostat calibration, or malfunctioning heating elements, requiring inspection and repairs.
-
What maintenance is required for the ADVANCE TABCO SU-P-208 Hi-Limit Switch?
Regularly inspect the Hi-Limit Switch for signs of wear, corrosion, or loose connections. Clean contacts with a soft, dry cloth and test the switch operation periodically. Ensure power is off during maintenance and verify proper temperature calibration to prevent overheating.
-
What are the common issues with the ADVANCE TABCO SU-P-208 Hi-Limit Switch?
- Switch fails to trip at the designated temperature
- False triggering due to debris or mechanical damage
- Loose or corroded electrical connections
- Inconsistent performance during repeated heating cycles.
-
What does the Advance Tabco SU-P-208 High-limit switch do?
It monitors temperature and interrupts the electrical heating circuit when the monitored temperature reaches the switch's 250°F limit.
-
How does the 250°F temperature limit work?
When the monitored temperature reaches the preset 250°F threshold, the switch changes state and opens the electrical circuit to interrupt the connected heating load.
-
Why is a hi-limit switch used in a heating system?
It provides temperature-responsive circuit interruption to help control excessive heating conditions within the equipment.
-
What can cause a hi-limit switch to remain open?
An over-temperature condition, switch malfunction, damaged wiring, or other electrical problems can cause the circuit to remain interrupted.
-
What are common signs of a faulty High-limit switch?
Unexpected heating interruption, intermittent heating, failure to restore the circuit, or visible heat-related damage may indicate a problem with the switch.
