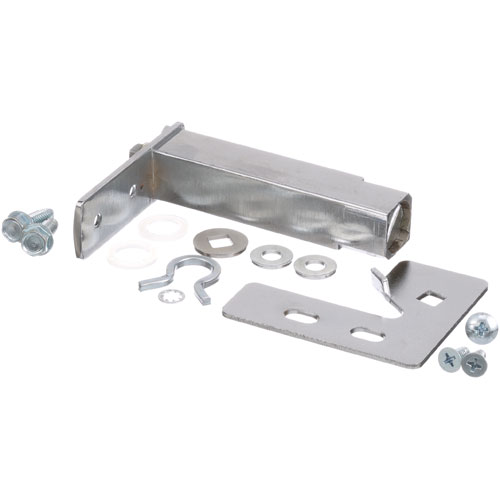

TRUE 870838 Refrigerator Top Left Door Hinge Kit

Door Alignment:
The upper pivot point created by the True 870838 Door Hinge Kit guides the refrigerator door through its opening and closing movement. It helps maintain the door's position relative to the cabinet, reducing unwanted shifting during repeated use. Proper hinge alignment also helps distribute the door's load through the supporting structure, allowing controlled movement and helping the door return to its intended closed position.

Sealing Support:
Proper hinge positioning helps the door follow its intended closing path and sit evenly against the cabinet when closed. This allows the door gasket to maintain consistent contact around the cabinet opening, helping limit unwanted air exchange. A properly positioned hinge therefore contributes to stable door closure and supports the gasket's intended sealing function during normal operation.

Replacement Guidelines:
Replace the Door Hinge Kit if the hinge is cracked, bent, deformed, worn, loose, or no longer supports proper door movement and alignment. The part number 870838 and hinge configuration should be verified before replacement to ensure the correct hinge kit is selected. Replace the hinge kit if deterioration affects door alignment, support, movement, closing, or normal equipment operation.

Common Failure Symptoms:

• Door movement becomes uneven.
• Door appears misaligned relative to the cabinet.
• Hinge shows visible cracking, bending, or deformation.
• Door does not close into its intended position.
• Uneven contact occurs between the door gasket and cabinet opening.

Equipment Compatibility:
The True 870838 Door Hinge Kit is a top-left (LH) hinge with a specific configuration. Verify the equipment model, hinge position, dimensions, and part number before ordering.

Technical Specifications:
Brand: True
Part Number: 870838
Product Name: Door Hinge Kit
Hinge Position: Top Left (LH)

Step1: Unplug the refrigerator to ensure safe installation.

Step2: Support the door and remove the existing top hinge screws.

Step3: Lift the door slightly to detach it from the hinge.

Step4: Install the new hinge in the top position and align properly.

Step5: Reposition the door onto the hinge and secure all screws tightly.

Step6: Check door alignment and ensure smooth opening and closing.

• Are there different versions of the True 870838 Hinge Door Kit available?

  The kit may have variations based on the refrigerator or freezer model. Ensure you select the correct kit version that matches your specific unit.

• What are the signs that my True refrigerator or freezer hinges need replacement?

  Signs of hinge issues may include difficulty in opening or closing the door, misalignment, squeaking or grinding noises, or the door not staying closed properly.

• Can using damaged hinges impact the energy efficiency of my True refrigerator or freezer?

  Yes, damaged or malfunctioning hinges can affect the proper sealing of the door, leading to temperature fluctuations and decreased energy efficiency.

• What maintenance is required for the TRUE 870838 Top Left Door Hinge Kit?

  Regularly inspect the Top Left Door Hinge Kit for loose screws, worn components, or misalignment that may affect door operation. Clean the hinge area to remove grease and debris that can restrict movement. Check that the cartridge spring mechanism moves smoothly and keeps the door aligned. Tighten hardware and replace worn washers or spacers to maintain proper door sealing and prevent temperature loss in refrigeration units.

• What are common issues with the TRUE 870838 Top Left Door Hinge Kit?

  • Door sagging or misalignment.
  • Stiff or noisy hinge movement.
  • Loose or stripped screws.
  • Damage the causing uneven door sealing.

• What maintenance is required for the TRUE 870838 Door Hinge Kit?

  Periodically check the hinge for smooth movement and proper alignment. Tighten mounting screws if they become loose. Inspect pivot points for wear and ensure the door closes fully without dragging or binding during normal operation.

• What are common issues with the TRUE 870838 Door Hinge Kit?

  • Door not closing evenly.
  • Hinge squeaking during use.
  • Door rubbing against frame.
  • Misaligned door causing air leaks.

• What does the True 870838 door hinge kit do?

  It provides the upper pivot point for the door and supports smooth movement and proper positioning.

• When should the True 870838 Door Hinge Kit be replaced?

  The True 870838 Door Hinge Kit should be replaced if the door becomes loose, does not close properly, or shows visible signs of wear or damage. Replacing a worn hinge can help restore proper door alignment and operation.

• How can a worn hinge affect door operation?

  A worn hinge can cause misalignment, excessive movement, or uneven opening and closing.

• Why is proper hinge alignment important?

  It helps maintain consistent door movement and allows the door to close correctly against the cabinet.

• What can indicate wear on the 870838 hinge?

  Excessive door movement, misalignment, uneven opening or closing, visible bending, cracks, or other physical deterioration can indicate that the hinge is no longer functioning as intended.
