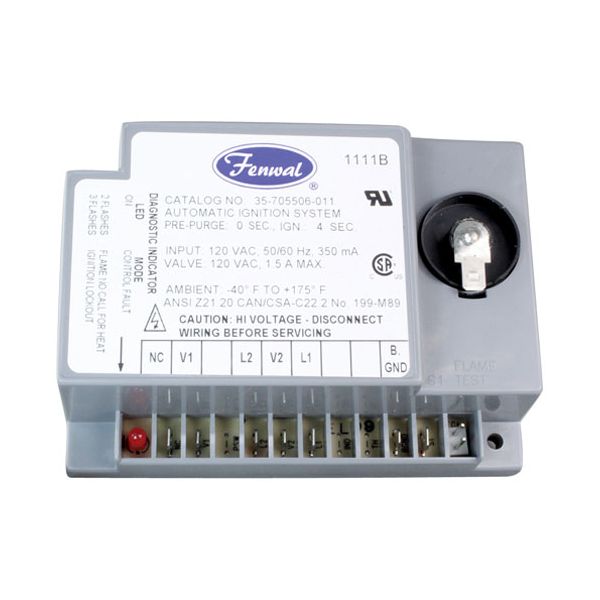

Imperial 35682 Oven Fenwal Spark Ignition Module W/ 1/4" Tab Spark Connection 120V

Be the first to review this product
Special Price $185.24 Regular Price $448.51
In stock
SKU
35682
Add to Wish List
Electrical & Hardware, Ignition Modules, Shop by manufacturers
Manufacturer:
Imperial 35682 Fenwal Spark Ignition Module is a 120V automatic system that is used in commercial ovens. Equipped with a 1/4” tab spark connection it has a 4 seconds ignition delay and no pre-purge. Designed for American Range and Imperial IHR-C ovens, this module guarantees safe ignition and stable operation. The advantages include increased productivity, increased safety and decreased need for maintenance thus making it an essential component in maintaining efficiency of commercial ovens. Ideal for working individuals who want to gain optimum ignition in commercial cooking appliances.

Dimensions

  • Length: 5 In
  • Width: 3.5 In
  • Height: 2 In
  • Weight: 0.56 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-35682-oven-fenwal-spark-ignition-module-w-1-4-tab-spark-connection-120v-64643-2.jpg

Product Notes

  • Fenwal Automatic Spark Ignition Module, 120V
  • 0 Prepurge, Ignition 4 Sec.
  • 1/4" Tab Spark Connection
  • American Range
  • Imperial Ihr-C
AMERICAN RANGE:
IMPERIAL:
Reviews
Write Your Own Review
You're reviewing:Imperial 35682 Oven Fenwal Spark Ignition Module W/ 1/4" Tab Spark Connection 120V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Imperial 35682 Spark Ignition Module?

Inspect wiring and spark connections regularly for corrosion or looseness. Clean dust and grease buildup to ensure accurate ignition performance. Replace worn or damaged electrodes promptly to prevent ignition failure and maintain better oven operation.

What are common issues with the Imperial 35682 Spark Ignition Module?

  • No spark or intermittent ignition failure due to worn electrodes.
  • Faulty module causing no ignition or delayed start.
  • Loose or corroded connections leading to inconsistent operation.
  • Overheating or internal component failure causing shutdowns.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and disconnect power to the oven to prevent shock or gas leakage.

Step2: Remove oven panels to access the existing ignition module and label wiring connections.

Step3: Disconnect wires and tab spark lead, then remove old module from mounting bracket.

Step4: Install new module securely, reconnect wiring to matching terminals.

Step5: Restore power and gas, then test ignition for proper spark and operation.
