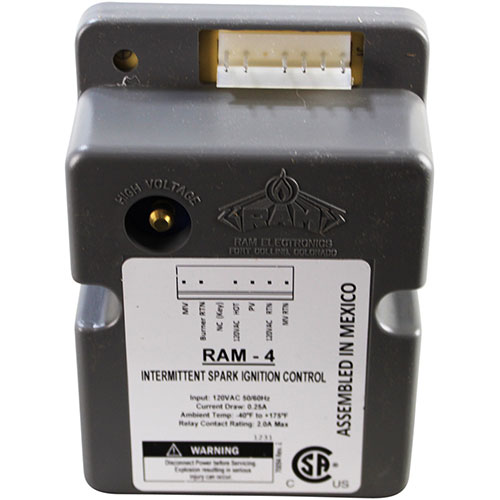

Imperial 37061 Oven Spark Module Intermittent Pilot Ignition Control 50/60HZ 120V
Description
Dimensions:
- Weight: 1.3 lbs
Spark Generation and Signal Control:
Receives an electrical signal from the oven control system and produces the output required for spark generation. The module controls the timing of the ignition spark during the startup sequence. Proper signal and spark generation support reliable pilot ignition.
Ignition System Integration:
Works with the pilot assembly, gas valve, flame-sensing components, and oven controls during burner startup. The module initiates the spark sequence when heating is requested and supports the transition toward burner operation after pilot ignition.
Replacement Guidelines:
Replace the Oven Spark Module if it is damaged, fails to generate reliable ignition, operates intermittently, or no longer provides proper pilot ignition control. The part number 37061, 1/2" × 52" configuration, 120V voltage rating, 50/60Hz frequency, and AK50 designation should be verified before replacement to ensure the correct spark module is selected. Replace the module if deterioration affects ignition response, electrical connection, spark operation, or normal oven operation.
Common Failure Symptoms:
- Spark ignition does not operate normally.
- Pilot ignition becomes intermittent or inconsistent.
- Oven ignition sequence does not proceed as expected.
- Module shows visible physical damage.
- Burner ignition does not respond normally to the ignition-control sequence.
Equipment Application:
Verify that IMPERIAL part number 37061 matches the equipment documentation before purchasing. Confirm the applicable oven or range configuration, intermittent pilot ignition control specifications, and manufacturer parts information. Imperial documentation lists 37061 as an intermittent pilot ignition control for applicable equipment configurations.
Technical Specifications:
Brand: Imperial
Part Number: 37061
Component Name: Spark Module / Intermittent Pilot Ignition Control
Equipment Type: Commercial oven
Connection Specification: 1/2" x 52"
Voltage: 120V
Frequency: 50/60Hz
Step1: Turn off the power to the oven before starting.
Step2: Locate the old spark module near the pilot or ignition system.
Step3: Disconnect all wiring and remove mounting screws.
Step4: Install the new module in the same position.
Step5: Reconnect wiring securely and ensure proper alignment with the pilot.
Step6: Restore power and test for consistent ignition of the burner.
-
What is the purpose of the ignition module?
The ignition module serves as a crucial component in the ignition system of appliances, ensuring reliable and consistent ignition for efficient cooking operations.
-
How does the ignition module improve appliance performance?
By providing accurate ignition control, the ignition module enhances the reliability of appliances, leading to more consistent and efficient cooking processes.
-
What maintenance is required for the Imperial 37061 Spark Module?
Inspect the spark module and wiring for damage, loose connections, or corrosion. Ensure electrode gaps are correct and free of debris. Test ignition cycles to confirm the pilot lights consistently and the module triggers sparks reliably.
-
What are the common issues with the Imperial 37061 Spark Module?
- Intermittent or failed ignition of the oven pilot.
- Sparks occurring irregularly or not at all.
- Module overheating or tripping circuit breakers.
- Electrical arcing at the electrodes.
-
What are common issues with the Imperial 37061 Spark Module?
- Pilot failing to ignite consistently.
- Sparking delayed.
- Module overheating or shutting down.
- Electrical connection faults are causing misfires.
-
What is the function of the Imperial 37061 spark module?
It provides electronic control for spark generation during the intermittent pilot ignition sequence.
-
What can cause the spark module to stop producing a spark?
Electrical connection problems, control-signal issues, damaged wiring, or internal module failure can interrupt spark generation.
-
How does the spark module support burner startup?
It generates the required ignition output to establish the pilot flame before the burner proceeds through its normal startup sequence.
-
Can electrical supply problems affect spark module performance?
Yes. Electrical supply conditions outside the module's specified requirements can affect ignition operation and spark generation.
-
What are common signs of an ignition control problem?
No spark, repeated failed ignition attempts, inconsistent pilot ignition, and interrupted burner startup can indicate an issue with the ignition control system.
