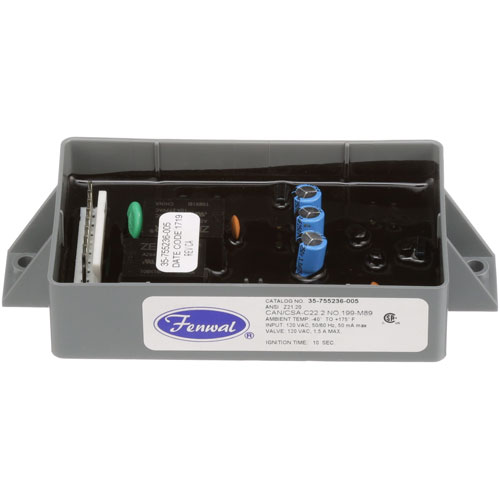

Southbend 1190642 Oven Broiler Ignition Module 120 VAC 50/60Hz

SKU: 1190642 1-1190642 Brand:
Southbend
Availability:
In Stock
(1)
$365.46 Price reduced from $700.12
Save $334.66
Have a Question? +1 (866) 863-0907

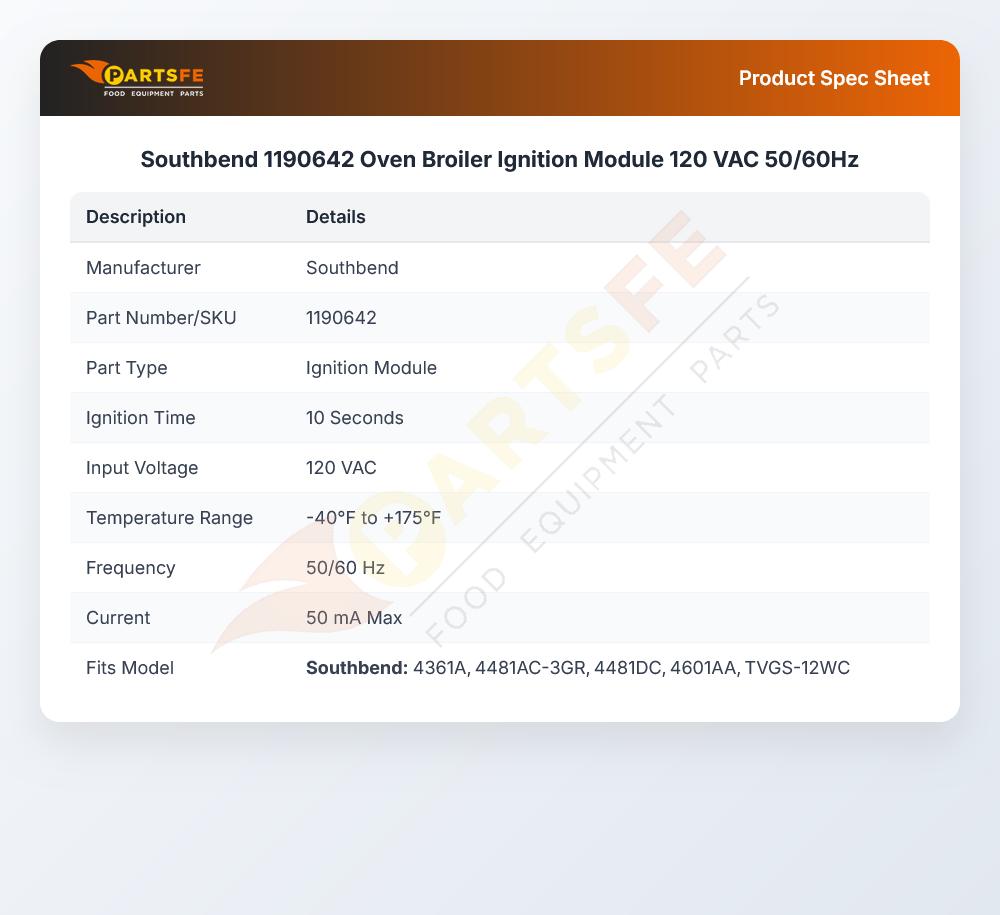

Specifications:

  • Ignition Module,Oven Broiler. Ignition Time 10 Sec.
  • Ambient Temp: -40° To +175°F. Input 120 Vac 50/60Hz
  • 50Ma Max
  • Fits Southbend Models~
  • 400 Series, H4361A, H4361A-1G, H4361A-2G-T, H4361D,
  • H4361D-1G, H4361D-2G-T, H4362A, H4362D, H4363A, H4363D,
  • H4364A, H4364D, H4365A, H4365D, H4366A, H4366D, H4367A,
  • H4367D, H436A-3G-T, H436D-3G-T, Southbend Range, Tvgs/12Wc,
  • Tvgs/12Wc With P36N-Ttt

Description

The Southbend 1190642 Oven Broiler Ignition Module is an component part intended for use in gas, supplied with 120 VAC/ 50/60Hz electrical current. The timed ignition process is what it regulates so as to burn gas safely and effectively each time the oven is switched on. This module has a fast ignition time of about 10 seconds and works well in temperatures between -40°F and +175°F. Some of the advantages include safety is increased through flame sensing technology, the plate heats up through various Southbend models

Dimensions:

  • Weight: 0.65 lbs
  • Length: 6 in
  • Height: 1.75 in
  • Width: 4 in

SOUTHBEND:

SOU1190642

VULCAN HART:

VH1190642

Step1: Disconnect oven power before starting.

Step2: Open the control panel to locate the module.

Step3: Unplug wiring harness from the old module.

Step4: Remove screws and take out the faulty unit.

Step5: Mount the new ignition module securely.

Step6: Close the control panel, reconnect wiring, restore power, and verify ignition sequence.

  • What maintenance is required for the Southbend 1190642 Ignition Module?

    Regularly inspect the module for signs of wear, loose connections, or corrosion. Ensure all wiring is secure and clean. Disconnect power before servicing to prevent electric shock and avoid accidental ignition during handling.

  • What are common issues with the Southbend 1190642 Ignition Module?

    • Intermittent sparking or delayed ignition.
    • Electrical arcing or unusual noises.
    • Burner not responding due to faulty connections.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Easy to Replace
    Maynard —

    Perfect fit, resolved ignition issues instantly
