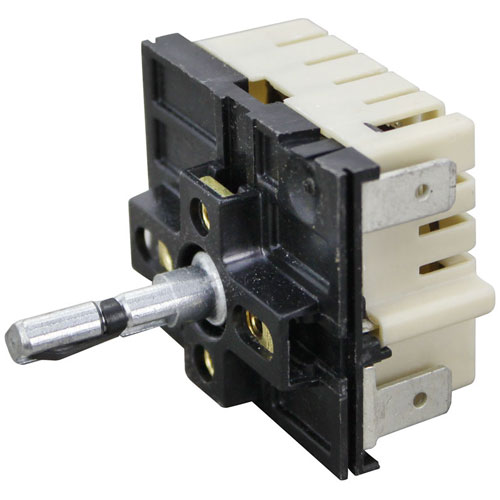

Garland CKG03185-2 Infinite Heat Switch

SKU: CKG03185-2 1-CKG03185-2 Brand:
Garland
Availability:
In Stock
(0)
$69.23 Price reduced from $89.90
Save $20.67
Have a Question? +1 (866) 863-0907

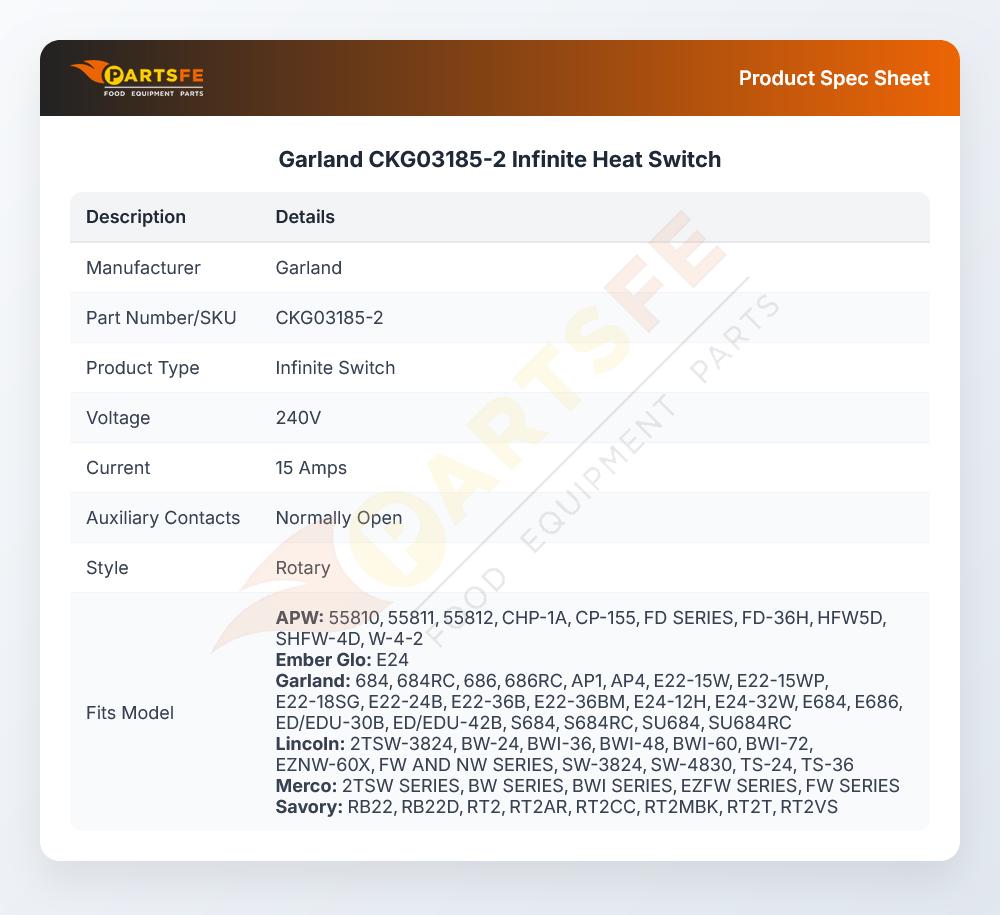

Specifications:

  • 240V/15A )( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • Style( Rotary )~
  • Markings( 1-10 )~
  • Shaft( 7/8" Lg~
  • .187" Flat Down )
  • Garland Grill Knob # 22-1395, Insert # 22-1402
  • Off-Min-2, 3, 4, 5, 6,-Max
  • Dial # 22-1012, Chrome Face
  • Middleby/Toastmaster Dial # 22-1072, Black
  • Ember-Glo & Gen Use Black Knob # 22-1349
  • 2" Dia, Off-Lo-2-6-Hi, Universal Mount, W/ 5 Inserts
  • Garland Range Series: 680.
  • Eagle/Metal Masters Warmer
  • Ember-Glo Broiler Series: E24.
  • Warmer C-240-2.Series: 1220(Cwd,Fwd,Fwe), Bpdht, Cdht,

Description

The Garland CKG03185-2 Infinite Heat Switch is a part that regulates the flow of electricity to heating elements, which can be adjusted between low and high levels in a manner. It works by adjusting the current depending on the position of the knob and allows changing the heat output in small steps. This is intended to be installed in commercial cooking equipment and fits in the control panel to control the temperature settings in a convenient way, and at the same time is adjustable in operation.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 2.5 in
  • Width: 2 in

APW WYOTT:

87053 APW87053

BLOOMFIELD:

WS-50572

CECILWARE:

GML2454 GML245A GML245F L2454 L245A L245F

EMBER GLO:

8425-20 8425-65 842520 EMB8425-20 EMB842520

GARLAND:

1101300 G03185-2 GL1101300 GLG03185-2

LINCOLN:

050378SP

MERCO:

020021 050378 050378SP 20021 MER20021

MIDDLEBY MARSHALL:

15020023 15028727

SAVORY:

12355 14702 41096

STAR MFG:

15020023 15028727 15030023 2E-15028727 2E-Z21562 50572 66-1172 WS-50572

U-LINE:

5502-317 INF240-472 INF240-577

Step1: Disconnect the equipment from electrical power before servicing to prevent shock.

Step2: Remove the control panel cover to access the existing infinite heat switch.

Step3: Label and disconnect all wires from the old switch terminals for accurate reconnection.

Step4: Remove the mounting hardware and install the new heat switch securely in place.

Step5: Reconnect the wires according to the original terminal configuration.

Step6: Restore power and test burner temperature adjustment for smooth and proper operation.

  • What maintenance is required for the Garland CKG03185-2 Infinite Heat Switch?

    Inspect electrical connections regularly for looseness or corrosion. Keep the switch clean and free from grease or moisture. Ensure mounting remains tight to prevent overheating. Always isolate power before servicing to avoid electric shock or damage.

  • What are common issues with the Garland CKG03185-2 Infinite Heat Switch?

    • Overheating during operation due to internal wear or poor contact stability.
    • Inconsistent heat output causing uneven temperatures across settings.
    • Switch failure or no response when turning knob or adjusting heat.
    • Electrical arcing, intermittent power loss or loose connections affecting performance.
