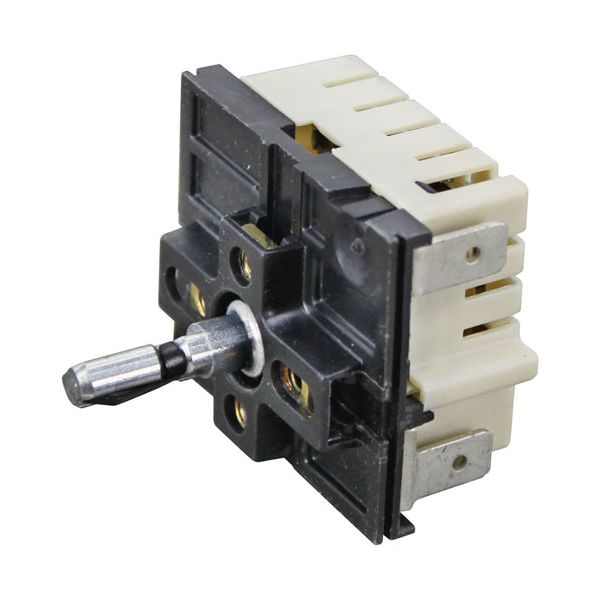

Star Mfg 2E-34593 Range Infinite Switch

Be the first to review this product
Special Price $52.81 Regular Price $62.87
In stock
SKU
2E-34593
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Star Mfg 2E-34593 Range Infinite Switch is a 15 amp rated 240 volt used to control the heating elements by controlling the power levels, enabling the cooking temperatures to be adjusted accurately. It is installed behind the control panel of the range and is directly connected to the burner elements and the control knobs to make it operate accurately. It enables the heating of different cooking operations to be consistent which is essential in ensuring the overall functionality and safety of the electric range.

Dimensions

  • Length: 1.75 In
  • Width: 1.75 In
  • Height: 2.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/s/t/star-mfg-2e-34593-range-infinite-switch-28992-2.jpg

Product Notes

  • Infinite Switch
  • 240V, 15 Amp, B Cam, Horiz. 2 Screw Mount,
  • Flat Up, .187" X 7/8" Shaft, 22-1/2 % At Low.
  • # 22-1073, Grey & Silver T'Stat Knob "Wells"
  • [ 2-3/8" Dia ] [ Off-Lo-2-8-Hi] [Mount .187"] [Flat Up ]
  • Wells Model B-40, B-406, B-44, B-446, B-50, B-506,
  • Ss-206, Ss-206D, Ss-206E, Ss-206Ed, Ss-206Er, Ss-206Erd,
  • Ss276, Mod (All),
  • Waffle Model?
  • For Wells Hot Plate Use # 42-1024
BLOOMFIELD:
STERO:
STA2E-34593, STA2E34593, WEL2E-34593, WEL2E34593
U-LINE:
5500-213, 5502-415, INF240-1018B, INF240-1118B
Reviews
Write Your Own Review
You're reviewing:Star Mfg 2E-34593 Range Infinite Switch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Star Mfg 2E-34593 Infinite Switch?

Ensure the range switch terminals are clean and securely connected to prevent electrical resistance and overheating. Regularly inspect for signs of wear, burn marks, or loose wiring. Keep the surrounding area free from grease and moisture buildup. Always disconnect power before servicing to ensure safety.

What are common issues with the Star Mfg 2E-34593 Infinite Switch?

  • Burner not heating or inconsistent heat output.
  • Knob not adjusting power levels properly.
  • Intermittent electrical connection or flickering operation.
  • Overheating or burnt contacts causing failure.
  • Switch stuck or unresponsive during operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply to the range at breaker before servicing.

Step2: Remove control panel screws and access switch carefully.

Step3: Take note of wiring for reference to ensure correct reassembly.

Step4: Disconnect wires from old infinite switch carefully using proper tools.

Step5: Install new switch matching wiring diagram and terminal positions.

Step6: Secure switch and reassemble control panel tightly.

Step7: Restore power and test burner control operation for safety.
