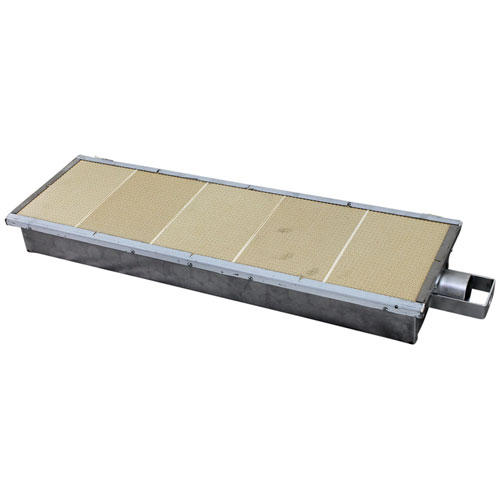

Garland 222150 Infrared Burner 27-1/2" X 8-1/2"

SKU: 222150 1-222150 Brand:
Garland
Availability:
In Stock
(1)
$440.38 Price reduced from $949.10
Save $508.72
Have a Question? +1 (866) 863-0907

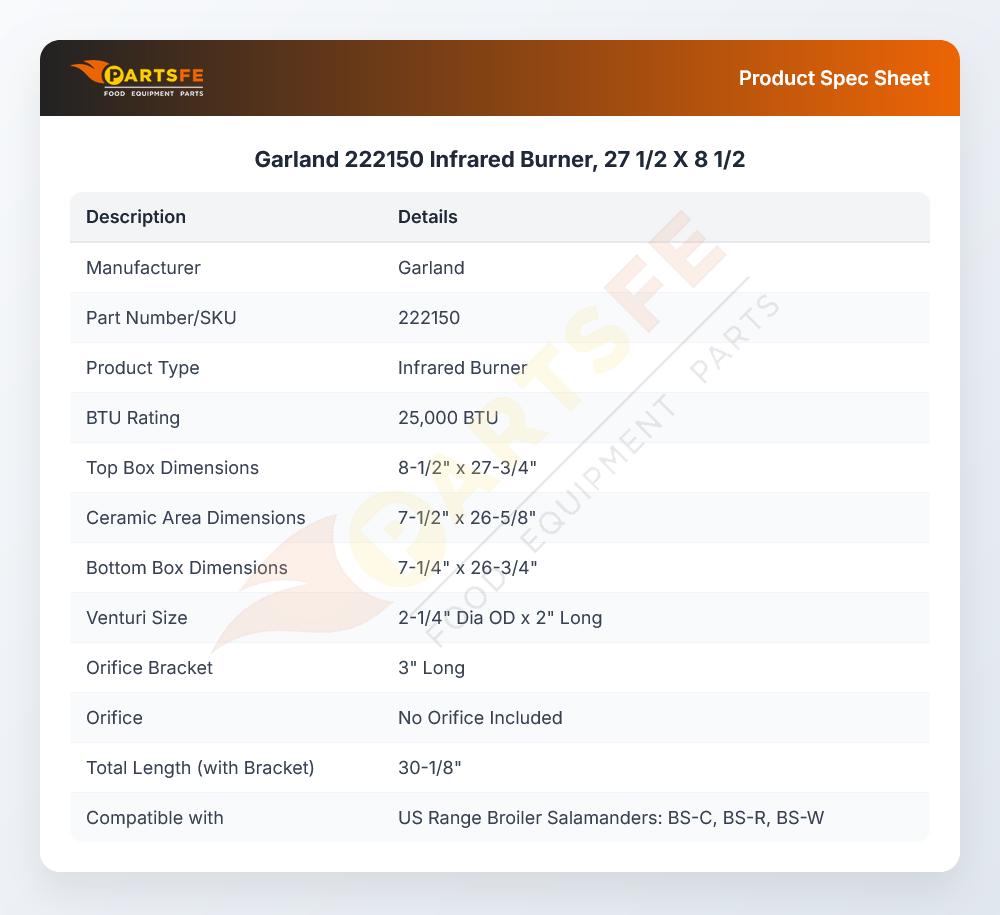

Specifications:

  • Infrared Burner, 25,000 Btu
  • Top Of Box 8-1/2" X 27-3/4"
  • Ceramic Area 7-1/2" X 26-5/8"
  • Bottom Of Box 7-1/4" X 26-3/4"
  • Venturi 2-1/4" Dia Od X 2" Long
  • Orifice Bracket 3" Long, No Orifice
  • Total Length W/ Bracket 30-1/8"
  • Us Range Broiler Salamanders: Bs-C, Bs-R, Bs-W.

Description

The Garland 222150 Infrared Burner 27-1/2" X 8-1/2" is a part that makes use of infrared technology to convert gas energy into radiant heat to cook food. It spreads this heat uniformly on the surface forming uniform high temperatures. The burner is developed to be installed in commercial grills or broilers to fit snugly in the cooking chamber, substituting or upgrading the existing units. It has a long shape and can cover a large space, making it fit on large cooking surfaces. The unit is designed to fit in between normal gas lines.

Dimensions:

  • Weight: 9 lbs
  • Length: 30.5 in
  • Height: 10 in
  • Width: 8.5 in

Step1: Shut off gas and disconnect power supply; ensure cool surface before starting.

Step2: Remove existing burner assembly and inspect manifold and mounting points for damage or corrosion.

Step3: Position new infrared burner onto brackets aligning gas inlet securely firmly seated.

Step4: Reconnect gas line, tighten fittings, and check for leaks with soap solution.

Step5: Restore power, test ignition, verify flame pattern and stable operation safely.

  • What maintenance is required for the Garland 222150 Infrared Burner?

    Regularly inspect the infrared burner for debris, grease buildup, and blocked ports and clean gently to ensure proper flame distribution. Routine maintenance maintains heating efficiency and prevents uneven cooking. Check gas connections for leaks and ensure secure fittings.

  • What are common issues with the Garland 222150 Infrared Burner?

    • Uneven heating or hot spots due to clogged burner ports.
    • Weak or inconsistent flame caused by gas flow restrictions.
    • Burner not igniting because of dirty ignition components.
    • Gas leakage or loose fittings leading to performance instability.
