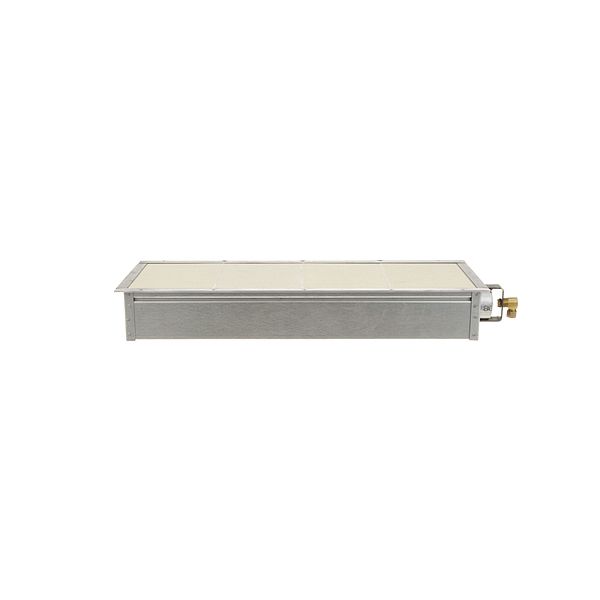

Produces controlled infrared radiant heat for overhead cooking applications in salamander broilers. The Jade Range 1212200000 Infrared Burner converts fuel energy into concentrated radiant heat and directs it toward the cooking area for broiling, browning, melting, and finishing. Its 23-1/4" x 9" dimensions and C40T-5 configuration define the specified burner arrangement within the heating system. Consistent radiant output helps provide the thermal intensity required for surface-level cooking and finishing applications. The burner operates as part of the broiler's heating assembly, where proper positioning and condition support reliable heat transfer during normal operation.
Combustion-to-Radiant Conversion:
Converts the thermal energy produced during fuel combustion into infrared radiant energy across the burner surface. allowing heat to transfer directly to the food surface rather than relying primarily on heated air. This concentrated radiant output supports high-temperature applications such as broiling, browning, melting, and finishing. Consistent combustion and an unobstructed burner surface help maintain the intended relationship between fuel input, thermal output, and radiant heat delivery.
Thermal Stability:
Maintains a consistent radiant heat output as the burner operates through repeated heating cycles. Stable thermal performance depends on consistent combustion, proper burner condition, and unobstructed heat transfer across the active surface. When these conditions are maintained, the burner can provide more uniform thermal exposure across the cooking area and reduce variations in surface heating.
Replacement Guidelines:
Replacement of the Salamander Broiler Infrared Burner if it is cracked, damaged, deformed, corroded, burned, or no longer produces the required infrared heat output. The part number 1212200000, 23-1/4" × 9" dimensions, and C40T-5 configuration should be verified before replacement to ensure the correct infrared burner is selected. Replace the burner if deterioration affects heat generation, burner integrity, gas flow, installation fit, or normal broiler operation.
Common Failure Symptoms:
- Reduced heat output.
- Uneven heating across the cooking area.
- Extended cooking or finishing times.
- Inconsistent browning or melting.
- Visible cracks or surface deterioration.
- Changes in normal radiant heat performance.
Equipment Compatibility:
The Jade Range 1212200000 Infrared Burner is intended for equipment requiring this specific burner configuration. Verify the equipment model, manufacturer part number, burner dimensions, and C40T-5 reference before purchase.
Technical Specifications:
Brand: Jade Range
Part Number: 1212200000
Component Name: Infrared Burner
Appliance Type: Commercial Salamander Broiler
