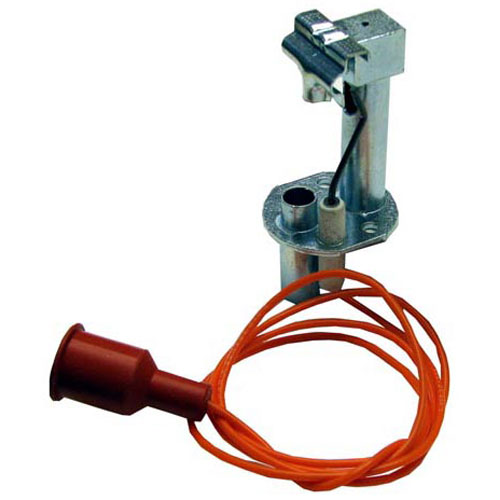

Johnson Controls J989FTW Pilot

SKU: J989FTW 1-J989FTW Brand:
Johnson Controls
Availability:
Out of Stock
(0)
$191.22 Price reduced from $294.64
Save $103.42
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot, Factory # J989Ftw, Tube Size 1/4" Cct,
  • Flame Pattern , W/ Igniter And Wire
  • 1-1/8" Wide Tip, No Orifice Or Sensor, 29" Wire/Spark
  • Plug Boot End,
  • Nat. Orifice Not Included.
  • Lang Oem # 8041-10 .Size .018" X 1/4" Cct
  • Suggest Nat Orifice, .021" X 1/4" Cct # 26-1675
  • Lang
  • Oven Gcco-(A,Ap,Ap-Xd,C,Prsn-Pk,S,Sii,T,T-Xd).
  • Gcco-Ap, Gcco-C, Gcco-Pp, Gcco-Pt, Gcco-Sii, Gcco-T

Description

The Johnson Controls J989FTW Pilot operates by delivering a controlled flame that ignites the main burner when the heating system is activated. It maintains a small continuous flame that operates as the ignition source for the primary unit during equipment operation. This component is installed within the system assembly of compatible heating equipment where it is positioned adjacent to the main burner and connected to the gas supply system. It operates as part of the ignition system and integrates with associated pilot tubing and control components.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 4.38 in
  • Height: 2 in
  • Width: 3 in

LANG:

2J-80201-14 80201-14 LG80201-14

STAR MFG:

2J-80201-14
