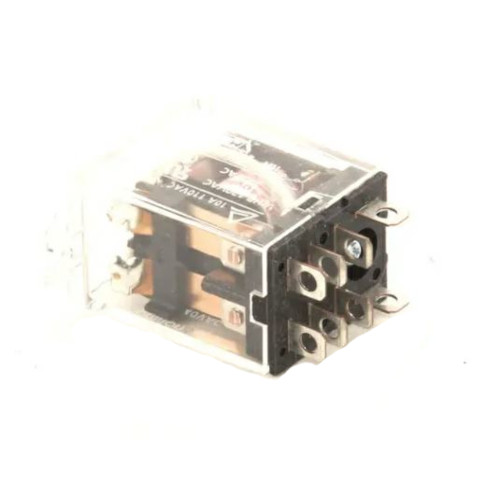

Jackson 5945-111-89-75 Dishmachine Relay 220-240V

SKU: 5945-111-89-75 1-5945-111-89-75 Brand:
Jackson
Availability:
In Stock
(1)
$62.78 Price reduced from $79.95
Save $17.17
Have a Question? +1 (866) 863-0907

Specifications:

  • Type: Relay
  • Voltage: 220-240V

Description

The Jackson 5945-111-89-75 Dishmachine Relay is connected to a control signal at 220-240 V and changes its internal contacts to complete or interrupt power to the load connected. When the control circuit causes the relay coil to energize, the internal contact set will be forced to move to conduct electrical current to the correct component. This relay is fitted in the electrical panel of dishwashing equipment that is compatible with it, attached to a bracket or chassis, and connected to the control harness.

JACKSON:

05945-111-89-75 59451118975

Step1: Disconnect power at breaker check zero voltage before servicing.

Step2: Open control panel and locate old relay in assembly.

Step3: Label and disconnect wiring terminals carefully, tag each wire.

Step4: Remove mounting hardware and extract faulty relay from bracket.

Step5: Install new relay in same orientation and secure firmly.

Step6: Reconnect wiring per labels, ensuring tight connections and avoid looseness.

Step7: Restore power and test dishmachine operation for proper switching ensure proper operation.

  • What maintenance is required for the Jackson 5945-111-89-75 Relay?

    Regularly inspect the relay for signs of overheating, corrosion, or carbon buildup on contact points. Ensure all electrical connections are tight and free from moisture to maintain safe operation. Check for proper switching performance during service cycles.

  • What are common issues with the Jackson 5945-111-89-75 Relay?

    • Relay contact burnout causing failure to switch loads.
    • Intermittent operation due to weak or failing coil.
    • Overheating leading to electrical malfunction.
    • Loose or corroded wiring connections.
    • Sticking contacts causing continuous or failed operation.
