Genuine OEM Part
main product photo

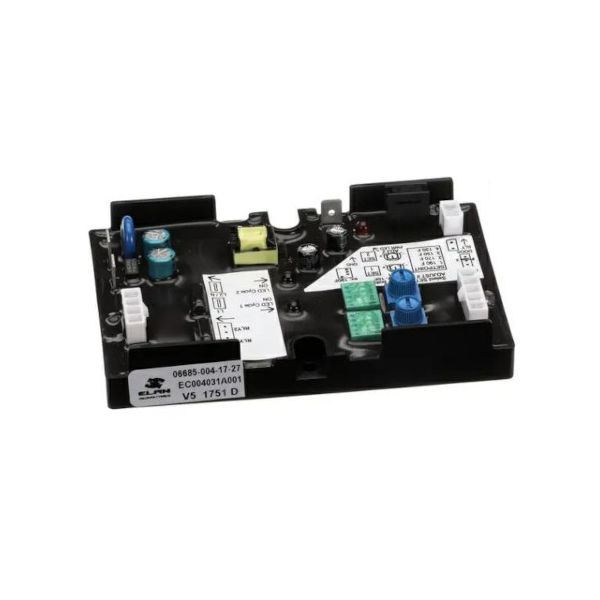

Jackson 6685-004-17-27 Dishmachine Dual Electronic Thermostat

Be the first to review this product
Special Price $414.70 Regular Price $660.95
In stock
SKU
6685-004-17-27
Add to Wish List
Manufacturer:
The Jackson 6685-004-17-27 Dishmachine Dual Electronic Thermostat measures the temperature of a dishwasher by detecting the presence of heat and closing or opening electrical circuits depending on the predefined limits. It operates by monitoring temperature sensors, and when the water or the internal air reaches certain levels, it sends signals that operate heating components or cooling cycles, respectively. This electronic thermostat is mounted inside the compartment of the machine control, but in such a way that the sensing parts of the thermostat are exposed to the internal conditions.

Dimensions

  • Weight: 0 lbs
https://partsfe.com/media/catalog/product/6/6/6685-004-17-27-1.jpg

Product Notes

  • Type: Electronic Dual Thermostat
Write Your Own Review
You're reviewing:Jackson 6685-004-17-27 Dishmachine Dual Electronic Thermostat
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jackson 6685-004-17-27 Electronic Dual Thermostat?

Regularly inspect the thermostat for accurate temperature readings and stable operation during wash and rinse cycles. Ensure electrical connections are tight and free from corrosion or moisture intrusion. Clean surrounding components to prevent dust or grease buildup affecting sensor performance.

What are common issues with the Jackson 6685-004-17-27 Electronic Dual Thermostat?

  • Inaccurate temperature readings causing improper wash cycles.
  • Failure to switch heating elements on or off correctly.
  • Electrical connection faults leading to intermittent operation.
  • Sensor calibration drift over time affecting performance.
  • Moisture damage causing thermostat malfunction.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power and water supply to dishmachine to ensure safety installation.

Step2: Remove access panel and locate existing thermostat assembly.

Step3: Disconnect wiring carefully, noting terminal positions.

Step4: Remove faulty thermostat and mount new dual thermostat securely.

Step5: Reconnect wiring as per schematic and ensure tight connections.

Step6: Restore power and test temperature control for proper operation.

Step7: Inspect for leaks and secure panel before full operation.
