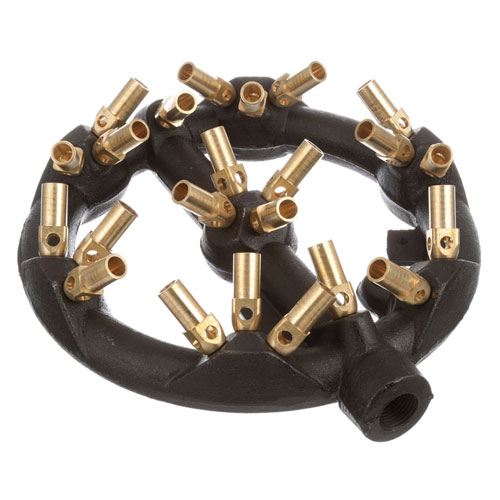

Imperial 1273 Jet Burner 23-Tip 9" DIA CI

A high-output commercial jet burner used in gas cooking systems, this component generates concentrated heat through multiple brass jet openings positioned across a 9-inch cast iron body. It is designed with a 1/2" FPT inlet and configured for LP operation, delivering up to 100,000 BTU for demanding cooking environments that require strong direct flame output. This burner is typically installed in commercial wok ranges and high-heat cooking stations where rapid heat response and focused flame control are required. The cast iron construction helps maintain structural stability during continuous use while supporting even heat distribution across the burner surface. When an existing burner becomes blocked or produces uneven flame patterns, replacing it can restore proper combustion and improve heating output during cooking operations.

Equipment Compatibility:
Common applications for Imperial jet burners include commercial wok ranges, oriental cooking stations, and heavy-duty gas range systems used in restaurant kitchens where high-heat direct flame cooking is required. This Jet Burner 1273 is compatible with commercial equipment from leading brands such as American Range, Imperial, and Rankin-Delux, and more, where high-BTU jet flame output is required for reliable cooking operation.

Brand Compatibility:
Replaces multiple part numbers across various commercial cooking equipment brands, including American Range, Imperial, and Rankin-Delux. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:
Manufacturer: Imperial
SKU: 1273
Product Type: Jet Burner
Diameter: 9"
Material: Cast Iron
Gas Type: LP (Liquid Propane)
BTU Rating: 100,000 BTU
Inlet Connection: 1/2" FPT
Jet Configuration: 23 Brass Jets
Jet Type: LP Jet #26-1870 / Natural Gas Jet #26-1869
Application: Commercial Wok and Range Systems

Key Features:
Produces high-output flame for commercial heavy-duty cooking use. 23 brass jets distribute gas flow evenly across the burner surface. Cast iron construction supports stable operation under continuous heat. 100,000 BTU output suited for wok and high-temperature range cooking. Replacement option for burners showing weak or uneven flame patterns.

Installation feedback often notes that flame distribution becomes more even and heating responds faster after replacement.
