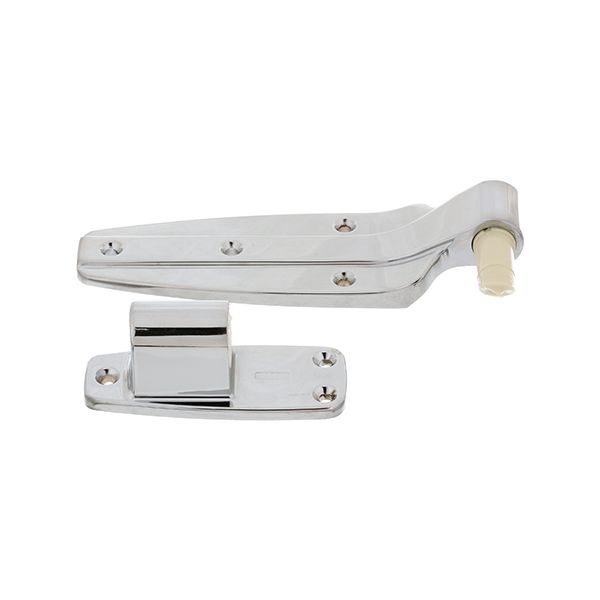

Nor-Lake 071602 Flush Mount Long Strap Hinge
$190.04
In stock
SKU
071602
The Nor-Lake 071602 Flush Mount Long Strap Hinge works by enabling pivotal movement, which allows the doors of compatible refrigeration to be opened and closed consistently. It operates using a long strap design, which spreads the movement along the hinge length, and this assists in keeping the right alignment in the operation. This element is installed on walk-in coolers, freezers that need a flush-mounted hinge to provide a secure door attachment. Designed to fit well and move accurately this hinge is an essential component that ensures access points work with a consistent level of performance in commercial foodservice settings.
Manufacturer:
Dimensions
- Length: 10 In
- Width: 3 In
- Height: 0.25 In
- Weight: 2.9 lbs
Product Notes
- Reversible Cam Rise Lift Off Hinge,
- Die Cast Zinc With A Polished Chrome Finish
- 10-1/16" Long Od. X 5-1/2" Wide Od.
- Strap Has A Plastic Cam Rise Stem In It Which Goes Into The
- Flange., Number "1245" Is Casted On Strap & Flange.
- Flush, No Offset.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- For Replacement Cam Kit Order #28-2410
- Norlake
