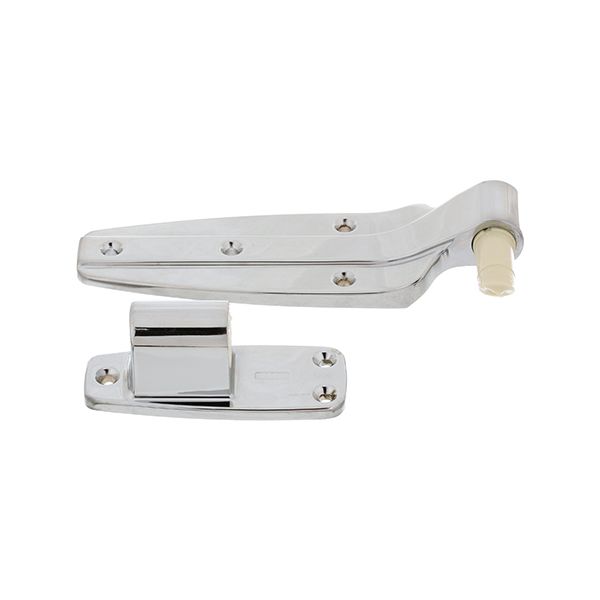

Nor-Lake 083479 Flush Mount Hinge Long Strap 3 Hole
Special Price $71.59 Regular Price $137.19
Out of stock
SKU
083479
The Nor-Lake 083479 Flush Mount Hinge Long Strap 3 Hole works by attaching to the door and frame, which then pivot easily as the door is opened and closed. Its long strap design offers a safe grip and also ensures that the door is well aligned. This hinge is commonly fitted on refrigeration units or other such equipment where a flush mount installation is needed. The three-hole design provides fixation to the surface, which ensures stability in operation. It is designed to fit equipment that requires a high level of accuracy in hardware to ensure proper door operation, and is made to fit commercial requirements.
Manufacturer:
Dimensions
- Length: 10 In
- Width: 3 In
- Height: 0.25 In
- Weight: 2.9 lbs
Product Notes
- Reversible Cam Rise Lift Off Hinge,
- Die Cast Zinc With A Polished Chrome Finish
- 10-1/16" Long Od. X 5-1/2" Wide Od.
- Strap Has A Plastic Cam Rise Stem In It Which Goes Into The
- Flange., Number "1245" Is Casted On Strap & Flange.
- Flush, No Offset.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- For Replacement Cam Kit Order #28-2410
- Norlake
