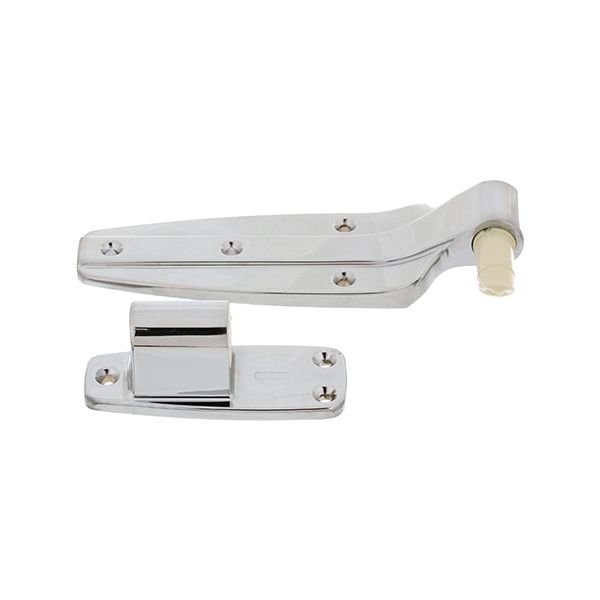

Vulcan Hart 00-430900-001-5 Reversible Cam Rise Lift Off Hinge
Special Price $71.59 Regular Price $137.19
Out of stock
SKU
00-430900-001-5
The Vulcan Hart 00-430900-001-5 Reversible Cam Rise Lift Off Hinge works by allowing easy lifting and removal of the doors to the frame without disturbing their arrangement. It operates by a cam-rise system that raises, the door a bit when opening, enabling easy removal of the hinge pins. This element is commonly mounted on commercial kitchen appliances like ovens, warmers, and the like, and door panels must be removed to be cleaned, or replaced. It has a reversible design that supports both left- and right-hand door designs which makes it flexible when installing.
Manufacturer:
Dimensions
- Length: 10 In
- Width: 3 In
- Height: 0.25 In
- Weight: 2.9 lbs
Product Notes
- Reversible Cam Rise Lift Off Hinge,
- Die Cast Zinc With A Polished Chrome Finish
- 10-1/16" Long Od. X 5-1/2" Wide Od.
- Strap Has A Plastic Cam Rise Stem In It Which Goes Into The
- Flange., Number "1245" Is Casted On Strap & Flange.
- Flush, No Offset.
- To Reverse Remove Cap And Push Out Cam, Replace Cam
- On Other Side Of Strap And Replace Cap.
- For Replacement Cam Kit Order #28-2410
- Norlake
